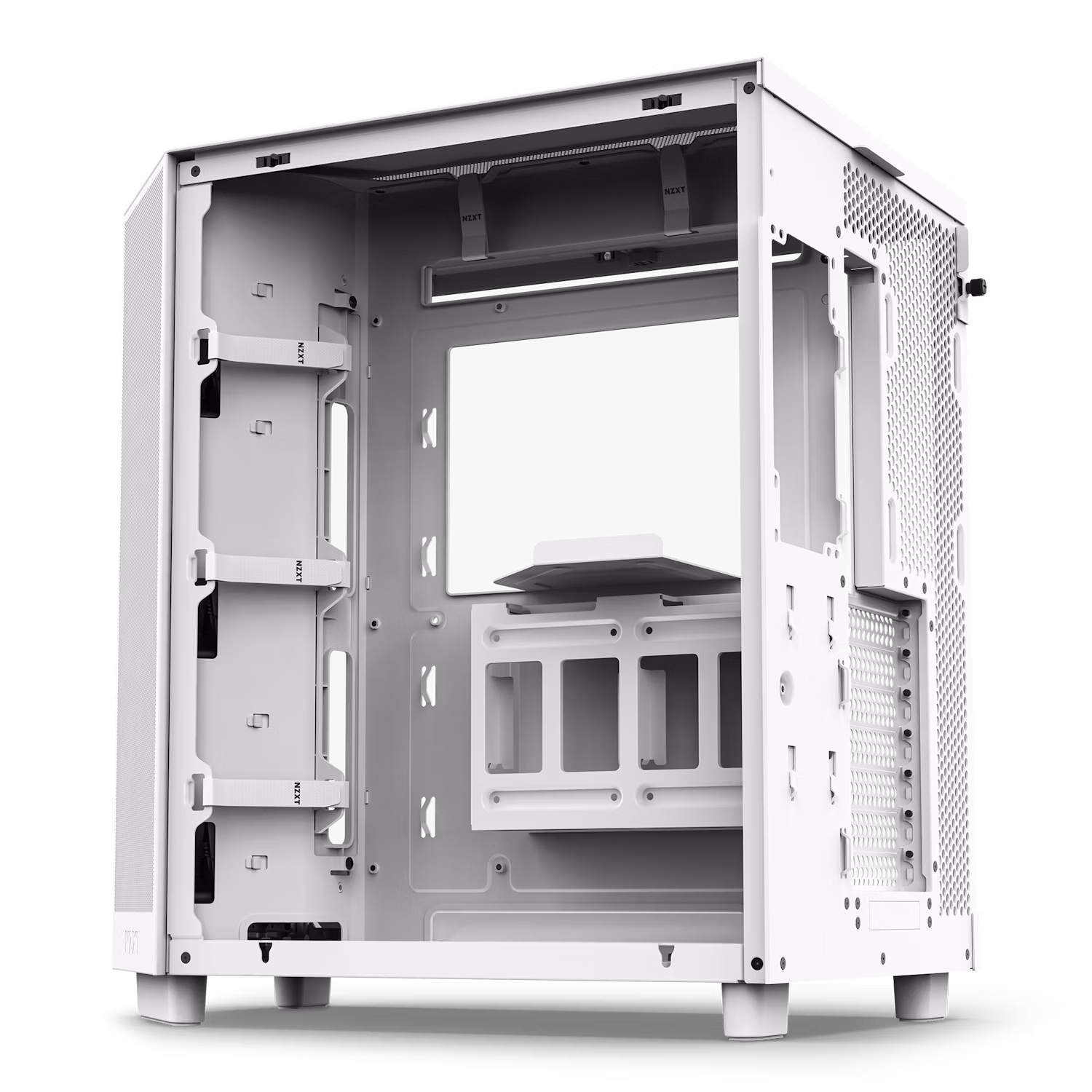

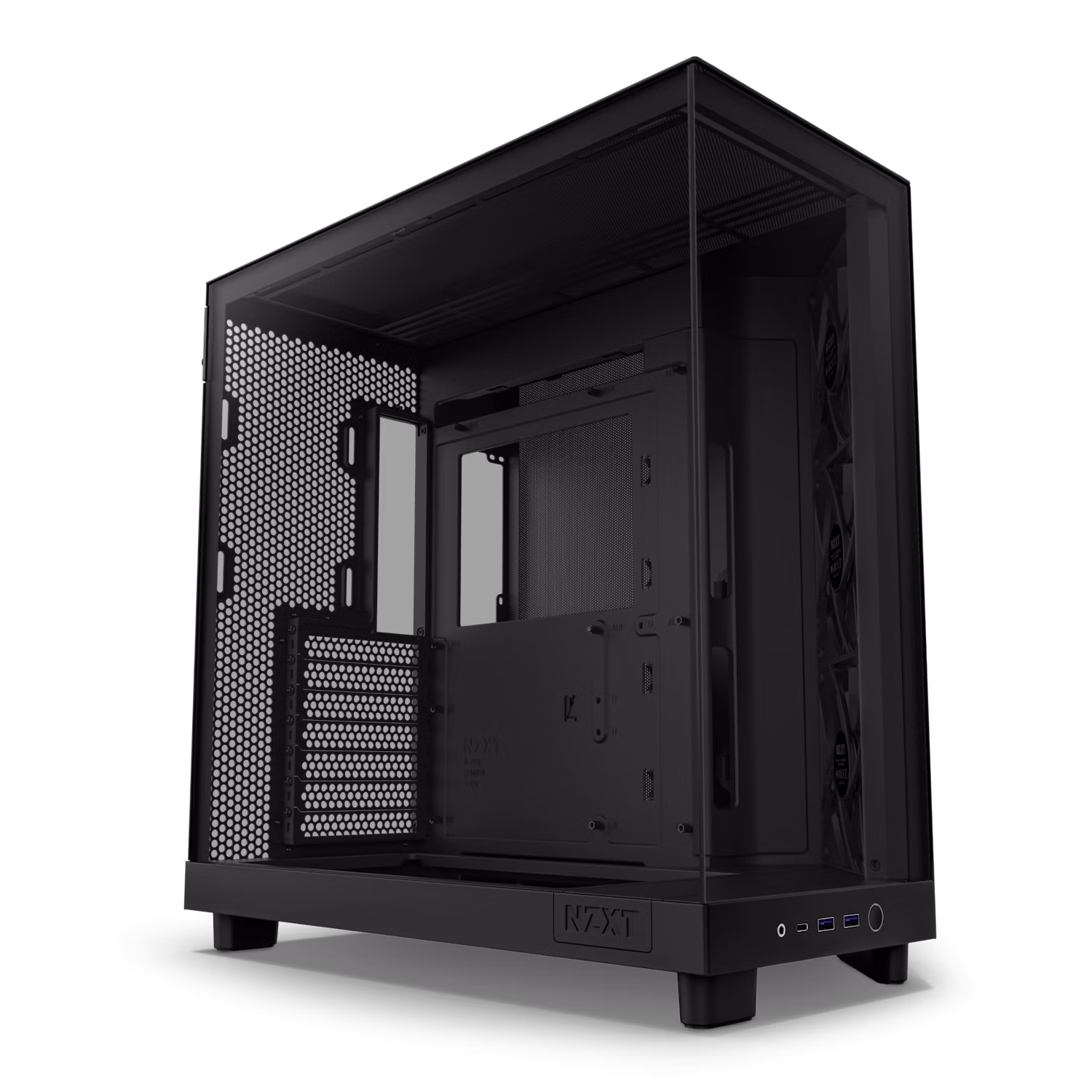

NZXT H6 Flow Compact Dual-Chamber Mid-Tower Airflow Case
Roll over image to zoom in
KSh 0.00
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans (Case Version) positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.
Order Via WhatsApp
NZXT H6 Flow Compact Dual-Chamber Mid-Tower Airflow Case
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow’s panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans (Case Version) positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.
- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Inside the Box
-
H6 Flow1
-
F120Q Airflow (Case Version)3
-
Installation Accessories1
-
User Guide1
Tech Specs
Key Specs
- Motherboard Support:ATX, Micro-ATX, Mini-ITX
- Enclosure Type:Mid-Tower
- Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)
Dimensions
- Height (with feet):435 mm / 17.13 in
- Width:287 mm / 11.3 in
- Depth:415 mm / 16.34 in
- Weight:9.4 kg
Compatibility & Clearance
- CPU Cooler Height:163 mm / 6.42 in
- GPU Length:365 mm / 14.37 in
- PSU Length:200 mm / 7.87 in
- Cable Management:91 mm / 3.58 in
- Top Radiator:30 mm / 1.18 in
Front I/O Ports
- USB 3.2 Gen 1 Type-A:2
- USB 3.2 Gen 2×2 Type-C (20 Gbps):1
- Headset Audio Jack:1
Expansion Slots
- Standard:7
- Vertical:0
Drive Bays
- 2.5″:2
- 3.5″:1
Fan Support
- Front-Right:3 x 120 mm (3x F120Q Case Version included)
- Top:3 x 120 mm / 2 x 140 mm
- Bottom:2 x 140 mm
- Rear:1 x 120 mm
- Filters:High-Performance Mesh
Radiator Support
- Top:Up to 360 mm
- Rear:Up to 120 mm
Fan Specs
- Model:F120Q Airflow Fan (Case Version)
- Speed:1200 ± 240RPM
- Airflow:62.18 CFM
- Static:1.05 mm – H2O
- Noise:25.1 dBA
- Fan Connector:3-pin DC
Additional information
| color | White, Black |
|---|
