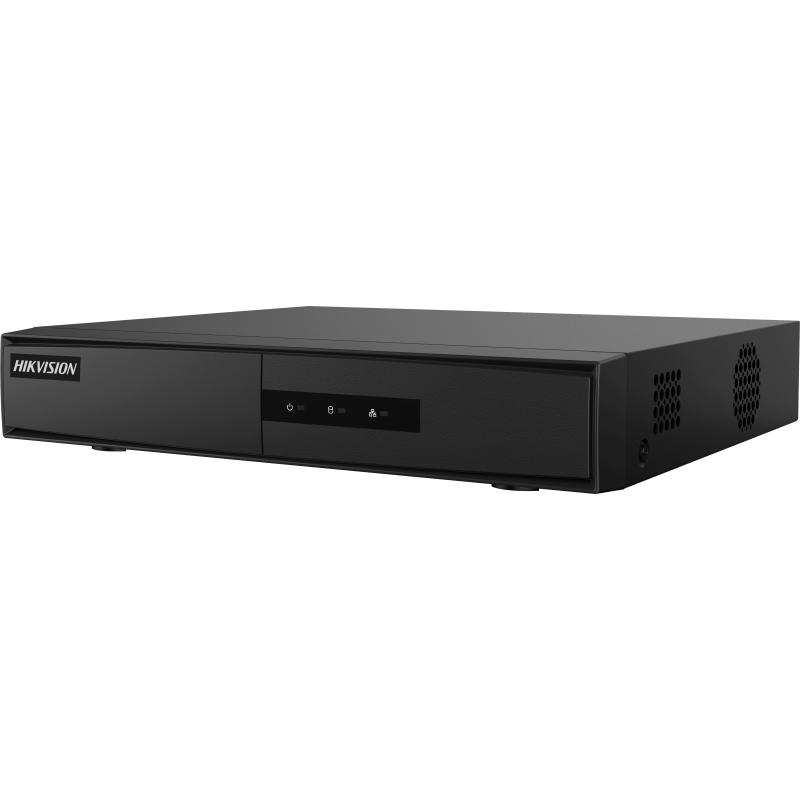

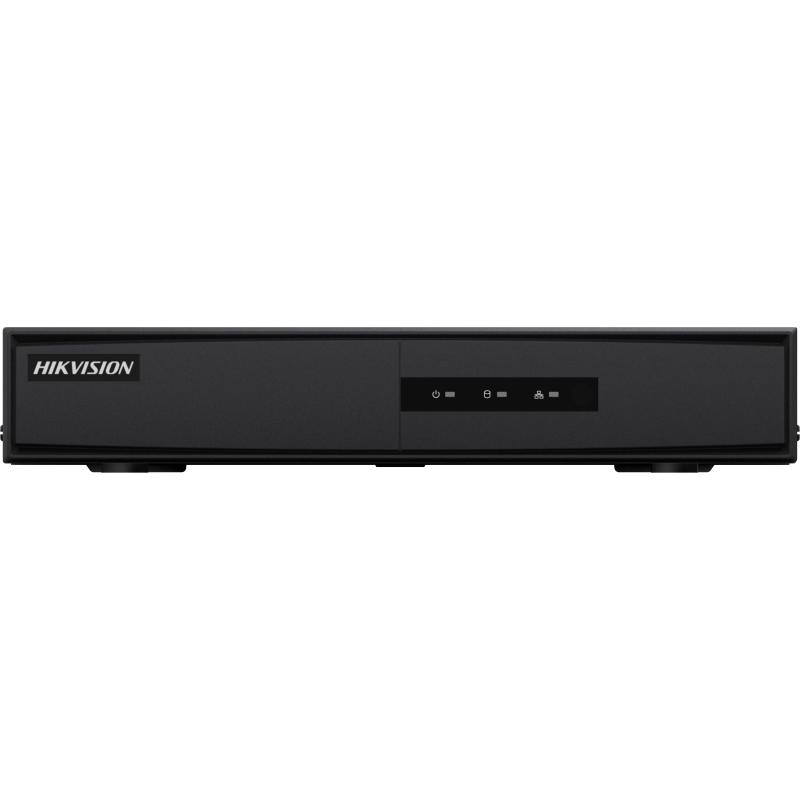

Hikvision DS-7104NI-Q1/4P/M 4-Channel PoE Network Video Recorder

Hikvision DS-7104NI-Q1/4P/M 4-Channel PoE Network Video Recorder

The Hikvision DS-7104NI-Q1/4P/M is a compact, high-value 4-channel NVR designed for small to medium IP camera deployments. With 4 built-in PoE ports, you can connect and power PoE-enabled cameras directly, simplifying installation and reducing wiring overhead.

This NVR supports H.265+, H.265, H.264+, and H.264 video compression, helping to minimize storage consumption while retaining high-quality footage. Its incoming bandwidth of 40 Mbps and outgoing bandwidth of 60 Mbps provide ample capacity for multi-camera recording and remote viewing.

For output, the device offers simultaneous HDMI and VGA connections, allowing live monitoring on both modern and legacy displays. The DS-7104NI-Q1/4P/M supports up to 4-channel 1080p decoding, enabling smooth playback of multiple high-definition streams.

Recording resolution goes as high as 6 MP, allowing for detailed video capture when paired with compatible cameras. Storage is flexible, with 1 SATA interface that supports up to 6 TB of surveillance-grade HDD storage.

Smart features include line crossing and intrusion detection, along with smart search and playback, to help you quickly locate important events in recorded video. The NVR also supports automatic discovery and addition of network cameras once it’s activated, streamlining setup.

Built for reliability, the unit operates at temperatures from –10°C to +55°C and maintains a low power consumption footprint. With support for up to 16 remote connections via Hik-Connect and its intuitive interface, this NVR delivers powerful surveillance capabilities in a small form factor.

Key Features:

• 4-channel IP video input, up to 6 MP per channel

• 4 built-in PoE ports (IEEE 802.3af/at)—power and data over one cable

• H.265+/H.265/H.264+/H.264 compression for efficient storage

• 40 Mbps incoming & 60 Mbps outgoing bandwidth

• Simultaneous HDMI and VGA output for monitoring

• Up to 4-channel 1080p decoding, or 1-channel 6 MP

• 1 × SATA interface, supports up to 6 TB HDD

• Smart detection: line crossing, intrusion

• Smart search + smart playback to find important events quickly

• Remote access: up to 16 connections via Hik-Connect

• Rugged: –10°C to +55°C operating range, compact 1U design
