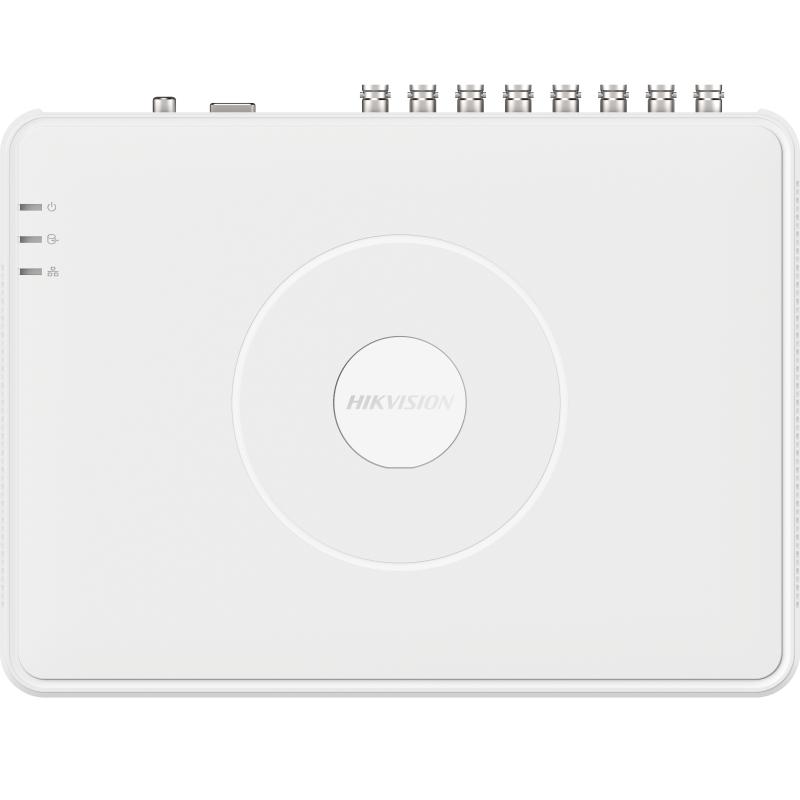

Hikvision DS-7108HGHI-M1 – 8-Channel Mini 1U Hybrid DVR with H.265 Pro+
KSh 9,800.00KSh 14,000.00 (-30%)
Hikvision DS-7108HGHI-M1 – 8-Channel Mini 1U Hybrid DVR with H.265 Pro+
The Hikvision DS-7108HGHI-M1 is an 8-channel Mini 1U DVR supporting HDTVI/AHD/CVI/CVBS analog inputs and up to 2 IP channels (with hybrid capacity up to 10 channels). Features H.265 Pro+ compression, deep-learning Motion Detection 2.0 (human/vehicle classification), HDMI & VGA simultaneous output, and support for 1 SATA HDD. Ideal for small-business and residential surveillance upgrades.
| Feature | Details |
|---|---|
| Model / Part Number | Hikvision DS-7108HGHI-M1 |
| Video Input | 8-channel analog BNC (HDTVI/AHD/CVI/CVBS) + up to 2 IP channels (total up to 10 channels) |
| Max Encoding Resolution | 1080p Lite at 15 fps (analog); IP up to ~5 MP |
| Video Compression | H.265 Pro+ / H.265 / H.264+ |
| Storage | 1 × SATA interface (up to 4 TB) or per model spec |
| Video Output | 1 × HDMI + 1 × VGA (simultaneous) |
| Network Interface | 1 × RJ-45 10/100 Mbps Ethernet (bandwidth ~72 Mbps) |
| Motion Detection | Motion Detection 2.0 with human & vehicle classification |
| Power Supply/Consumption | 12 V DC, ~1.5 A; ≤ 17 W (without HDD) |
| Operating Temperature | -10°C to 55 °C (14 °F to 131 °F) |
| Dimensions (W × D × H) | ≈ 200 × 200 × 48 mm (7.9″ × 7.9″ × 1.9″) |
| Weight | ≤ 1 kg (without HDD) |
| Warranty | Region-dependent limited hardware warranty |
Hikvision DS-7108HGHI-M1 – 8-Channel Mini 1U Hybrid DVR with H.265 Pro+
The Hikvision DS-7108HGHI-M1 delivers efficient surveillance in a compact Mini 1U form factor—offering 8 analog HDTVI/AHD/CVI/CVBS channels plus support for hybrid expansion to 10 channels, including IP. It supports advanced compression (H.265 Pro+/H.265/H.264) to reduce storage and bandwidth costs while maintaining clarity.
Deep – learning based Motion Detection 2.0 brings human and vehicle classification across analog channels, helping reduce false alarms and streamline event searches. With HDMI and VGA simultaneous outputs, integration with monitoring solutions is easy. Whether upgrading an existing analog system or migrating to hybrid use, the DS-7108HGHI-M1 is a versatile solution for home and SME applications.
Key Features
-
8-channel analog input + up to 2 IP channels (hybrid up to 10 channels total)
-
H.265 Pro+/H.265/H.264 video compression for reduced storage demands
-
Motion Detection 2.0 with human/vehicle classification
-
HDMI + VGA simultaneous output for display flexibility
-
Mini 1U chassis ideal for compact installations
-
Supports 1 SATA HDD for local storage
