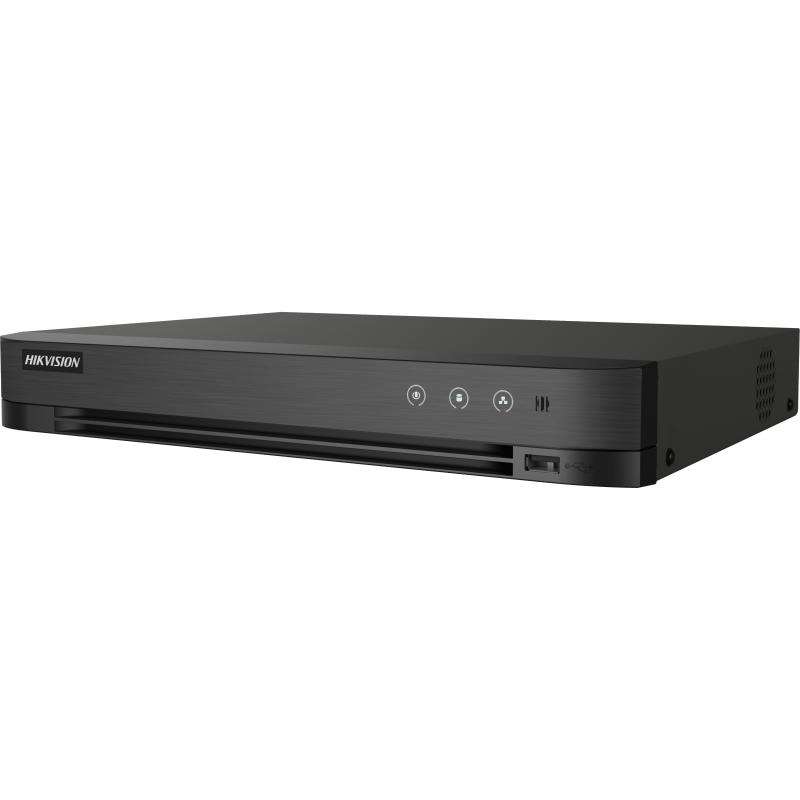

Hikvision DS-7108HQHI-M1/S – 8-Channel 1080P Mini 1U H.265 AcuSense DVR

Hikvision DS-7108HQHI-M1/S – 8-Channel 1080P Mini 1U H.265 AcuSense DVR

The Hikvision DS-7108HQHI-M1/S is a high-performance, compact 1U DVR equipped to handle both legacy analog and modern IP surveillance systems. With support for 8 analog BNC channels and up to 12 IP channels (max 6 MP resolution) via Enhanced IP mode, it provides flexibility for hybrid setups.

Advanced analytics features include deep-learning-based human and vehicle classification via Motion Detection 2.0 and perimeter protection for up to 4 channels. These help minimize false alarms and elevate system intelligence.

Compression is handled using H.265 Pro+/H.265/H.264+/H.264 standards to reduce storage and bandwidth needs while maintaining quality.

With HDMI and VGA simultaneous output, remote connection support, and a single SATA interface (supporting up to ~10 TB), this DVR is well-suited for retail, small businesses, or branch offices in Africa and beyond.

Key Features

• 8 analog BNC inputs (HDTVI, AHD, HDCVI, CVBS) + up to 12 IP channels (via Enhanced IP mode)

• Deep-learning analytics: human/vehicle classification, perimeter protection, facial detection

• H.265 Pro+ / H.265 / H.264+ / H.264 video compression

• Hybrid input flexibility for analog & IP cameras (up to 6 MP IP)

• Simultaneous HDMI and VGA outputs

• Compact mini 1U form factor (200 × 200 × 48 mm)

• Energy-efficient with power consumption ≤ 12 W (without HDD)

• Supports up to 10 TB SATA HDD (1 × SATA interface)

• Remote access with bandwidth ~96 Mbps supports up to 64 simultaneous connections.
