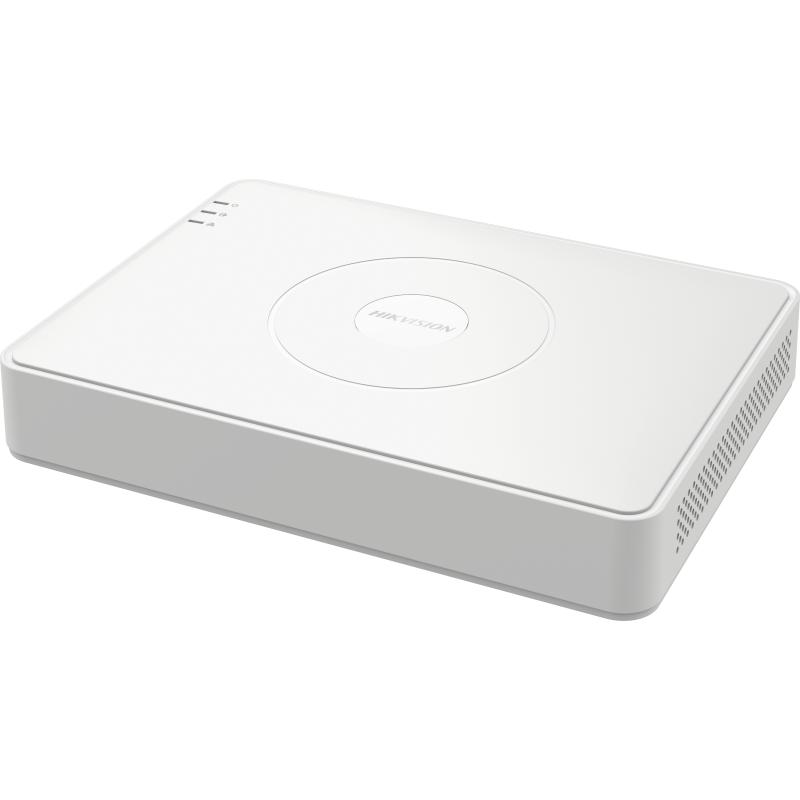

Hikvision DS-7116HGHI-M1/T – 16-Channel Mini 1U Turbo HD DVR with H.265 Pro+
KSh 12,500.00KSh 14,000.00 (-11%)
Hikvision DS-7116HGHI-M1/T – 16-Channel Mini 1U Turbo HD DVR with H.265 Pro+
The Hikvision DS-7116HGHI-M1/T is a 16-channel DVR supporting Turbo HD analog plus up to 18 IP channels, H.265 Pro+ compression, Motion Detection 2.0 (human/vehicle), HDMI & VGA output, and 1 SATA HDD slot—ideal for efficient hybrid surveillance in homes, retail, and small offices.
| Feature | Details |
|---|---|
| Model / Part Number | Hikvision DS-7116HGHI-M1/T |
| Video Input | 16-channel analog BNC (HDTVI/AHD/CVI/CVBS) + IP input up to 18 channels (max 5 MP) |
| Max Encoding Resolution | 1080p Lite / 720p Lite @ 15 fps (analog) |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Storage Interface | 1 × SATA (supports up to ~6 TB per disk) |

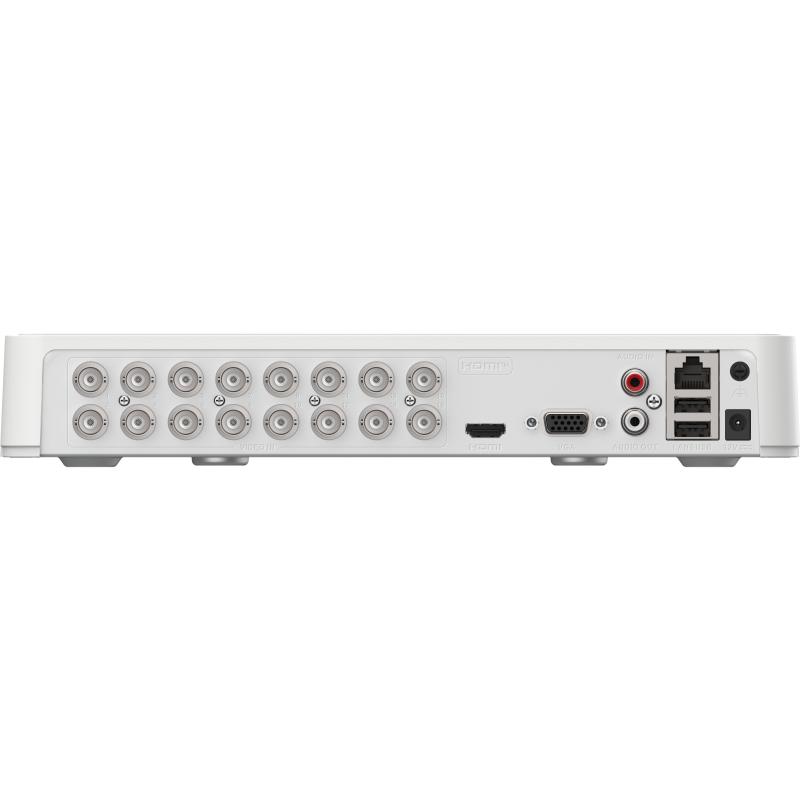

| Video Output | 1 × HDMI + 1 × VGA (simultaneous output) |
| Network Interface | 1 × RJ-45 10/100 Mbps Ethernet; total bandwidth ~96 Mbps |
| Motion Detection | Motion Detection 2.0 with human & vehicle classification |
| Power Supply/Consumption | 12 V DC, 2 A; ≤ ~7 W (without HDD) |
| Operating Temperature | -10°C to 55 °C (14 °F to 131 °F) |
| Dimensions (W × D × H) | 285 × 210 × 48 mm (≈ 11.2″ × 8.3″ × 1.9″) |
| Weight | ≤ 1.8 kg (without HDD) |
| Warranty | Region-dependent limited hardware warranty |
Hikvision DS-7116HGHI-M1/T – 16-Channel Mini 1U Turbo HD DVR with H.265 Pro+
The Hikvision DS-7116HGHI-M1/T delivers powerful hybrid surveillance in a compact 1U form factor. With support for 16 analog Turbo HD channels and up to 18 IP channels, this DVR offers flexible expansion and intelligent detection for evolving security systems.
Featuring H.265 Pro+/H.265 compression technologies, the DS-7116HGHI-M1/T reduces storage and bandwidth demands while maintaining image clarity. Motion Detection 2.0 brings armed analytics that distinguish between human and vehicle objects to reduce false alarms and speed up event search.
With simultaneous HDMI and VGA output along with a single SATA HDD interface (supports high-capacity drives), this DVR is both future-proof and installation-ready for homes, offices, or retail settings.
Key Features
-
16 analog BNC inputs (HDTVI/AHD/CVI/CVBS) plus hybrid support for up to 18 IP channels
-
H.265 Pro+ / H.265 / H.264+ / H.264 video compression for efficient storage and bandwidth use
-
Motion Detection 2.0 with human & vehicle classification for smarter event handling
-
HDMI + VGA simultaneous output for flexible monitoring
-
1 × SATA HDD slot (supports large disk capacity)
-
Compact 1U mini chassis for space-efficient deployment
