Hikvision DS-7204HGHI-M1 – 4-Channel H.265 Pro+ DVR for Turbo HD Analog & IP Input
KSh 5,300.00KSh 7,500.00 (-29%)
Hikvision DS-7204HGHI-M1 – 4-Channel H.265 Pro+ DVR for Turbo HD Analog & IP Input
The Hikvision DS-7204HGHI-M1 provides 4 analog Turbo HD channels plus support for up to 1 IP channel (hybrid up to 5), H.265 Pro+/H.265 compression, deep-learning Motion Detection 2.0 for human & vehicle classification, and one SATA HDD slot (up to 4 TB)—ideal for small-scale surveillance setups.
| Feature | Details |
|---|---|
| Model / Part Number | Hikvision DS-7204HGHI-M1 |
| Video Input | 4-ch analog BNC (HDTVI/AHD/CVI/CVBS) + up to 1 IP-ch (hybrid up to 5-ch total) |
| Max Encoding Resolution | 1080p Lite at ~30 fps for analog; IP up to 1080p |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Storage | 1 × SATA interface, up to 4 TB capacity |

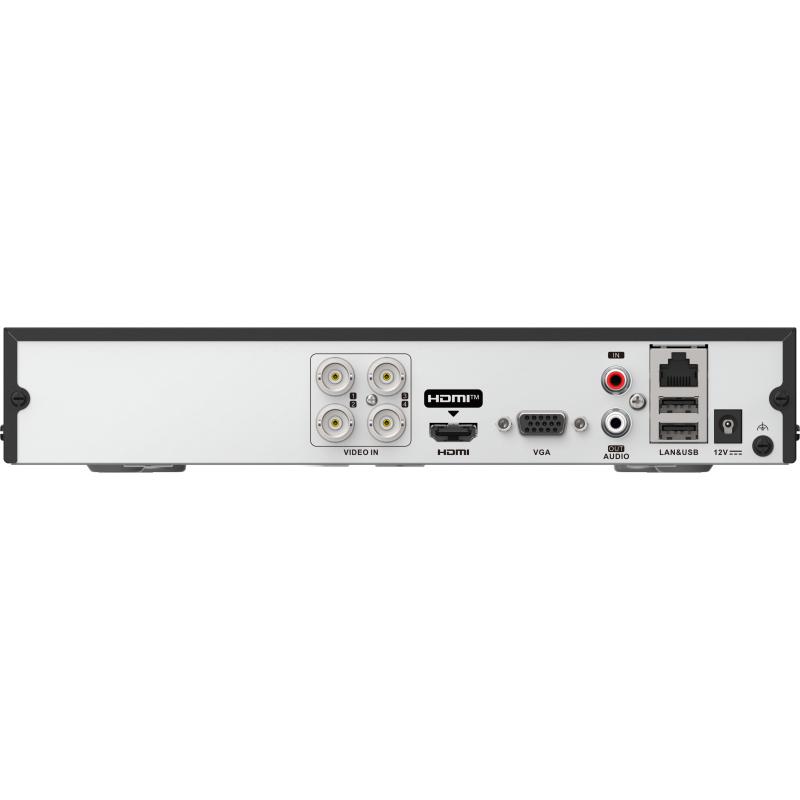

| Video Output | 1 × HDMI + 1 × VGA (simultaneous) |
| Network Interface | 1 × RJ-45 10/100 Mbps Ethernet; total bandwidth ~64 Mbps |
| Motion Detection | Motion Detection 2.0 with human/vehicle classification |
| Power Supply/Consumption | 12 V DC, 1.5 A; ≤ ~16 W (without HDD) |
| Operating Temperature | -10°C to 55 °C (14 °F to 131 °F) |
| Dimensions (W × D × H) | 260 × 222 × 45 mm (≈ 10.2″ × 8.7″ × 1.8″) |
| Weight | ≤ 0.8 kg (without HDD) |
| Warranty | Region-dependent limited hardware warranty |
Hikvision DS-7204HGHI-M1 – 4-Channel H.265 Pro+ DVR for Turbo HD Analog & IP Input
The Hikvision DS-7204HGHI-M1 is designed for compact and efficient video recording solutions. With support for 4 analog channels (HDTVI/AHD/CVI/CVBS) and hybrid compatibility up to 5 total channels including IP, this DVR caters well to both legacy analog installations and migration toward IP.
It offers H.265 Pro+ and H.265 compression to reduce storage and bandwidth usage without sacrificing quality. Motion Detection 2.0 uses deep-learning algorithms to classify human and vehicle motion, greatly reducing false alarms from environmental movement.
With simultaneous HDMI and VGA outputs, a single SATA HDD slot (up to 4 TB), and support for remote access via Hik-Connect, it makes a highly versatile choice for small offices, retail outlets, or residential systems needing reliable recording and analytics.
Key Features
-
4-channel analog video input (HDTVI/AHD/CVI/CVBS) + up to 1 IP channel (hybrid up to 5 channels)
-
H.265 Pro+ / H.265 / H.264 compression—efficient video storage
-
Deep-learning supported Motion Detection 2.0 (human & vehicle classification)
-
Support for up to 4 TB SATA HDD storage
-
Simultaneous HDMI & VGA video output for monitoring
-
Compact footprint suitable for small installations
