Hikvision DS-7204HGHI-M1/T – 4-Channel Turbo HD 1U H.265 Pro+ DVR
KSh 6,600.00KSh 7,900.00 (-16%)
Hikvision DS-7204HGHI-M1/T – 4-Channel Turbo HD 1U H.265 Pro+ DVR
The Hikvision DS-7204HGHI-M1/T is a 4-channel Turbo HD DVR supporting analog HDTVI/AHD/CVI/CVBS and up to 5 IP channels, with H.265 Pro+/H.265 compression and deep-learning Motion Detection 2.0. Ideal for small installations requiring compact, efficient recording solutions.
| Feature | Details |
|---|---|
| Model / Part Number | Hikvision DS-7204HGHI-M1/T |
| Video Input | 4-channel analog BNC (HDTVI/AHD/CVI/CVBS) + up to 5 IP channels |
| Max Encoding Resolution | 1080p Lite / 720p Lite @ up to fps |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Storage Interface | 1 × SATA (up to 4 TB capacity) |
| Video Output | 1 × HDMI + 1 × VGA (simultaneous) |
| Network Interface | 1 × RJ-45 10/100 Mbps Ethernet; bandwidth ~64 Mbps |
| Motion Detection | Motion Detection 2.0 with human & vehicle classification |
| Power Supply/Consumption | 12 V DC, 1.5 A; ≤ ~16 W (without HDD) |
| Operating Temperature | -10°C to 55 °C (14 °F to 131 °F) |
| Dimensions (W × D × H) | 260 × 222 × 45 mm (≈ 10.2″ × 8.7″ × 1.8″) |
| Weight | ≤ 0.8 kg (without HDD) |
| Warranty | Region-dependent limited hardware warranty |
Hikvision DS-7204HGHI-M1/T – 4-Channel Turbo HD 1U H.265 Pro+ DVR
The Hikvision DS-7204HGHI-M1/T offers a compact, high-efficiency video recording solution designed for smaller surveillance requirements. With support for 4 analog inputs and up to 5 IP channels in hybrid mode, it suits both modern and legacy systems.
Featuring H.265 Pro+/H.265/H.264 compression and deep-learning Motion Detection 2.0 (human & vehicle classification), it reduces storage needs and helps cut down on false alarms.
With simultaneous HDMI and VGA output, SATA storage up to 4 TB, and compact 1U design, the DS-7204HGHI-M1/T merges efficiency, flexibility, and reliability for homes, retail sites, and small office setups.
Key Features
-
4 analog BNC inputs (HDTVI/AHD/CVI/CVBS) + up to 5 IP channels in hybrid mode
-
H.265 Pro+/H.265/H.264 video compression for storage & bandwidth savings
-
Motion Detection 2.0 with human & vehicle classification for smarter analytics
-

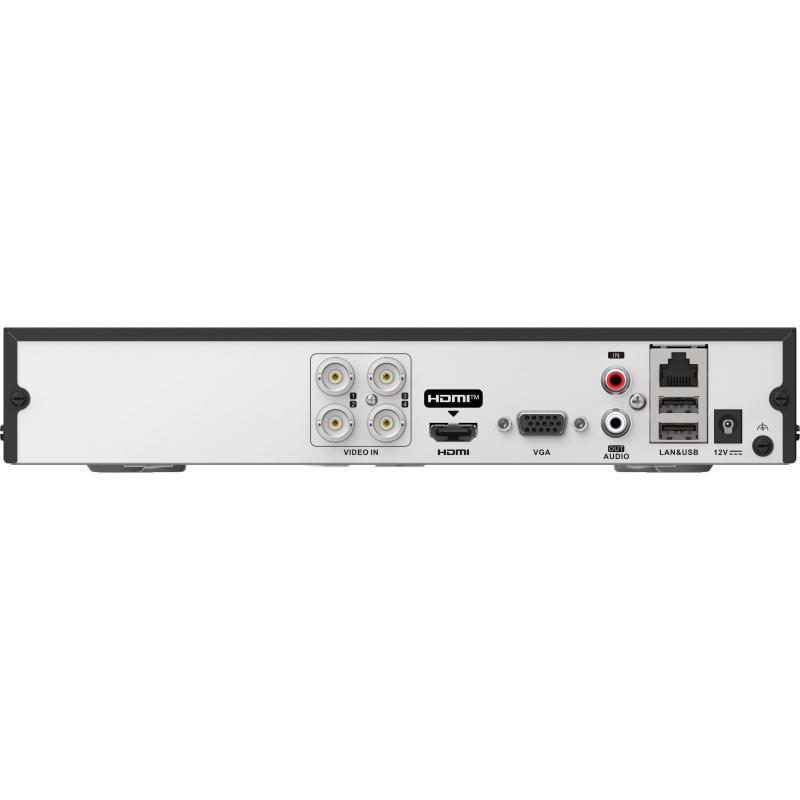

HDMI + VGA simultaneous output for flexible display setup
-
1 × SATA HDD slot (supports up to 4 TB)
-
Compact 1U rack-friendly chassis for space-efficient deployment
