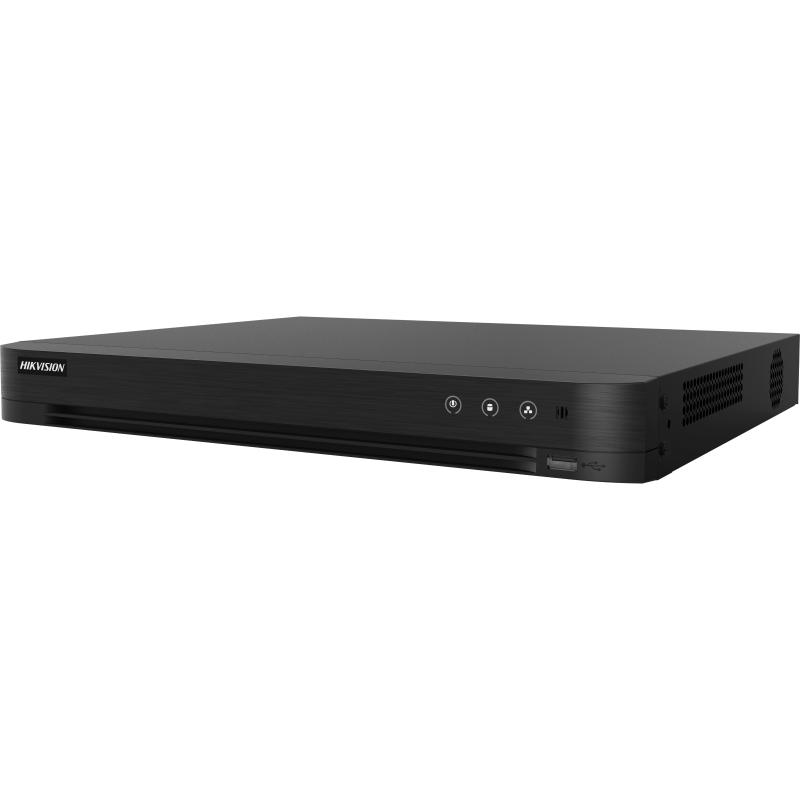

Hikvision DS-7216HGHI-M1 – 16-Channel 720p 1U H.265 DVR with Hybrid IP Support
KSh 10,300.00KSh 15,000.00 (-31%)
Hikvision DS-7216HGHI-M1 – 16-Channel 720p 1U H.265 DVR with Hybrid IP Support
The Hikvision DS-7216HGHI-M1 is a 16-channel Turbo HD DVR with H.265 Pro+, deep-learning human/vehicle Motion Detection 2.0, hybrid analog/IP support (up to 18 IP channels), HDMI & VGA output, and 1 SATA HDD slot—ideal for cost-effective, reliable surveillance in homes, retail, or small business settings.
| Feature | Details |
|---|---|
| Model / Part Number | Hikvision DS-7216HGHI-M1 |
| Video Input | 16-channel analog BNC (HDTVI/AHD/CVI/CVBS) + up to 2 native IP channels (hybrid up to 18 channels) |
| Max Encoding Resolution | 1080p Lite / 720p (analog) |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Storage Interface | 1 × SATA (supports up to 6 TB per HDD) |
| Video Output | 1 × HDMI + 1 × VGA (simultaneous output) |
| Network Interface | 1 × RJ-45 10/100 Mbps Ethernet; supports remote connection up to 128 clients |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification (applies on analog channels) |
| Power Supply/Consumption | 12 V DC, 2 A; ≤ 18 W (without HDD) |
| Operating Temperature | -10°C to 55 °C (14 °F to 131 °F) |
| Dimensions (W × D × H) | 263 × 220 × 48 mm (≈ 10.3″ × 8.7″ × 1.9″) |
| Weight | ≤ 2.2 kg (without HDD) |
| Warranty | Region-dependent limited hardware warranty |
Hikvision DS-7216HGHI-M1 – 16-Channel 720p 1U H.265 DVR with Hybrid IP Support
The Hikvision DS-7216HGHI-M1 packs powerful surveillance features into a compact 1U chassis. With support for 16 analog Turbo HD channels and up to 18 IP channels (when using hybrid mode), this DVR offers flexible expansion for evolving camera systems.
Featuring H.265 Pro+/H.265 video compression, the DS-7216HGHI-M1 reduces storage and bandwidth demands while maintaining high video clarity. Deep-learning based Motion Detection 2.0 brings intelligent human & vehicle classification to minimize false alarms and speed up event searches.
Connectivity is versatile with HDMI and VGA simultaneous outputs and a single SATA HDD interface supporting large-capacity drives. Whether for retail, small office, or home surveillance, this DVR delivers scalable, efficient recording with a future-proof hybrid architecture.
Key Features
-
16 analog video inputs (HDTVI/AHD/CVI/CVBS) plus hybrid support for up to 18 IP channels
-
H.265 Pro+/H.265/H.264+/H.264 video compression for improved storage efficiency
-
Motion Detection 2.0 with intelligent human & vehicle differentiation
-
HDMI + VGA simultaneous output for flexible display setups
-
1 × SATA interface for internal HDD storage (supports large-capacity drives)
-
Compact 1U rack/shelf design for space-efficient deployment
