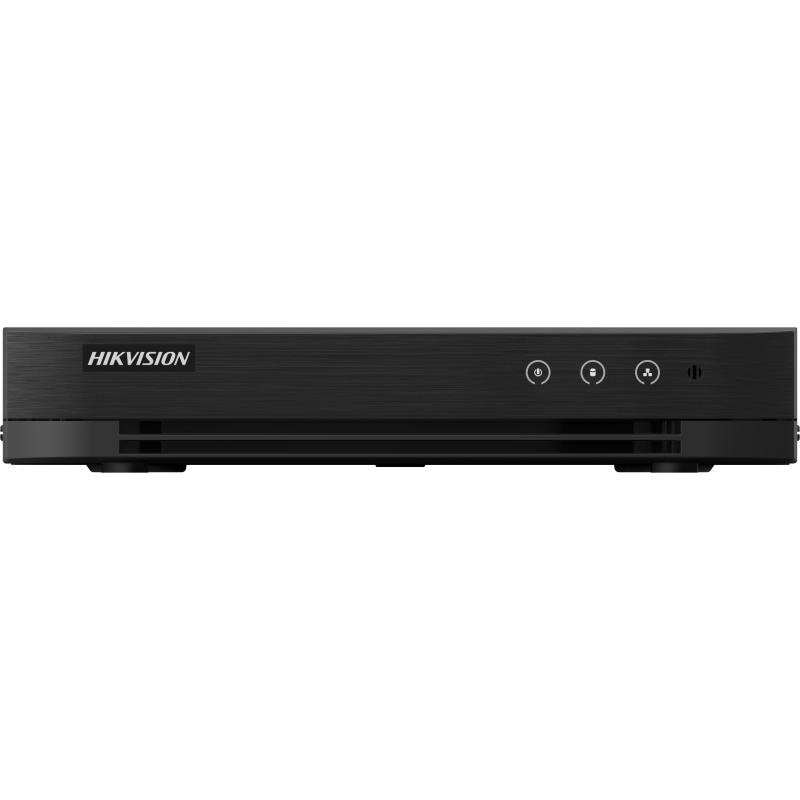

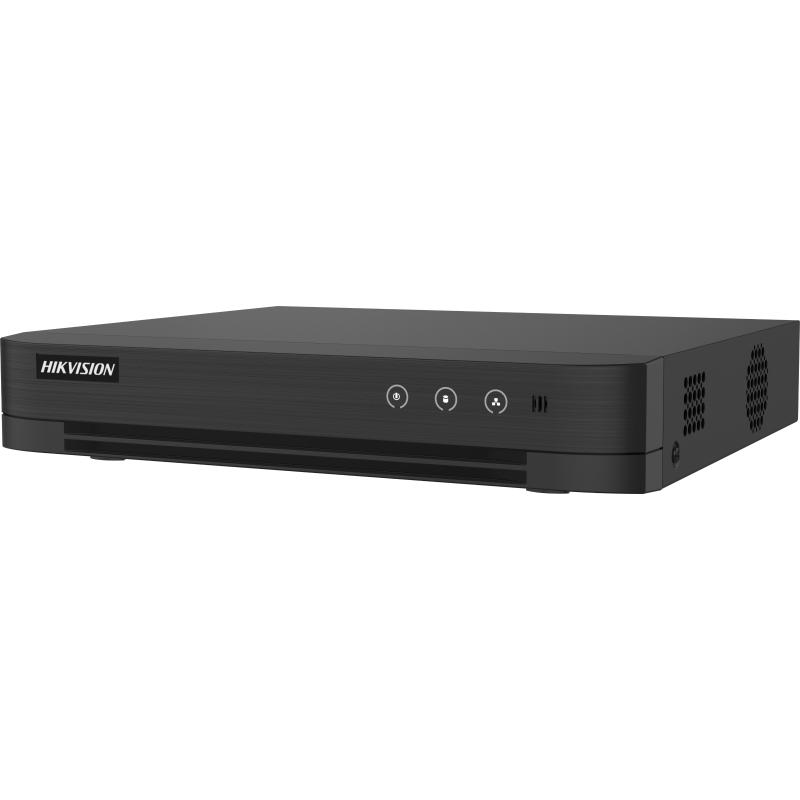

Hikvision DS-7216HGHI-M1/T – 16-Channel 1080p Lite Hybrid DVR with H.265 Pro+
KSh 13,000.00KSh 17,000.00 (-24%)
Hikvision DS-7216HGHI-M1/T – 16-Channel 1080p Lite Hybrid DVR with H.265 Pro+
The Hikvision DS-7216HGHI-M1/T is a 16-channel Turbo HD DVR supporting analog HDTVI/AHD/CVI/CVBS plus up to 18 IP channels (up to 5 MP), featuring H.265 Pro+/H.265 compression, Motion Detection 2.0 with human/vehicle classification, and HDMI + VGA output. Ideal for hybrid surveillance setups in homes and SMEs.
| Feature | Details |
|---|---|
| Model / Part Number | Hikvision DS-7216HGHI-M1/T |
| Video Input | 16-channel analog BNC (HDTVI/AHD/CVI/CVBS) + up to 18 IP camera channels (max 5 MP) |
| Max Encoding Resolution | 1080p Lite / 720p Lite @ ~15 fps (analog) |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Storage Interface | 1 × SATA (supports up to ~6 TB per HDD or higher) |

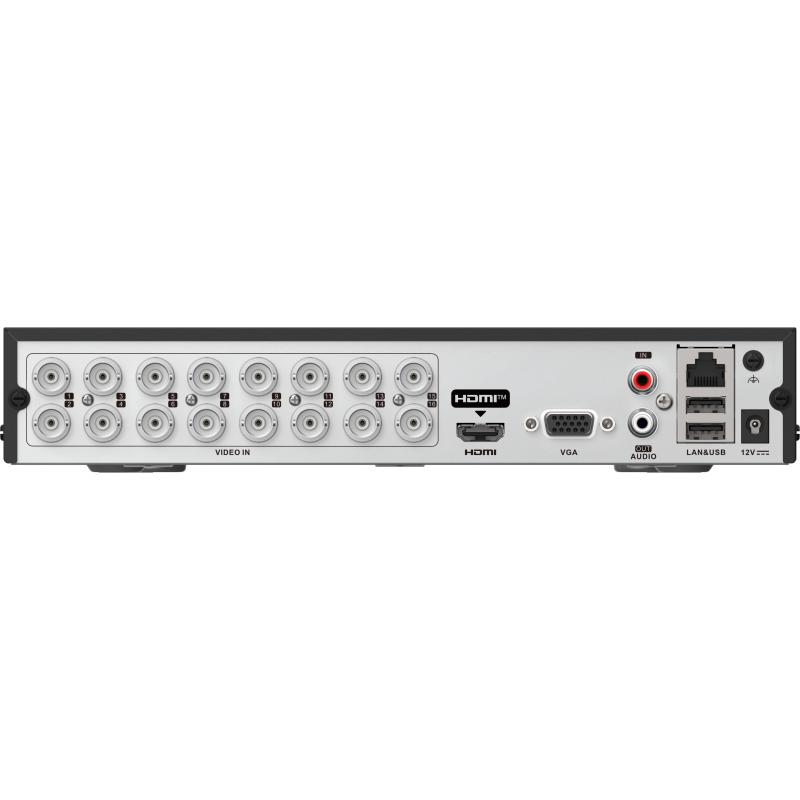

| Video Output | 1 × HDMI + 1 × VGA (simultaneous) |
| Network Interface | 1 × RJ-45 10/100 Mbps Ethernet; Remote connections up to 128 users |
| Motion Detection | Motion Detection 2.0 with human & vehicle classification |
| Power Supply/Consumption | 12 V DC, 2 A; ≤ 18 W (without HDD) |
| Operating Temperature | -10°C to +55 °C (14 °F to 131 °F) |
| Dimensions (W × D × H) | 263 × 220 × 48 mm (~10.3″ × 8.7″ × 1.9″) |
| Weight | ≤ 2.2 kg (without HDD) |
| Warranty | Region-dependent limited hardware warranty |
Hikvision DS-7216HGHI-M1/T – 16-Channel 1080p Lite Hybrid DVR with H.265 Pro+
The Hikvision DS-7216HGHI-M1/T offers robust surveillance in a compact 1U form factor, delivering high channel count and hybrid analog/IP flexibility. With support for 16 analog channels and up to 18 IP channels (up to 5 MP), it handles current needs and future upgrades alike.
Featuring advanced H.265 Pro+/H.265 compression and Motion Detection 2.0 with human & vehicle target classification, the DS-7216HGHI-M1/T reduces storage requirements and false alarms while enhancing operational efficiency.
With HDMI + VGA simultaneous output, 1 SATA interface supporting high-capacity disks, remote accessibility up to 128 connections, and wide-range input compatibility, it’s engineered for homes, retail sites, and small businesses seeking efficient and intelligent video recording.
Key Features
-
16-channel analog BNC input (HDTVI/AHD/CVI/CVBS) plus up to 18 IP camera channels (up to 5 MP)
-
H.265 Pro+/H.265/H.264+/H.264 video compression for storage and bandwidth efficiency
-
Deep-learning Motion Detection 2.0 with human & vehicle classification across analog channels
-
HDMI and VGA outputs simultaneously for flexible display options
-
1 × SATA interface supporting up to 6 TB per disk (or higher depending on variant)
-
Compact 1U chassis (≈ 263 × 220 × 48 mm) designed for space-efficient deployment
