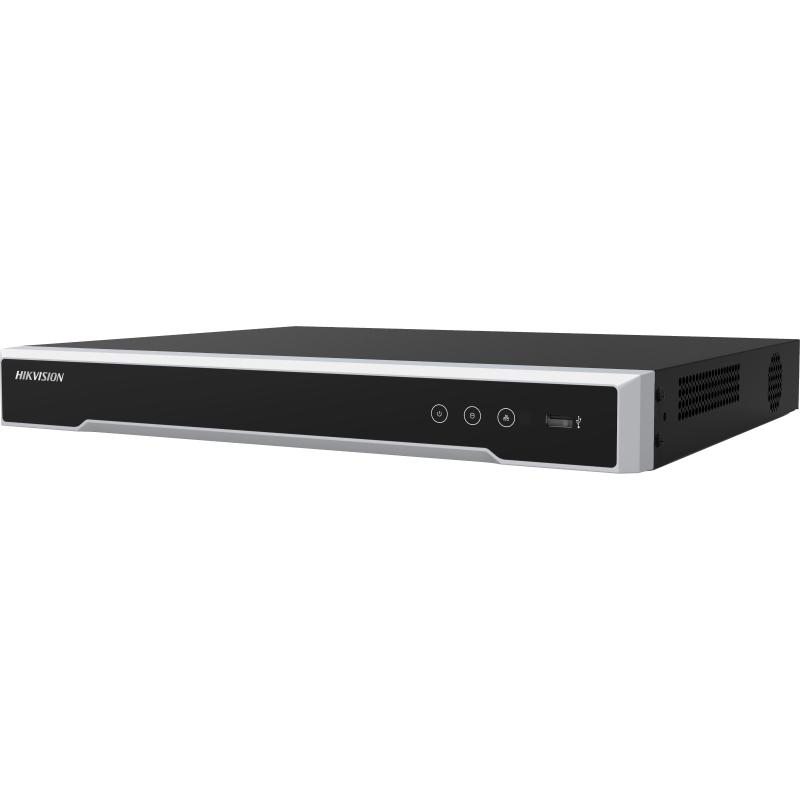

Hikvision DS-7616NI-Q2/16P 16-Channel 4K PoE Network Video Recorder

Hikvision DS-7616NI-Q2/16P 16-Channel 4K PoE Network Video Recorder

The Hikvision DS-7616NI-Q2/16P is a powerful, professional 1U NVR built for large-scale IP camera systems. With 16 built-in PoE ports, it enables seamless plug-and-play installation—simply plug your PoE-enabled cameras in, and they will be powered and recorded without separate power supplies.

This NVR supports H.265+, H.265, H.264+, and H.264 compression, which maximizes storage efficiency while delivering high-quality video. It offers an incoming bandwidth of 160 Mbps and an outgoing bandwidth of 80 Mbps, making it capable of handling high data throughput from numerous high-resolution cameras.

For monitoring, the unit provides 1 × HDMI output capable of 4K (3840 × 2160) resolution and 1 × VGA output, both of which can be used simultaneously—allowing flexible display options.

The decoding capability of this NVR includes 1 channel at 8 MP or 5 channels at 1080p, giving you smooth playback for both high-res and standard streams. It supports 16-channel synchronous playback, so you can review footage from all cameras at once.

Storage-wise, the DS-7616NI-Q2/16P offers 2 SATA interfaces, each supporting large-capacity HDDs for extended video retention.

On the smart side, it features Motion Detection 2.0 and human/vehicle classification, making alerts more accurate and reducing false positives.

Network connectivity is robust with 1 × 1 GbE port and up to 64 remote connections (according to the datasheet).

The NVR is built for reliable operation: it runs on 100–240 VAC, uses ≤ 15 W (without HDD / PoE), and is rated for –10°C to +55°C ambient temperatures.

Key Features:

• 16-channel IP input with 16 built-in PoE ports

• High-efficiency H.265+ video compression

• 160 Mbps incoming / 80 Mbps outgoing bandwidth

• 4K HDMI output + VGA output (simultaneous)

• Decoding: 1 × 8 MP or 5 × 1080p

• 16-channel synchronous playback

• 2 × SATA for large HDD storage

• Motion Detection 2.0 + human & vehicle classification

• 1 × 1 GbE network interface

• Up to 64 remote connections

• Wide operating temperature: –10 °C to +55 °C
