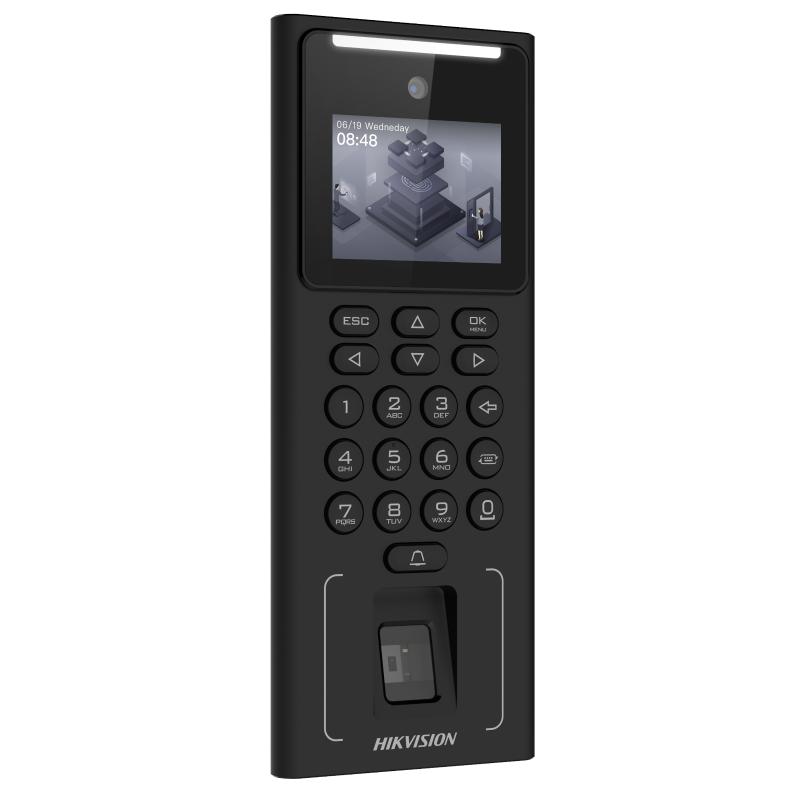

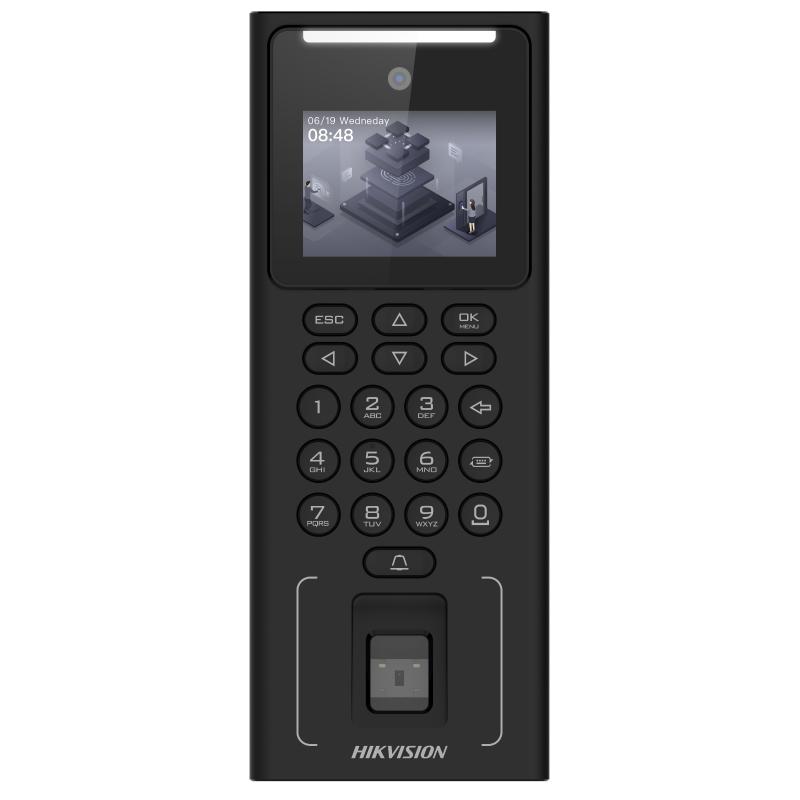

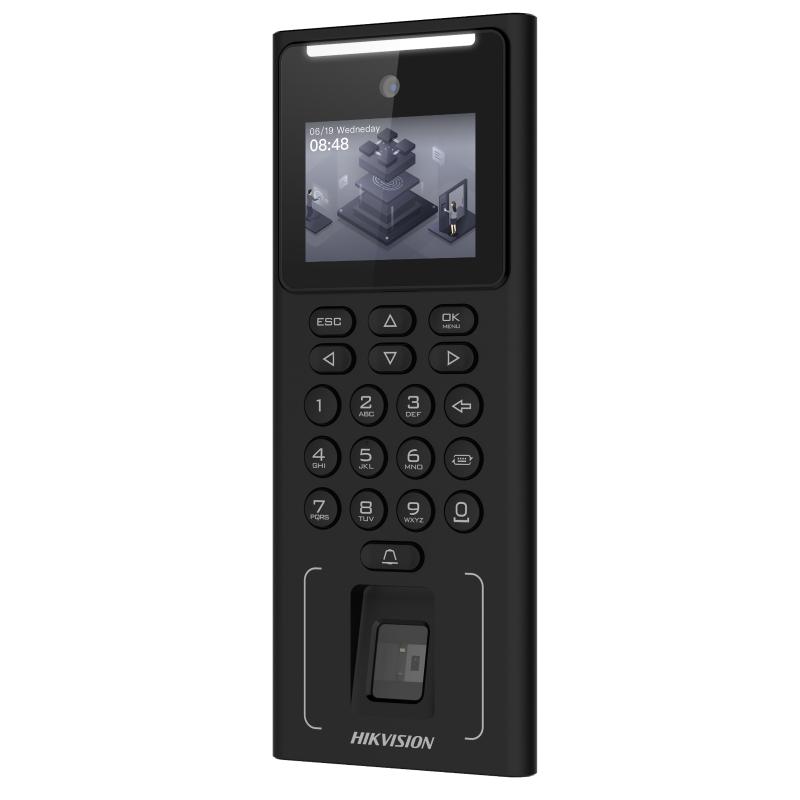

Hikvision DS-K1T321MFWX 500-User Face Recognition Access & Attendance Terminal

Hikvision DS-K1T321MFWX 500-User Face Recognition Access & Attendance Terminal

The Hikvision DS-K1T321MFWX is a cost-effective, value-series face recognition terminal designed for both access control and attendance. Built with a deep learning algorithm, it offers reliable and fast facial recognition—authenticating users in under 0.2 seconds.

It supports multiple authentication modes—face, fingerprint, M1 card, and PIN—making it flexible for different security and user-workflow needs. The device can store up to 500 faces, 3,000 cards, 3,000 fingerprints, and 150,000 event logs.

For usability, it has a 2.4-inch LCD screen and a 2 MP camera lens, with a field of view of HFOV = 25° and VFOV = 43° for accurate recognition. Connectivity options include 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi (AP mode), ensuring flexible deployment.

It also supports RS-485 wiring, lock control, exit button, door contact, and tamper detection, allowing integration with standard access control systems. The terminal runs on 12 V DC and consumes ≤ 6 W, keeping power requirements moderate.

Designed for durability, it operates in a wide temperature range (–10°C to +55°C) and humidity (0-90%, non-condensing), making it suitable for various indoor and semi-exposed environments.

Key Features:

• Fast face recognition: < 0.2 s per user

• Supports 500 face templates, 3,000 cards, 3,000 fingerprints, and 150,000 events

• Multi-authentication: Face / Fingerprint / M1 Card / PIN

• 2.4″ LCD display, 2 MP camera

• Network: Ethernet + 2.4 GHz Wi-Fi

• RS-485, lock/exit/door/tamper I/O

• Low power: 12 V DC, ≤ 6 W

• Language support: English, Arabic, Spanish, Thai, Vietnamese, Russian, Portuguese, Korean, Japanese
