Hikvision DS-K1T344MBFWX-E1 3,000-User Hybrid Face, Fingerprint & Card Access Terminal (IP65)

Hikvision DS-K1T344MBFWX-E1 3,000-User Hybrid Face, Fingerprint & Card Access Terminal (IP65)

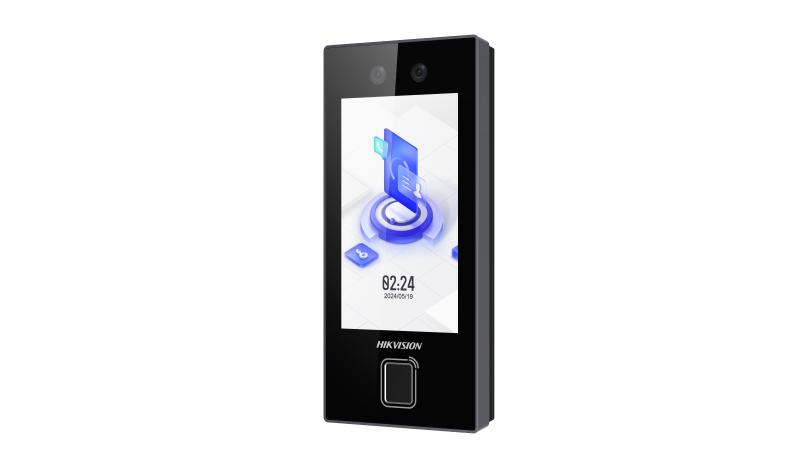

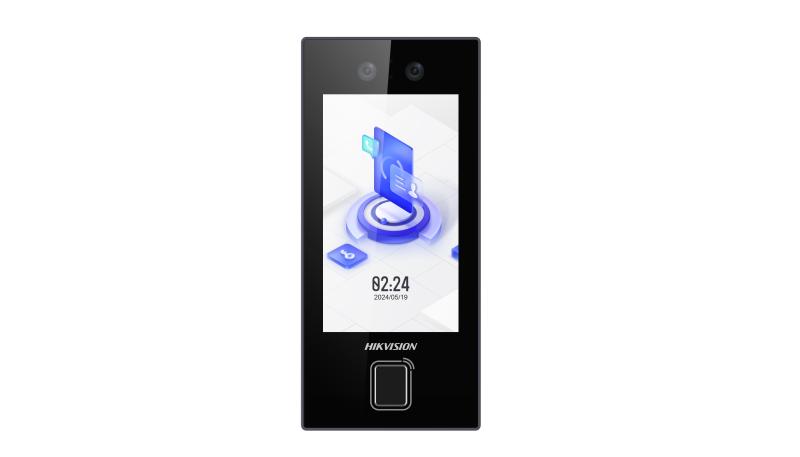

The Hikvision DS-K1T344MBFWX-E1 is a rugged and versatile face-recognition terminal from Hikvision’s Value Series. It’s built for both indoor and outdoor use, with an IP65 rating that protects against dust and water.

Powered by a deep-learning face recognition algorithm, this terminal offers fast recognition (< 0.2 s) with high accuracy (≥ 99%) over a distance of 0.3 m to 1.5 m. It supports hybrid authentication: face, fingerprint, M1 card (13.56 MHz), and PIN—giving flexibility for different access scenarios.

On the user capacity side, it holds up to 3,000 face templates, 3,000 fingerprints, 3,000 cards, and 150,000 event logs, making it suitable for medium-to-large deployments. The device has a 4.5″ capacitive LCD touchscreen (480 × 854) and a dual 2 MP wide-angle camera to capture faces clearly.

For integration, it supports Ethernet (10/100 Mbps) and PoE (IEEE802.3at), or 12 V DC power. When using PoE, the device can also power a door lock (12 V DC / 1 A).  It has standard access control I/O: RS-485, Wiegand, lock, exit button, door contact, tamper, and USB.

Built for harsh environments, it operates in temperatures from –30°C to +60°C with 10–90% humidity (non-condensing). For security, it supports face anti-spoofing and QR code recognition and also offers two-way audio via a connected station or client software.

Key Features:

• Hybrid authentication: Face + Fingerprint + M1 Card + PIN

• Up to 3,000 users per mode: faces, fingerprints, cards

• Fast face recognition: < 0.2 s / user; ≥ 99% accuracy

• 4.5″ touch LCD and dual 2 MP cameras for reliable enrollment

• PoE or 12 V DC power—PoE can power door lock

• I/O: RS-485, Wiegand, Lock, Exit, Door Contact, Tamper, USB

• Event capacity: 150,000 logs

• IP65 housing for outdoor resilience

• Operating environment: –30 °C to +60 °C, 10–90% humidity

• Security features: Face anti-spoofing, QR code recognition

• Supports mobile web/PC web configuration
