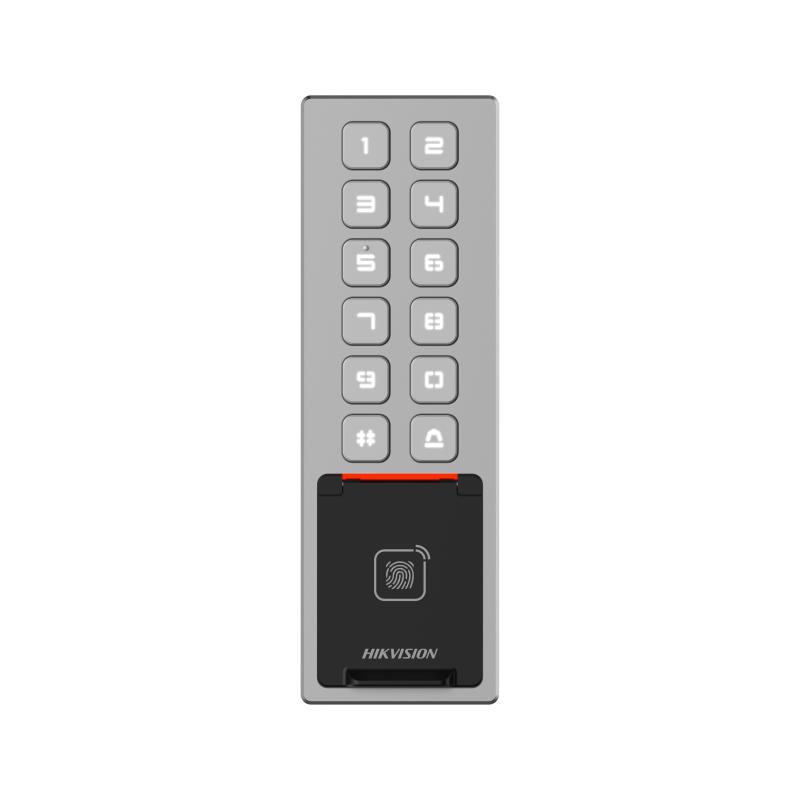

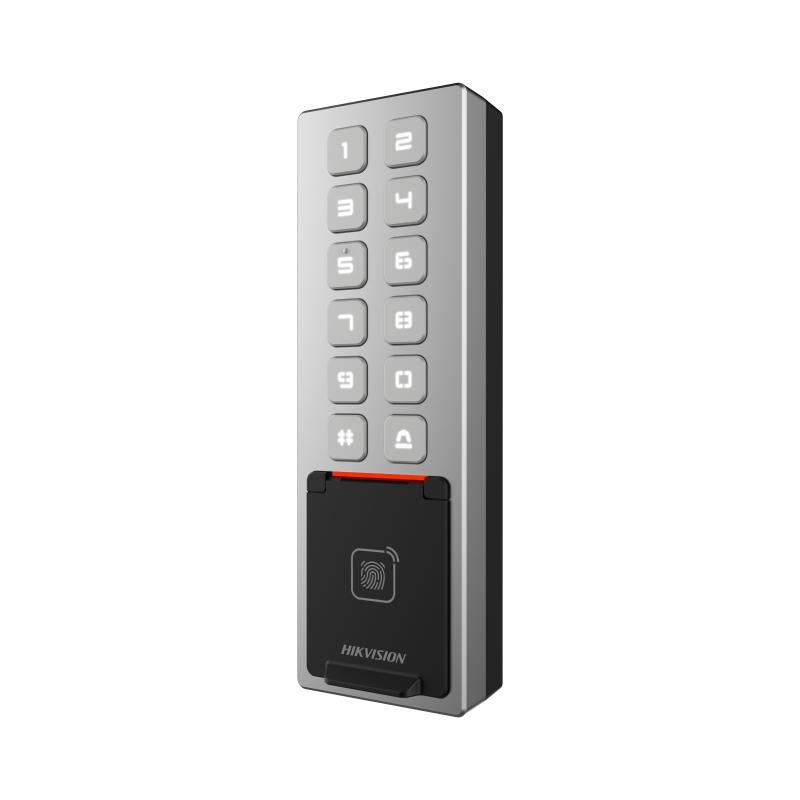

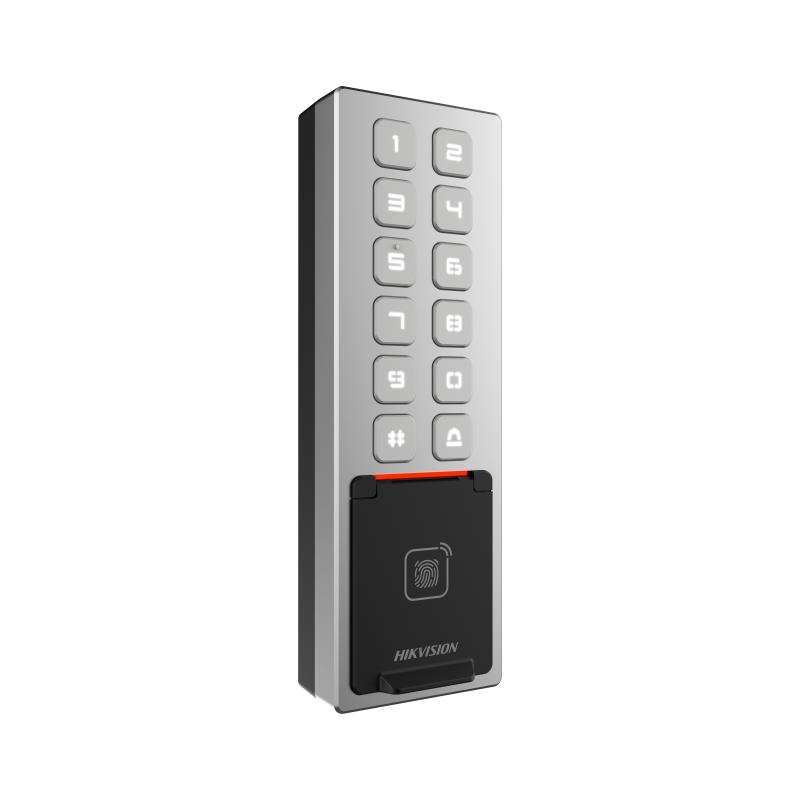

Hikvision DS-K1T805MBFWX 3,000-User Fingerprint & M1-Card Access Terminal (IP65, IK08)

Hikvision DS-K1T805MBFWX 3,000-User Fingerprint & M1-Card Access Terminal (IP65, IK08)

The Hikvision DS-K1T805MBFWX is a durable, value-series access control/attendance terminal designed for both indoor and outdoor deployment. It features a slim metal design and rugged protection with IP65 for water and dust resistance and IK08 for impact resistance.

It supports multiple authentication methods: optical fingerprint, M1 card, PIN code, and Bluetooth—giving flexibility in how users gain access. The terminal can store up to 3,000 fingerprint templates, 10,000 M1 cards, and 100,000 event logs for robust capacity.

Connectivity is flexible: it supports 10/100 Mbps Ethernet, 2.4 GHz Wi-Fi, RS-485 (OSDP), and Wiegand (26/34) interfaces, making it easy to integrate with existing security systems.  It also supports lock control, exit button, door contact, alarm I/O, and tamper detection.

For user interface and feedback, the device runs Linux, provides a built-in buzzer for audio alerts, and supports remote configuration via Hik-Connect, mobile web, or PC web—including AP mode for Wi-Fi setup.

Power is supplied via 12 V DC / 1 A, with a consumption of ≤ 12 W. This terminal is built to endure a wide environmental range from –30°C to +60°C and humidity up to 90% (non-condensing).

Key Features:

• Rugged value-series terminal (IP65, IK08)

• Multi-authentication: fingerprint, M1 card, PIN, Bluetooth

• Storage: 3,000 fingerprints, 10,000 cards, 100,000 event logs

• Network: Ethernet, Wi-Fi, RS-485, Wiegand

• Access control I/O: lock, exit button, door contact, alarms, tamper

• Audio feedback via built-in buzzer

• Remote configuration: Hik-Connect, PC, and mobile web; AP mode supported

• Power: 12 V DC, ≤ 12 W; Operating range: –30 °C to +60 °C
