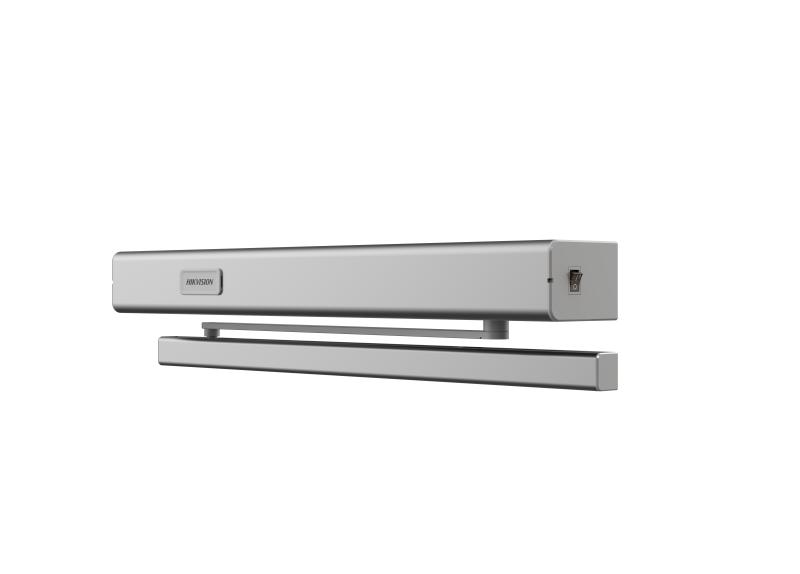

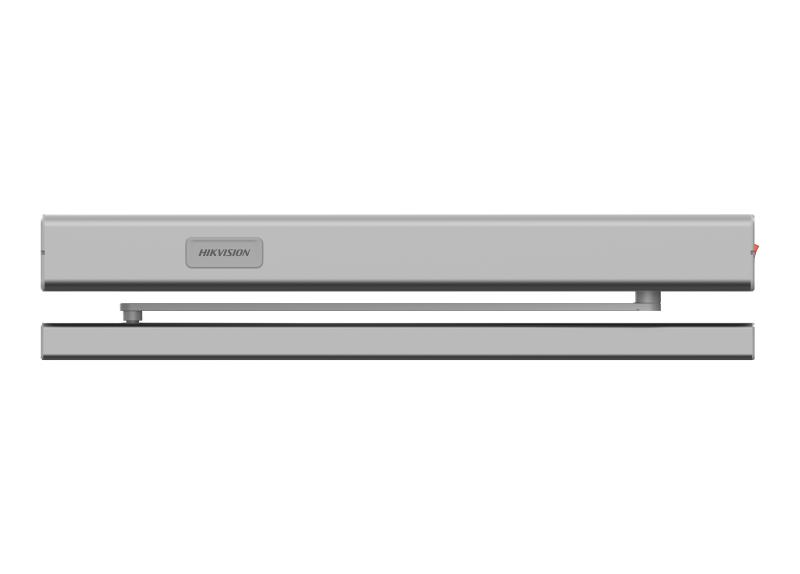

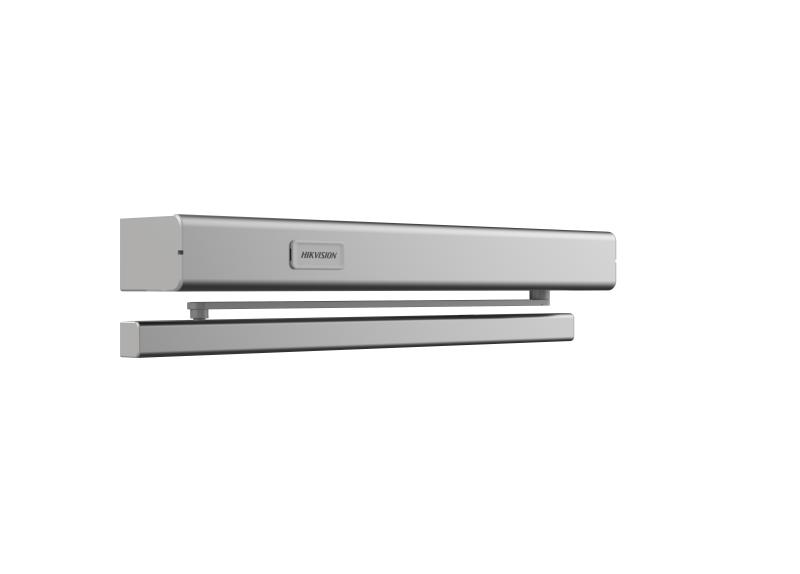

Hikvision DS-K4DC210 Sliding Door Operator / Gate Opener

Hikvision DS-K4DC210 Sliding Door Operator/Gate Opener

The Hikvision DS-K4DC210 is a high-performance sliding door operator designed for integration in speed gate and access control systems. Using a rail-type transmission structure, it ensures smooth and reliable sliding motion across a variety of door types.

It supports external device connection, enabling safer and more flexible door control by linking to lock mechanisms or door-contact sensors.  Thanks to its dual-motor communication, the operator can manage heavier or wider sliding doors or support synchronized movement—ideal for large installations.

Despite its power, the DS-K4DC210 is energy-efficient, consuming only 90 W during operation. It’s built for reliability in various environments, operating from –20°C to +60°C and with up to 90% relative humidity tolerance.

In terms of design, the device is compact and lightweight: the main body measures 552 mm × 80 mm × 60 mm and weighs 3.5 kg.  It uses a wide power input range (100 VAC to 240 VAC), making it versatile for different electrical systems.

Key Features:

• Rail-type sliding transmission for reliable door movement

• External device connectivity for lock control and door contact.

• Dual-motor support for synchronized or heavy doors.

• 90 W power consumption for efficient operation.

• Wide operating temperature: –20°C to +60°C; up to 90% humidity.

• Compact housing: 552 × 80 × 60 mm, 3.5 kg.

• Input voltage: 100–240 VAC.

• Built-in buzzer for operation feedback.
