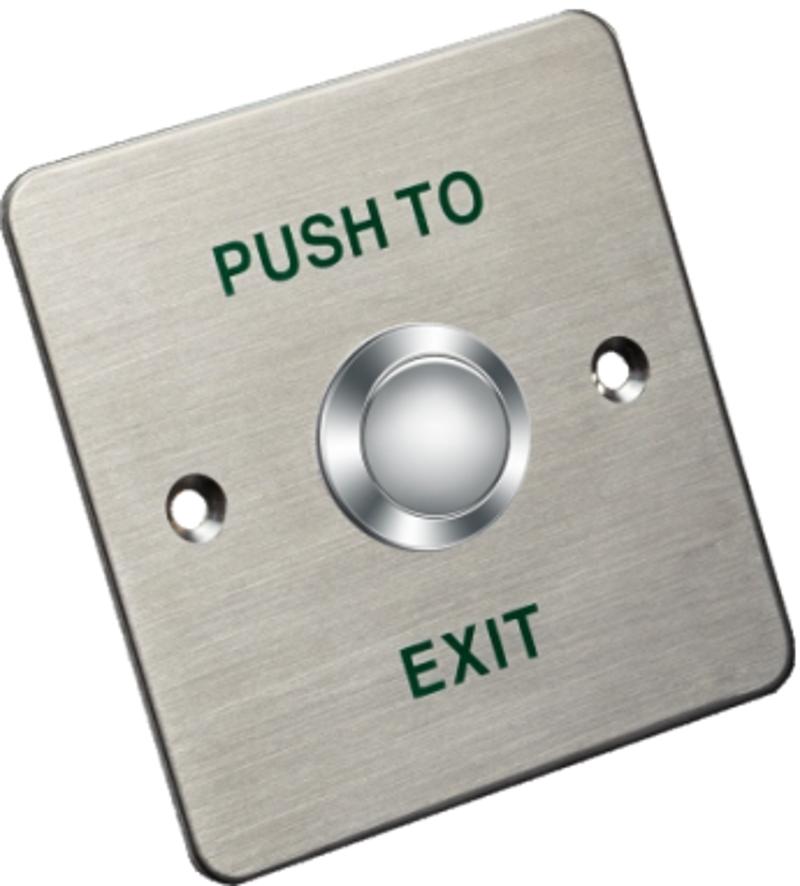

Hikvision DS-K7P01 – Metal Exit / Emergency Push-Button for Access Control

Hikvision DS-K7P01 – Metal Exit/Emergency Push-Button for Access Control

The Hikvision DS-K7P01 is a high-quality exit and emergency push button designed for use with access control systems, particularly in environments that use electromagnetic locks. It combines a sturdy aluminum alloy panel with a metal push button, offering both reliability and a clean, professional appearance.

This button supports a maximum power input of 36 V DC at 3 A, making it compatible with a wide variety of access control hardware. Its output configuration includes NO (normally open), NC (normally closed), and COM (common) contacts for flexible wiring and integration.

Built to last, the DS-K7P01 has passed a 500,000-press aging test, giving confidence that it will remain reliable even in high-use installations. The compact design (86 × 86 × 28.9 mm) fits neatly into hollow doorframes or embedded electric boxes—making installation straightforward.

It’s rated to operate in a wide environmental range, from –10°C to +55°C, and tolerates up to 95% relative humidity, making it suitable for many indoor environments.

Key Features:

• Exit/Emergency push button with metal actuator

• Aluminum-alloy front panel, sand-blasted finish

• Rated for 36 V DC, up to 3 A current.

• NO / NC / COM contact outputs—supports different wiring setups

• Compact size: 86 × 86 × 28.9 mm.

• Designed for hollow doorframe or embedded electric box mounting.

• Durable—>500,000 operation cycles tested

• Operating temp: –10 °C to +55 °C, humidity up to 95% RH
