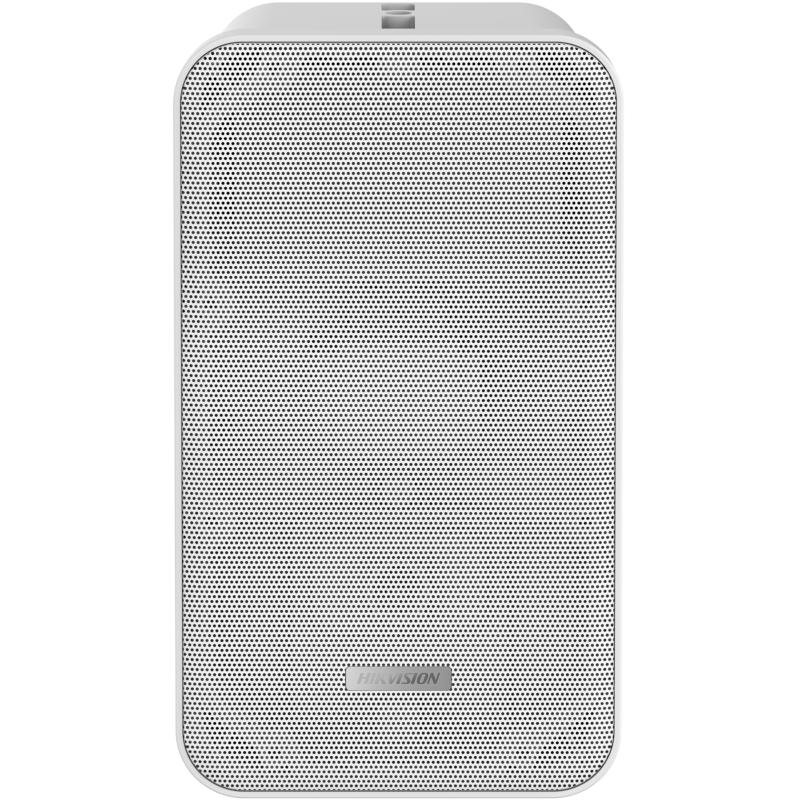

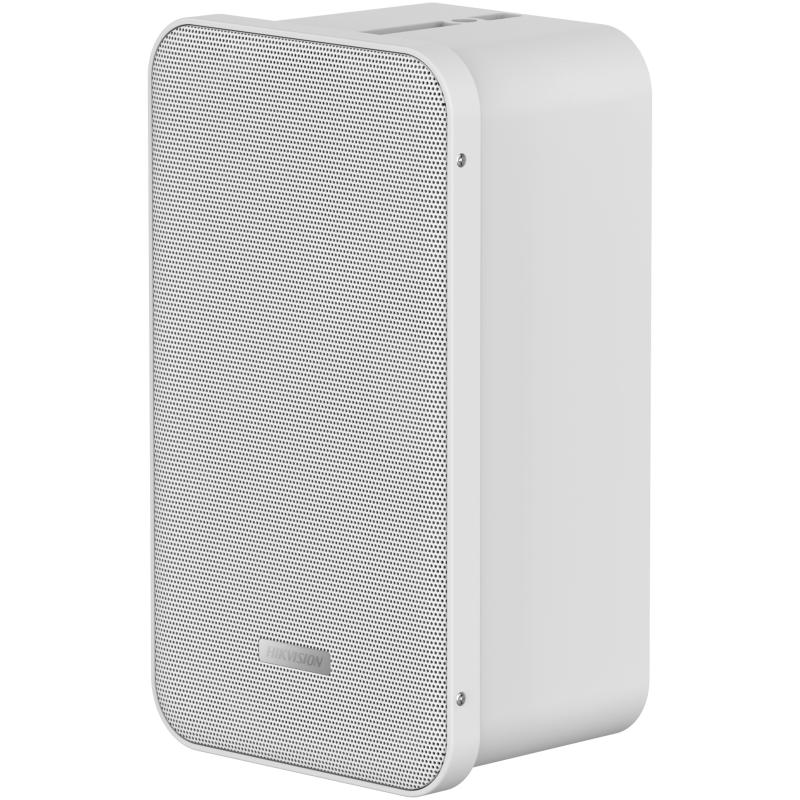

Hikvision DS-QAE0420G1-V 20 W Analog Outdoor / Indoor Cabinet Speaker

Hikvision DS-QAE0420G1-V 20 W Analog Outdoor/Indoor Cabinet Speaker

The Hikvision DS-QAE0420G1-V is a robust 20 W analog cabinet speaker tailored for versatile environments—both indoor and outdoor—where clear audio announcements are required. Incorporating a reliable 5″ full-range driver, the speaker maintains excellent clarity and volume.

It supports selectable power settings (5/10/15/20 W) for use in either 70 V or 100 V PA lines, offering system flexibility for installations of various sizes. The speaker delivers 95 dB ± 3 dB sensitivity and a maximum sound pressure level of 105 dB, ensuring your announcements and background audio are heard clearly. The frequency response ranges from 90 Hz to 20 kHz, allowing for full audible spectrum reproduction.

Built to withstand challenging environments, the DS-QAE0420G1-V features a rugged ABS and sheet-metal body, along with a protective metal grille. Its design includes an IP rating that offers resistance against moderate weather exposure, making it suitable for outdoor or semi-outdoor installations. A versatile U-shaped mounting bracket supports both wall and ceiling installations.

With a compact form (approximately 280 mm × 180 mm × 135 mm) and a weight of around 2.1 kg, the speaker installation remains practical. The unit operates in temperatures ranging from –20°C to +55°C, ensuring reliability in varied environments.

Key Features:

• 20 W cabinet speaker with selectable power taps (5 / 10 / 15 / 20 W) at 70/100 V

• High sensitivity (95 dB ± 3 dB) and up to 105 dB SPL for clear audio

• Wide frequency response: 90 Hz – 20 kHz

• IP-rated housing (outdoor-capable)

• Rugged ABS + sheet-metal construction, durable metal grille

• Flexible installation with U-shaped mounting bracket (wall or ceiling)

• Operating temperature: –20 °C to +55°C—ideal for diverse environments
