Hikvision DS-QAE0A120G1-VB6 120 W 6-Zone Analog Amplifier with Bluetooth & USB

The Hikvision DS-QAE0A120G1-VB6 is a 120 W analog PA amplifier with 6-zone output, plus Bluetooth, USB, SD card, mic/AUX/EMC inputs, and independent zone volume control—ideal for large multi-zone installations.

Specification Detail
Model DS-QAE0A120G1-VB6
Rated Power 120 W
Zones 6 independent outputs
Audio Inputs EMC ×1, Microphone ×2 (6.5 mm), AUX ×2, Bluetooth, USB 2.0, SD
Audio Outputs 110 V COM, 70 V COM, 4–16 Ω COM, Partition ×6, Line out ×1
Frequency Response 80 Hz – 18 kHz (±3 dB)
THD/SNR ≤ 0.5% / ≥ 83 dB

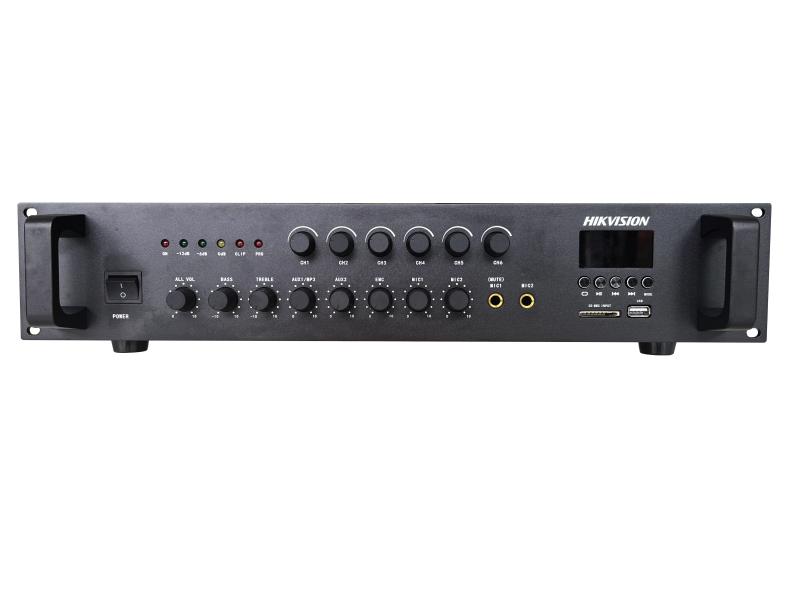

Volume Controls Mic1, Mic2, EMC, Zone 1–6, Master, Bass, Treble, AUX1/MP3, AUX2
Protection Short circuit, overload, over-temperature, amplitude limiting
Cooling Forced-air fan
Power Supply 200–230 V AC, 50/60 Hz, 5 A
Material Iron
Dimensions (W × H × D) 484 × 88 × 360 mm
Weight Approx. 9.2 kg
Operating Temp. −10 °C to +40 °C
Order Via WhatsApp
Kenya-wide delivery Reliable fulfilment for home and business orders.
Business sourcing Need multiple units or a related solution? We can help.
Need help before ordering? 0711 179 496 [email protected]
Categories: , ,

Hikvision DS-QAE0A120G1-VB6 120 W 6-Zone Analog Amplifier with Bluetooth & USB

The Hikvision DS-QAE0A120G1-VB6 is a powerful, 120 W analog public-address amplifier designed for deployments that require multi-zone audio control. It features six independent zone outputs, giving you the ability to partition sound seamlessly across different areas or rooms.

Input options are extremely flexible: you get EMC (emergency) input, 2 × mic (6.5 mm), 2 × AUX, Bluetooth, USB (2.0), and SD card support, enabling both live paging and music playback from multiple sources. The amplifier prioritizes Mic 1 and EMC—ensuring critical announcements override other audio inputs.

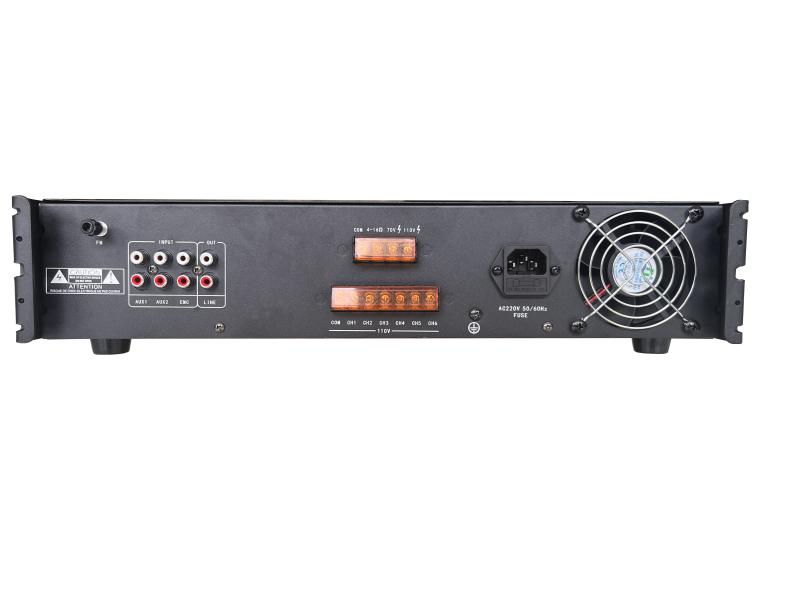

On the output side, the unit supports constant-voltage lines (110 V and 70 V), constant impedance (4–16 Ω), and offers six partition outputs plus a line-out for cascading. For tone control, there are dedicated knobs for bass and treble, alongside master volume and input-specific volume controls.

The frequency response is 80 Hz–18 kHz (±3 dB), giving a wide and clear audio spectrum, with distortion kept low (THD ≤ 0.5%) and a signal-to-noise ratio of ≥ 83 dB. For reliability, the amplifier features built-in protections against short circuit, overload, overheating, and has a forced-air cooling fan to maintain performance.

Designed for rack or cabinet installation, the unit is housed in a sturdy iron chassis with dimensions of 484 × 88 × 360 mm and weighs around 9.2 kg, making it robust yet practical for professional setups.

Key Features:

  • 120 W total output, with 6 independent audio zones

  • Multiple audio inputs: EMC, 2 × mic, 2 × AUX, Bluetooth, USB, SD card

  • Flexible outputs: 110 V / 70 V constant-voltage, 4–16 Ω impedance, 6 partition lines

  • Independent volume control for each zone + master volume + tone (bass, treble)

  • Audio priority: Mic 1 and EMC override other sources

  • Wide frequency response: 80 Hz–18 kHz

  • Low distortion (THD ≤ 0.5%) and high SNR (≥ 83 dB)

  • Built-in protection: short-circuit, over-current, over-temp, amplitude limiting

  • Forced-fan cooling for long runtime and high reliability

  • Sturdy design: iron chassis, rack-mountable, 9.2 kg
