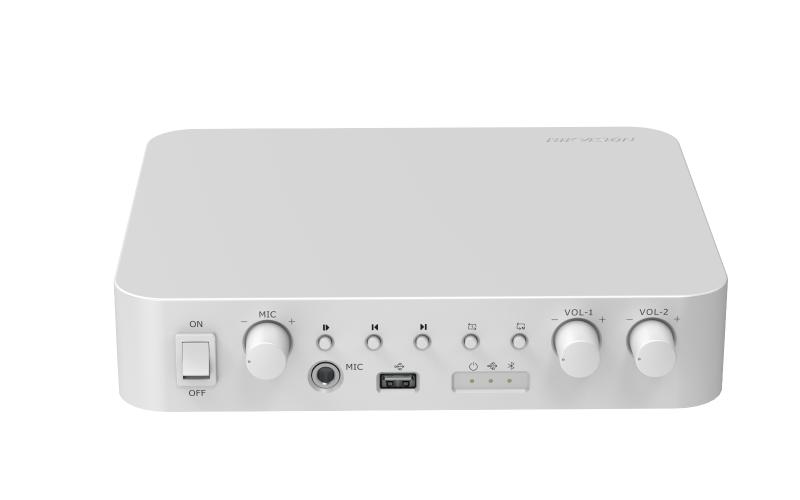

Hikvision DS-QAE0A60G1-VB 60 W 2-Zone Analog Amplifier with Bluetooth & USB

Hikvision DS-QAE0A60G1-VB 60 W 2-Zone Analog Amplifier with Bluetooth & USB

The Hikvision DS-QAE0A60G1-VB is a high-performance 60 W analog amplifier designed for public-address systems in commercial or institutional settings. It offers flexible audio input options—Bluetooth, USB, microphone, and RCA—allowing you to stream playlists, plug in mics, or use external audio sources.

With its two-zone partition volume control, you can independently adjust the output for two different areas, making it ideal for multi-zone paging or background music systems. The amplifier supports dual output modes: constant-voltage (100 V) for distributed PA lines and constant-resistance (4–8 Ω) for shorter speaker runs.

For performance, the amplifier delivers a frequency response of 20 Hz–20 kHz for Bluetooth/USB input and 20 Hz–8 kHz for mic and RCA input. Audio quality is maintained with a low THD (≤ 1%) and a high SNR (≥ 100 dB).

The DS-QAE0A60G1-VB is built to last, with protection against short circuits, overcurrent, overheating, static discharge, and surges. It comes in a compact plastic housing (190.8 × 230.8 × 51.2 mm) and weighs about 1.45 kg Bluetooth 5.3 enables easy streaming from mobile devices up to 10 m away, and LED indicators show power, USB, and Bluetooth status.

Key Features:

• 60 W rated output, 2-zone design

• Multiple audio inputs: Bluetooth, USB, MIC, RCA

• Independent mic and 2-zone volume controls

• Dual output: 100 V constant-voltage & 4–8 Ω constant-resistance

• Built-in Bluetooth module for wireless playback

• USB playback from flash drives (FAT32)

• Protection features: short-circuit, overcurrent, over-temperature, surge, static

• Durable, high-strength plastic body

• Compact size: 190.8 × 230.8 × 51.2 mm

• Operating temperature: –10 °C to +55 °C
