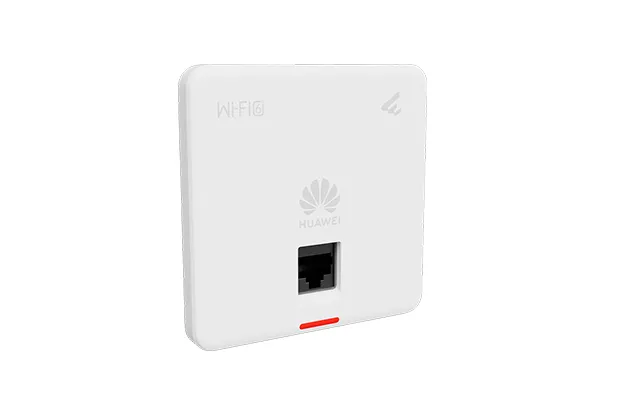

Huawei AP160 Wi-Fi 6 Access Point

The Huawei AP160 is a wall-plate Wi-Fi 6 (802.11ax) access point designed for indoor use in offices, hotels, apartments, and similar environments. It supports dual-band operation on 2.4 GHz and 5 GHz with 2×2 MIMO on each band, delivering up to 1.775 Gbps combined data rate (575 Mbps on 2.4 GHz and 1.2 Gbps on 5 GHz).

The device features a slim 8 mm panel and fits a standard 86 mm × 86 mm junction box for an elegant, low-profile installation. It supports multiple deployment modes including Fit, Fat, and Cloud management, offering flexibility depending on network size and needs.

Key Features

• Supports Wi-Fi 6 for faster speeds and higher network efficiency.

• Dual-band radios with 2×2 MIMO provide strong, reliable wireless coverage.

• Up to 1.775 Gbps aggregate throughput for high-density user environments.

• One Gigabit Ethernet uplink port and one Gigabit Ethernet downlink port for wired connections.

• Power over Ethernet (PoE) support simplifies installation and reduces cabling.

• Built-in smart antennas adjust coverage dynamically for optimized performance.

• Compact wall-mounted design with an ultra-thin profile, blending seamlessly into interiors.

• Supports various deployment and management modes to suit different network architectures.

• Low power consumption (~9.1 W) ensures energy-efficient operation.
