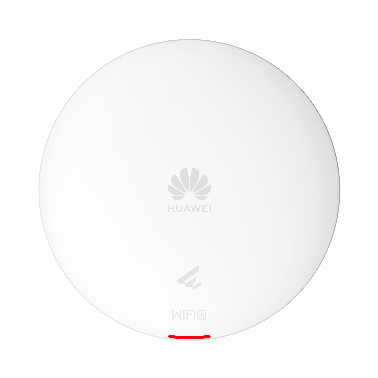

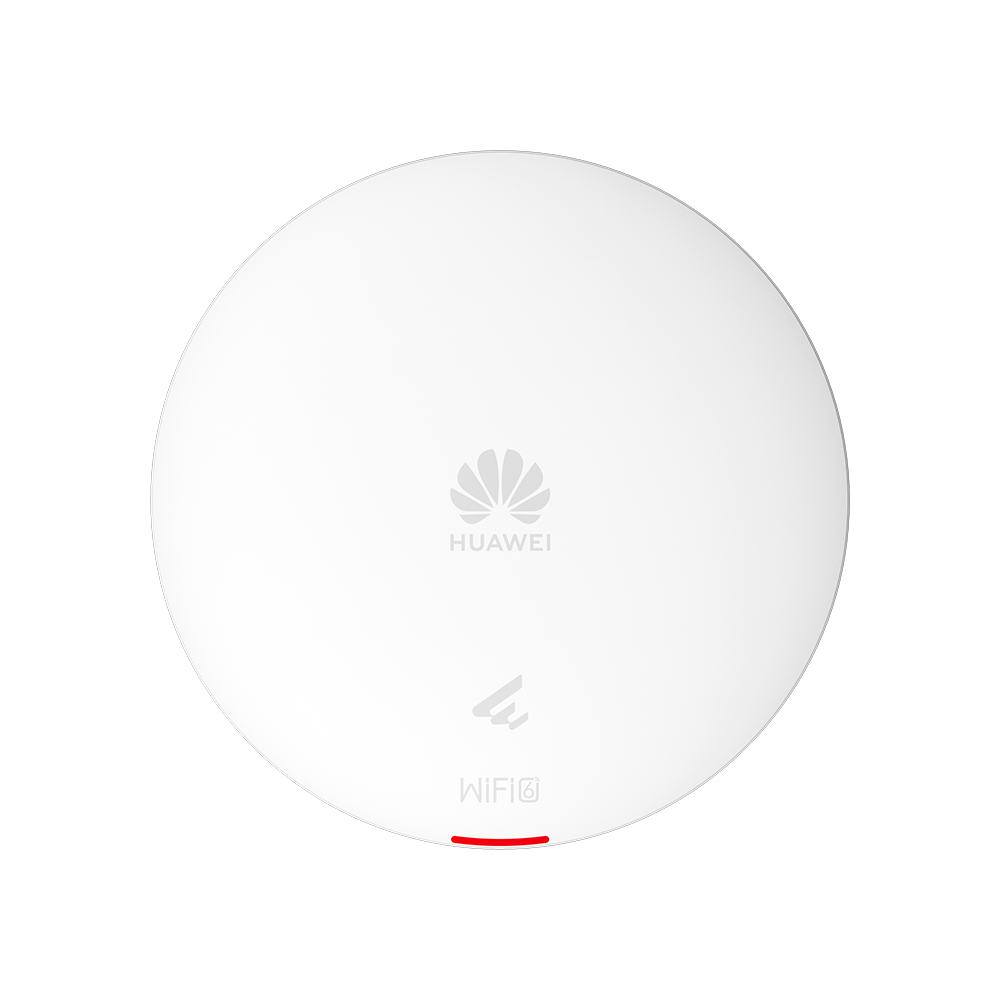

Huawei AP362 Access Point

The Huawei AP362 is an indoor Wi‑Fi 6 (IEEE 802.11ax) access point designed for commercial environments such as offices, schools, hospitals, and hotels. It features a compact wall- or ceiling-mount form factor, optimized for deployments requiring efficient coverage with moderate to high user density.

It supports dual-band operation (2.4 GHz + 5 GHz), 2×2 MIMO on each band, and includes built-in smart antenna technology, which adapts signal direction or strength to improve coverage and reduce interference.

 Specifications

• Wireless Standard & Bands: IEEE 802.11ax (Wi‑Fi 6), backward compatible with a/b/g/n/ac; dual radio with 2×2 MIMO on each band.

• Maximum Device Rate & Throughput: ~575 Mbps on 2.4 GHz; ~2.4 Gbps on 5 GHz; combined throughput up to ~2.975 Gbps.

• Form Factor & Deployment: Diameter ~180 mm × depth ~35 mm; weight ~0.46 kg. Supports wall or ceiling installation, including T-rail and gypsum board ceilings.

• Ports & Power: 1 × Gigabit Ethernet port (10/100/1000) with PoE input; can also use 12 V DC adapter. Maximum power consumption ~11.2 W.

• Antenna & Radio Characteristics: Built-in smart antennas for dynamic adjustment of coverage; antenna gain ~4 dBi at 2.4 GHz, ~5 dBi at 5 GHz; maximum transmit power ~+17 dBm per chain.

• Environmental & Operating Conditions: Operating temperature −10 °C to +50 °C; storage temperature −40 °C to +70 °C; humidity 5% to 95% non-condensing.

• Management Modes & Network Features: Supports Fit (controller-based), Fat (standalone), and Cloud management. Wi‑Fi 6 enhancements include MU-MIMO, OFDMA, 1024‑QAM, BSS Coloring/spatial reuse, and Target Wake Time (TWT).

• Use-Case Fit / Target Scenarios: Suited for indoor commercial scenarios: SMEs, medium offices, schools, hotels, hospitals.
