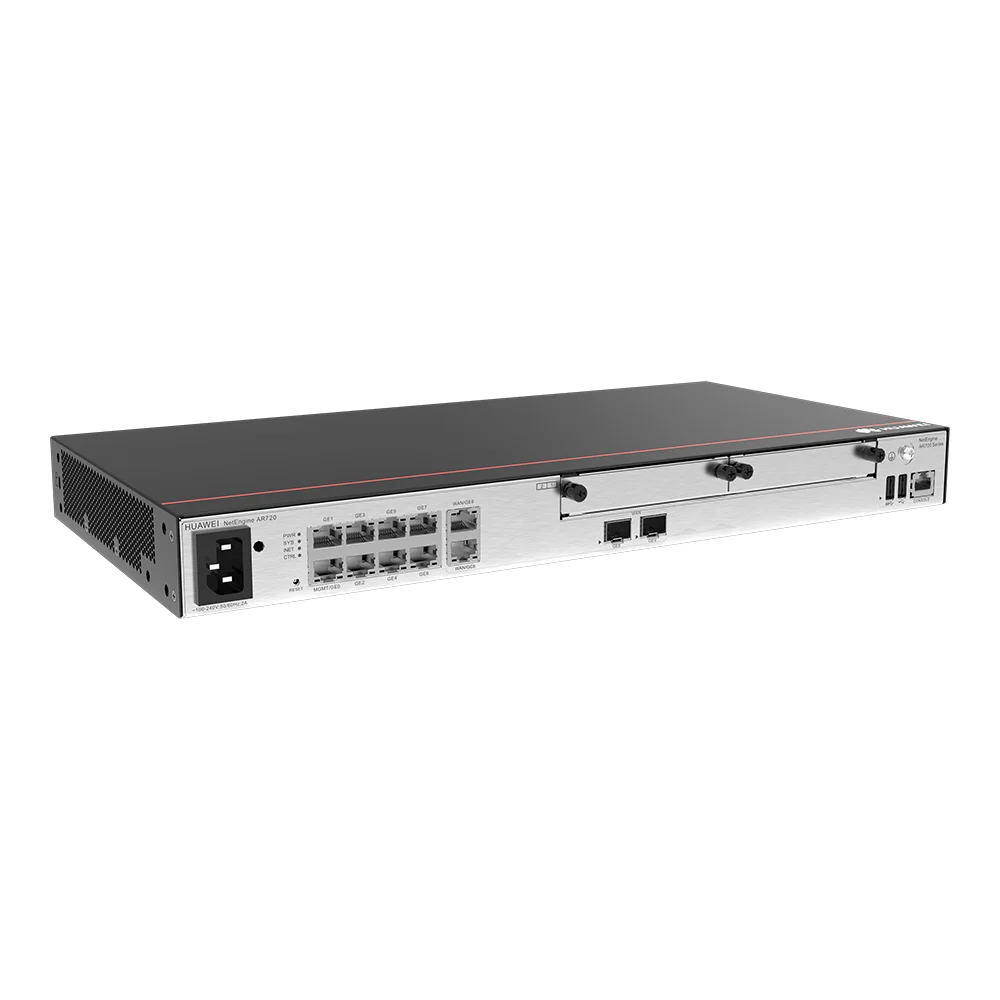

Huawei AR720 Router

The Huawei AR720 is an enterprise-grade access router designed for small to medium-sized branch offices, campus deployments, and edge networks. It belongs to Huawei’s NetEngine AR700 series and offers integrated routing, switching, VPN, security, and wireless controller functionality in a compact 1U form factor.

It features an ARM-based multi-core processor and a non-blocking switching architecture, optimized for high-performance forwarding and service convergence in modern network environments.

 Features

• Interfaces:

  • 2 GE combo WAN ports (RJ-45 + optical SFP)

  • 8 GE electrical LAN ports (can be re-configured as WAN)

  • 2 SIC (Smart Interface Card) slots for expansion (additional LAN/WAN or LTE modules)

• Performance:

  • Forwarding rate: ~9 Mpps up to ~25 Mpps

  • Supports ~700–1,200 concurrent devices depending on configuration

• Security & Services:

  • Built-in firewall, IPS (Intrusion Prevention), URL filtering

  • Multiple VPN types: IPsec, SSL, GRE

  • MPLS L3VPN support

  • Advanced QoS / traffic management

• Form Factor & Environment:

  • 1U rack-mount chassis: 44.4 mm (H) × 442 mm (W) × ~220–225 mm (D)

  • Weight: ~3.2 kg

  • Power consumption: up to ~33 W

  • Operating temperature: 0 °C to 45 °C

• Mounting Flexibility:

  • Standard 19-inch rack

  • Workbench or wall-mounted

• Management:

  • SNMP, web interface, CloudCampus, centralized network management systems
