Huawei S110‑16LP2SR Switch

Huawei S110‑16LP2SR Switch

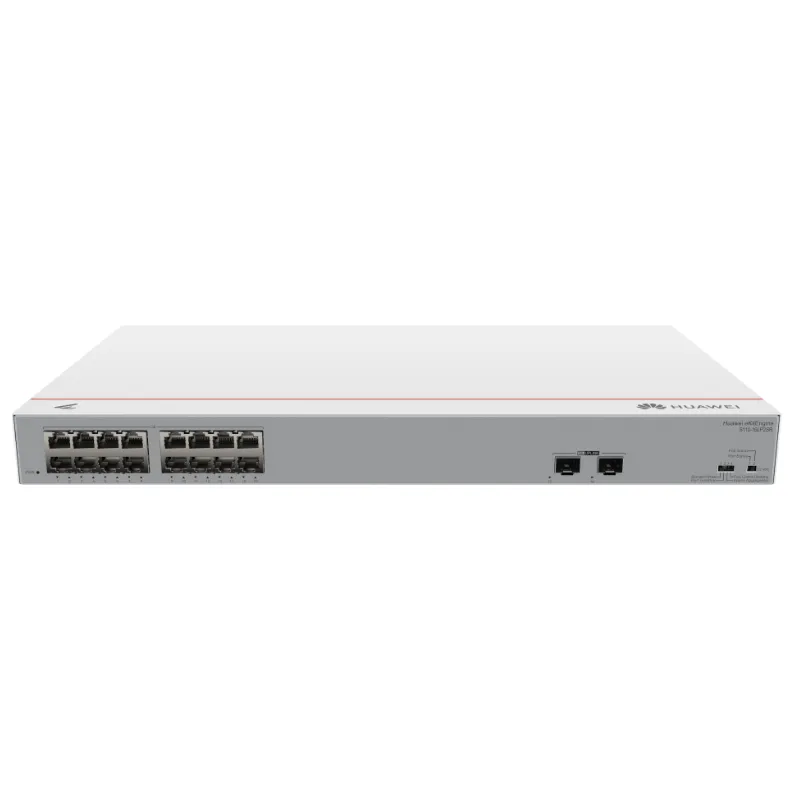

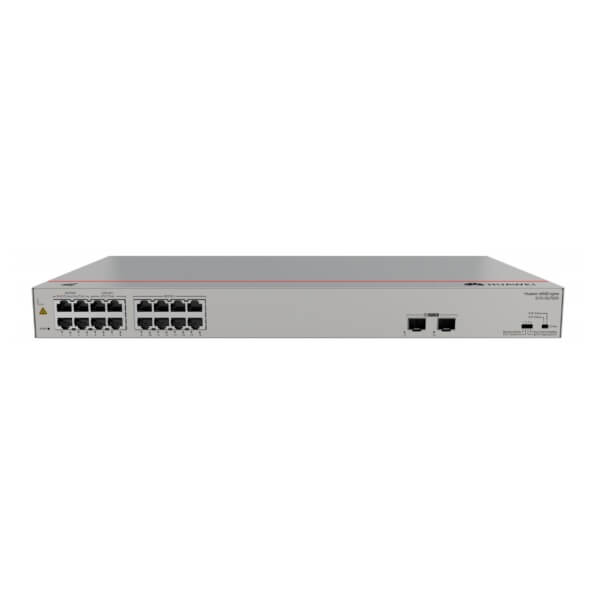

The Huawei S110‑16LP2SR is a fixed-configuration Gigabit Ethernet switch designed for access layer deployment, such as small offices, branch locations, and retail stores, where Power over Ethernet (PoE) is required. It features 16 Gigabit ports and 2 SFP uplink ports, supports PoE+, and has a fanless design for quiet operation. It belongs to the S110 series, which emphasizes simplicity, easy deployment, and reliability.

Features

• 16 downlink Gigabit ports: Supports 10/100/1000 Mbps connections.

• 2 uplink SFP ports: Supports fibre or extended reach uplinks.

• PoE+ support: Provides IEEE 802.3af/at PoE/PoE+ with a total budget of ~124 W.

• Lightly managed: Basic working modes include port isolation, uplink aggregation, and flow control settings.

• Fanless design: Silent operation suitable for offices or retail spaces.

• Flexible installation: 1U rack-mountable, wall or desktop placement, metal chassis.

 Technical Specifications

Ports & Performance

• Downlink: 16 × 10/100/1000BASE-T RJ45

• Uplink: 2 × GE SFP

• Switching capacity: ~36 Gbps

• Packet forwarding rate: ~26.78 Mpps

• MAC address table: 8K entries

PoE / Power

• Total PoE budget: 124 W

• Maximum PoE per port: up to ~30 W

• Typical power consumption (no PoE load): 22 W

• Max power consumption (full PoE load): ~160 W

Physical & Environmental

• Dimensions: 43.6 mm × 442.0 mm × 260 mm

• Weight: ~3.0 kg

• Operating temperature: 0 °C to 40 °C (derating above 1800 m altitude)

• Storage temperature: –40 °C to +70 °C

• Ingress protection: IP20

• Surge protection: Service port ±4 kV, Power supply ±6 kV

Installation & Mounting

• Chassis height: 1 U

• Installation types: Rack, wall, desktop

• Material: Metal
