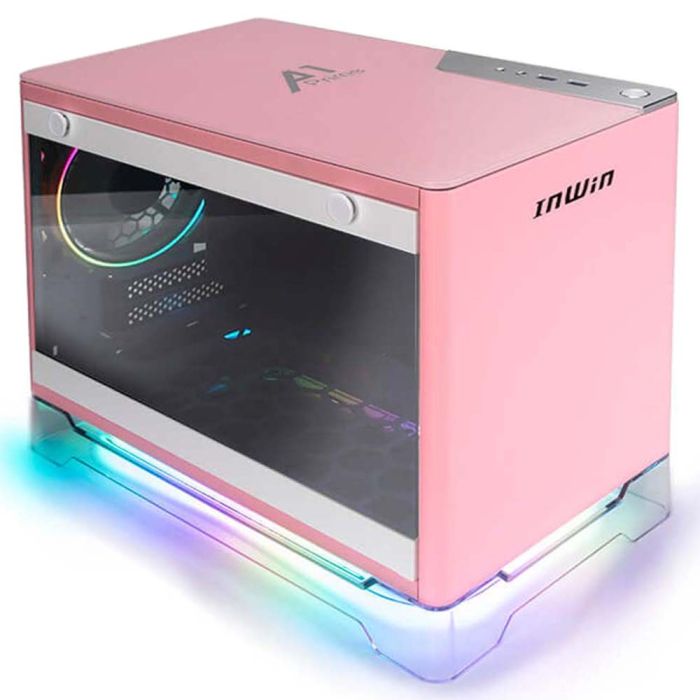

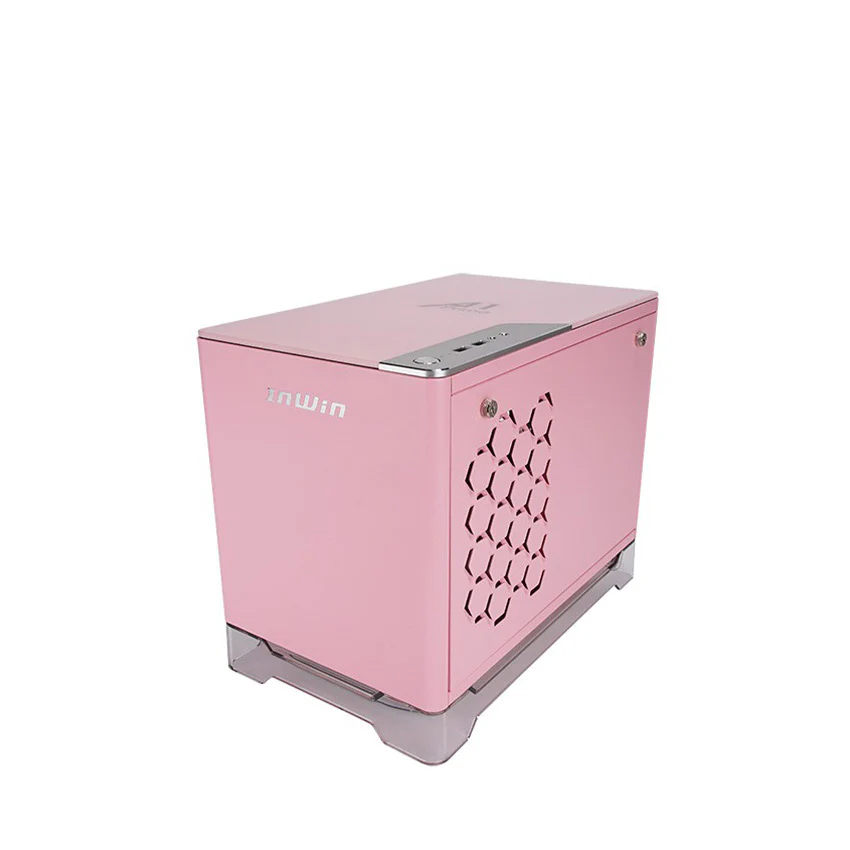

Inwin A1 Prime ITX Case With 750w PSU Pink Gaming Case
| Materials | SECC, Tempered Glass, Aluminium, Plexiglass |
| M/B Compatibility | Mini-ITX |
| Expansion Slots | 2 x PCI-E |
| Maximum Compatibility | VGA Card Length: 320 mm VGA Card Thickness: 55 mm CPU Heatsink Height: 160 mm |
| I/O Ports | 2 x USB 3.0 HD Audio |
| Internal Drive Bays | 2 x 2.5” |
| Thermal Solution Compatibility | Air Cooling Fans: Rear: 1 x 120 mm (Pre-Installed) Bottom: 2 x 120 mm Side: 1 x 120 mm (Pre-Installed) Water Cooling Radiator: Rear: 1 x 120 mm |
| Power Supply Compatibility | PSII: Intel ATX12V V2.52 InWin 750 W 80 Plus Gold PSU Included |
| Product Dimensions (L x W x H) | 343 x 210 x 231 mm 13.5″ x 8.3″ x 9.1″ |
| Product Dimensions (L x W x H) with Screw & Handle Height | 357 x 224 x 273 mm 14.1″ x 8.8″ x 10.7″ |
| Net Weight | 6.14 kg / 13.5 lbs |
| Connectors | 20 + 4 Pin Motherboard: 1 8 – Pin CPU: 1 8 (6 + 2) Pin PCI-E: 2 SATA: 3 |
| Model | P75F |
| AC Input | 100 – 240 Vac |
| Input Current | 8 – 10 A |
| Frequency | 50 – 60 Hz |
| Voltage | +12 V / +5 V / +3.3 V / -12 V / +5 VSB |
| Max. Output Current | 62.5 A / 22 A / 22 A / 0.3 A / 3 A |
| Max. Combined Power | 750 W / 120 W / 120 W / 3.6 W / 15 W |
| Total Power | 750 W |
Inwin A1 Prime ITX Case With 750w PSU Pink Gaming Case
Personalize Your Rig
The A1 Prime features a ventilated, tinted transparent stand. The integrated LED module is concealed within the bottom portion of the chassis and the ARGB lights pierce through to create an awesome lighting experience.
Loop in More Colours
The Al Prime comes with two Sirius Pure ASP120 fans. The fans possess dual radiant addressable RGB loops, so you can enjoy from either side of the fan.
Gorgeous ARGB Lighting Effect
The ARGB feature complements other ARGB components and cane be synced together with motherboard software via 3-pin, 5V header.
*Included ARGB One-click controller allows fans to light up without an addressable RGB motherboard.
Upgraded InWin 750W PSU
The P75F is prebuilt within the A1 Prime with cables managed. It’s an 80 PLUS® Gold certified power supply with up to 90% efficiency, which can fulfil the power consumption requirement for the latest high-end graphics card.
5V and 3.3V DC to DC Design
Equipped with 5V and 3.3V DC to DC converter design, the P75F provides a superior dynamic response, and supports a foundation for greater system stability.
Multi-Protection Safeguards
The PF Series comes with plenty of safeguards against over-currents, over-and-under voltages, short circuits, over-heating and over-power. These precautions are to ensure quality and safe power usage.
- Over-Currents
- Over-Voltages
- Under-Voltages
- Short Circuits
- Over-Temperature
- Over-Power
5-Year Warranty
InWin offers a 5-year warranty to back our claim of providing reliable and dependable performance.
Squaring Infinite Possibilities
The square structure provides a hassle-free installation, and the capacity to house powerful hardware in its Mini-ITX form. The A1 Prime supports a CPU heatsink height up to 160mm and accommodates up to 320mm length graphics cards.
