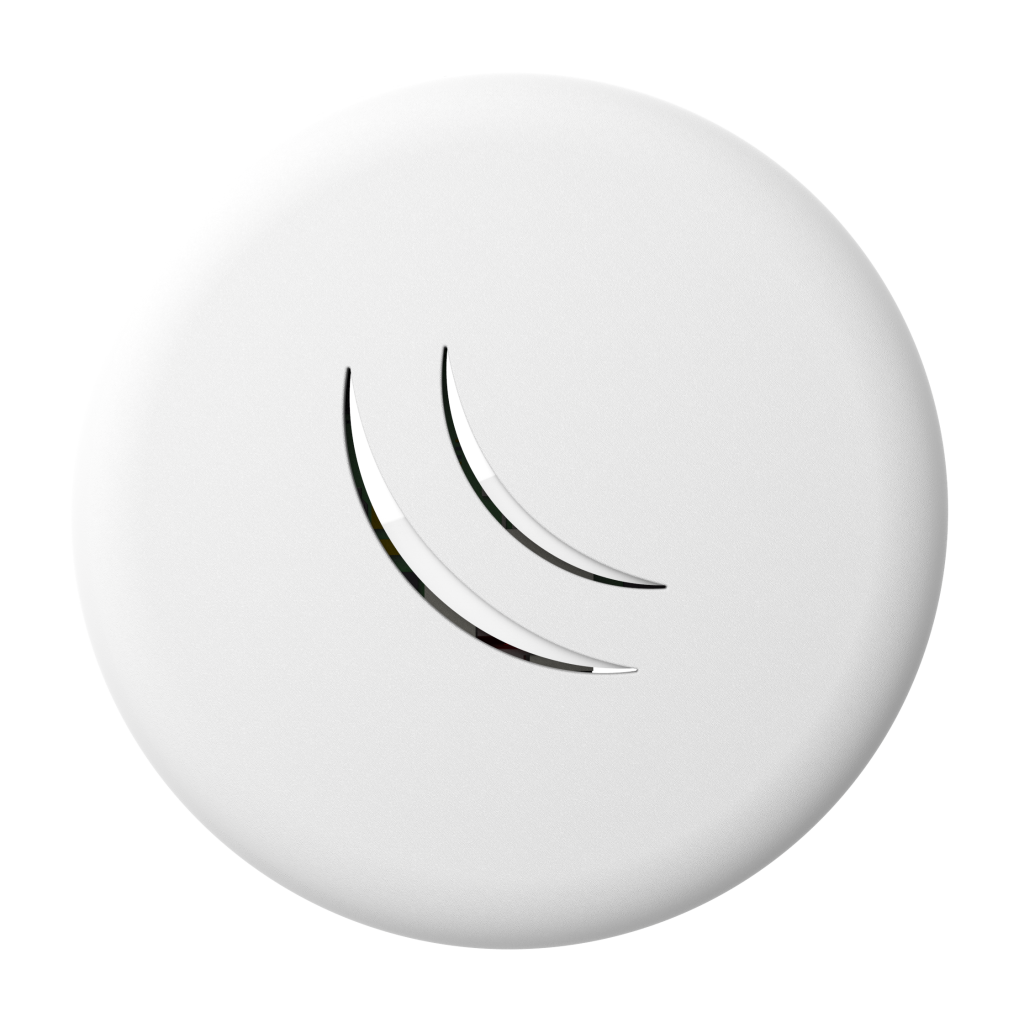

MikroTik CAP Lite RBcAPL-2nD Access Point

The cAP lite is a cost-effective and compact dual-chain 2.4GHz access point designed for seamless integration in public and hospitality environments. Its versatility, stylish design, and small form factor make it an ideal solution for hotels, airports, shopping malls, and more.

Product Features

Compact and Versatile Design

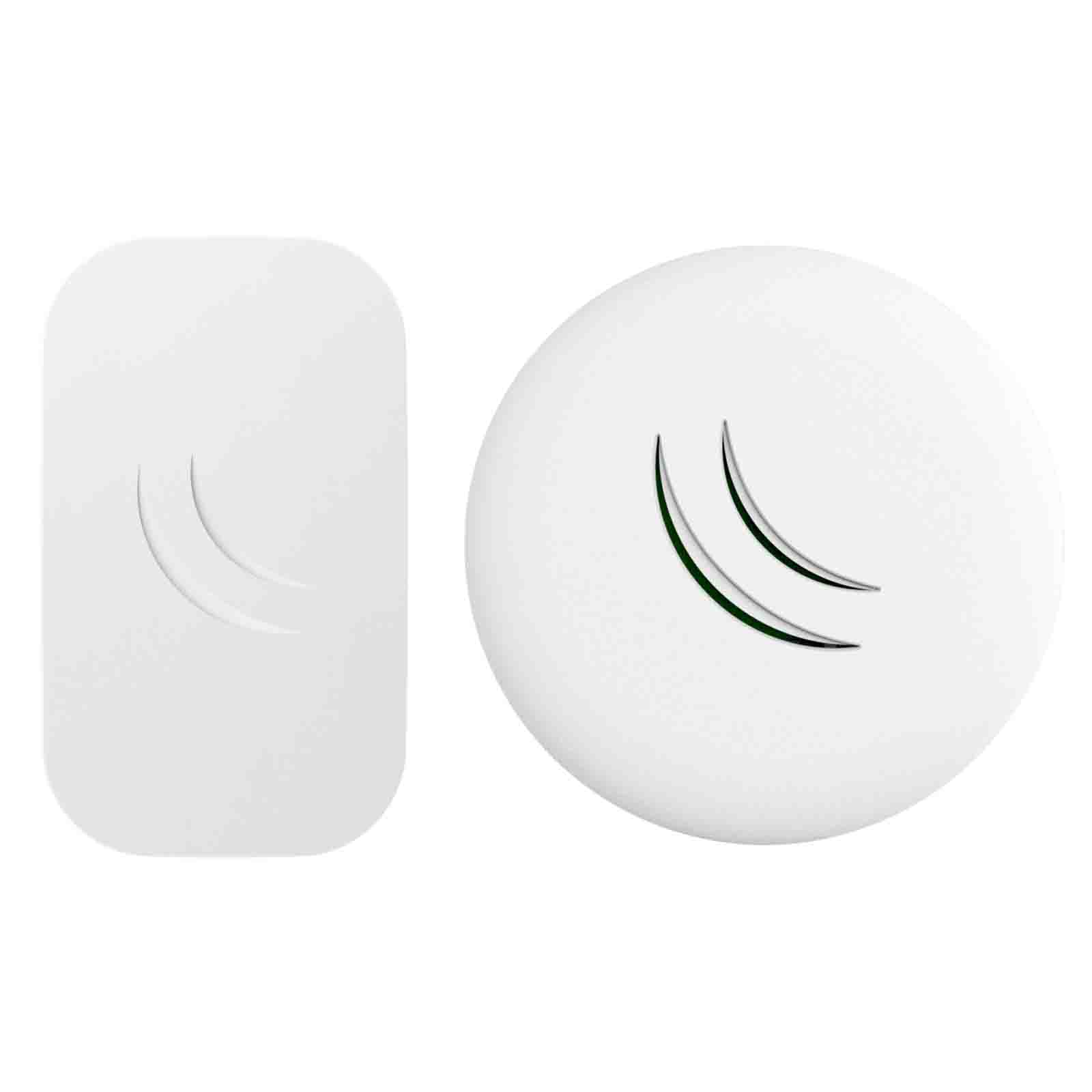

Comes with two interchangeable casings (wall and ceiling mountable).

Option to customize with 3D-printable design files for tailored aesthetics.

Seamless Network Management

Compatible with MikroTik CAPsMAN , enabling centralized management of multiple access points.

Can also function as a standalone access point with the full capabilities of RouterOS.

Flexible Power Options

Supports PoE (802.3af/at) and microUSB power input , providing installation flexibility.

Efficient Wireless Performance

Dual-chain 802.11b/g/n wireless with 1.5 dBi antenna gain for stable connectivity.

Technical Specifications

General

• Product Code: RBcAPL-2nD
• CPU: QCA9533, single-core, 650 MHz
• RAM: 64 MB
• Storage: 16 MB FLASH
• Dimensions:
  • Wall Case: 88 x 52 x 20 mm
  • Ceiling Case: ⌀88mm x 20mm
• License Level: 4
• Operating System: RouterOS
• Tested Ambient Temperature: -40°C to +70°C

Powering

• Max Power Consumption: 4 W
• Power Options:
  • PoE: 802.3af/at (10-60V input)
  • MicroUSB Input Voltage: 5 V

Wireless

• Frequency Band: 2.4 GHz
• Wireless Standards: 802.11b/g/n
• Number of Chains: 2
• Chip Model: QCA9533
• Antenna Gain: 1.5 dBi

Ethernet

• Ports: 1 x 10/100 Mbps Ethernet

Peripherals

• USB Ports: 1
• USB Slot Type: microUSB type AB
• Max USB Current: 1A
