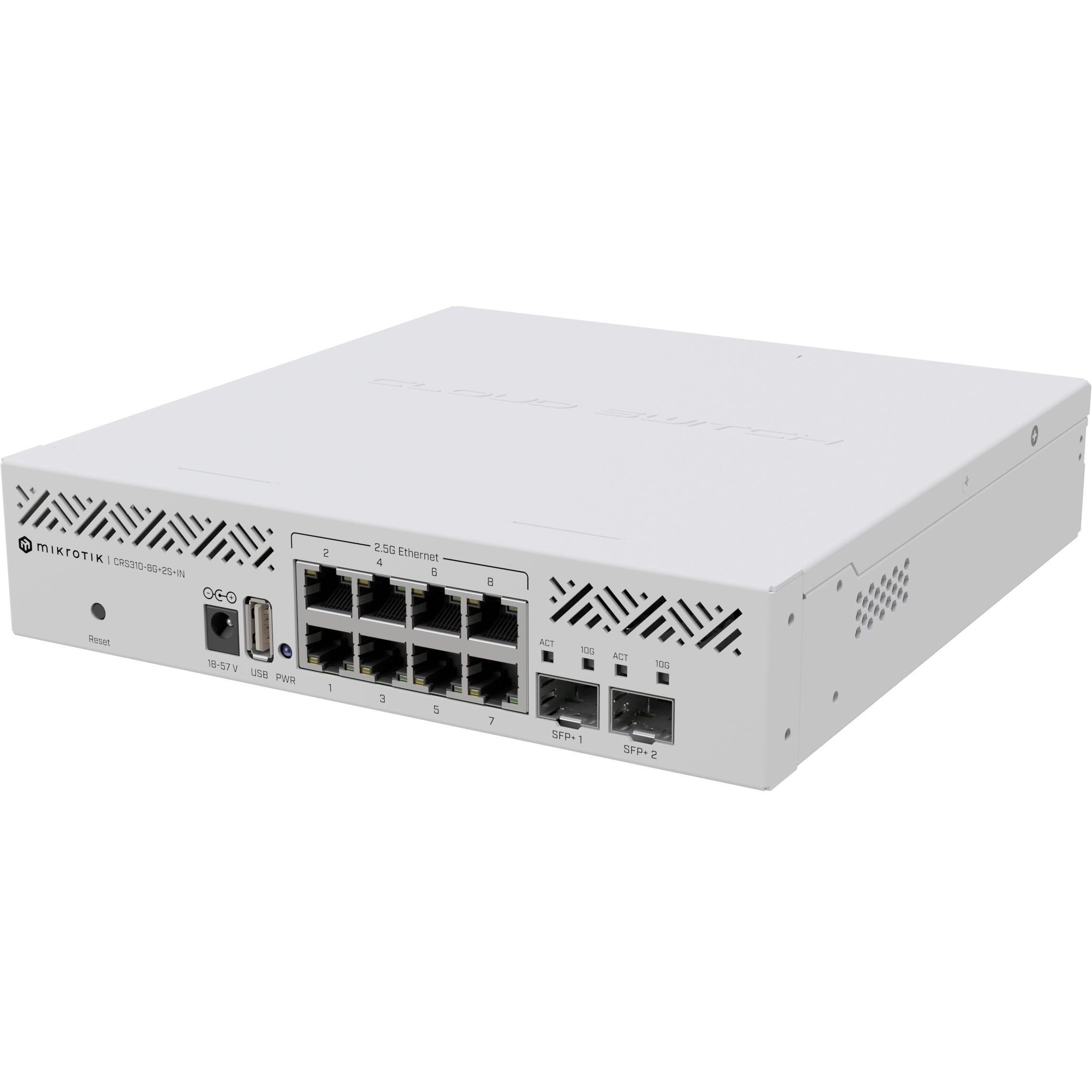

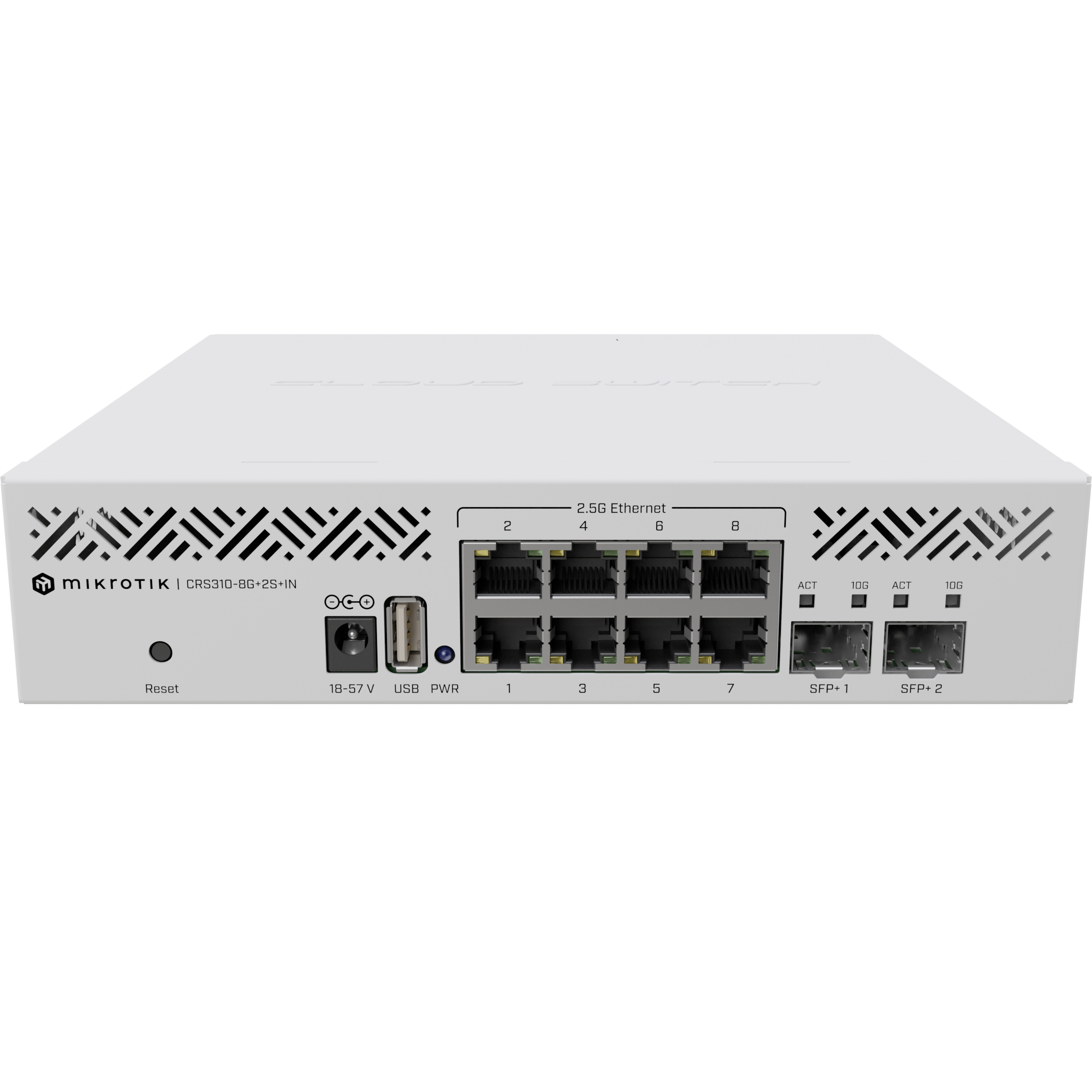

Mikrotik CRS310-8G+2S+IN Cloud Router Switch 8x 2.5Gb

The CRS310-8G+2S+IN is a high-performance Layer 3 switch developed by MikroTik, designed to enhance network management and connectivity. Equipped with an 800 MHz processor and 256 MB of RAM, this device ensures efficient data processing and seamless operation in various networking environments.

This intelligent switch features eight switched RJ-45 Ethernet ports that support speeds of up to 2.5 Gb/s. This capability makes the CRS310-8G+2S+IN ideal for environments that demand high data transfer rates, ensuring that your network can handle heavy traffic without compromising performance.

In addition to its robust Ethernet capabilities, the CRS310-8G+2S+IN includes two SFP+ cages, allowing for 10G uplink connections or rapid connections to storage servers. This versatility enhances the switch’s functionality, making it suitable for a wide range of applications, from small businesses to larger enterprise networks.

With its combination of advanced features and reliable performance, the CRS310-8G+2S+IN by MikroTik stands out as a powerful solution for network management. Whether you are looking to upgrade your existing infrastructure or build a new network, this model offers the essential technical specifications needed to meet modern connectivity demands.

Specifications

• Product code CRS310-8G+2S+IN
• Architecture ARM 32bit
• CPU 98DX226S
• CPU core count 2
• CPU nominal frequency 800 MHz
• Switch chip model 98DX226S
• Dimensions 200 x 206.1 x 44
• RouterOS license 5
• Operating System RouterOS v7 / SwitchOS
• Size of RAM 256 MB
• Storage size 32 MB
• Storage type FLASH
• MTBF Approximately 200|000 hours at 25C
• Tested ambient temperature -40C to 60C

Powering

• Number of DC inputs 1 (DC jack)
• DC jack input Voltage 18-57 V
• Max power consumption 34 W
• Max power consumption without attachments 21 W

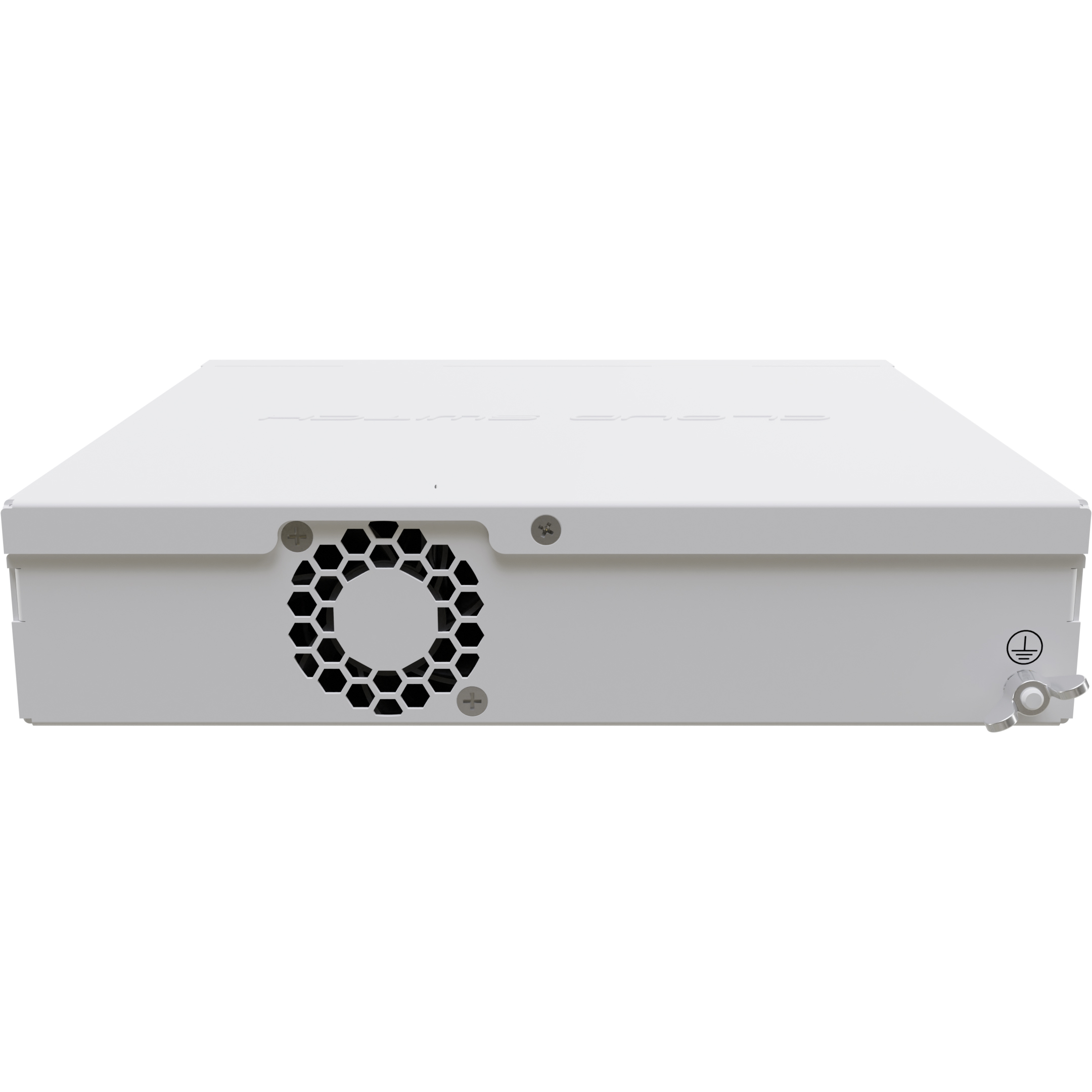

• Cooling type 1 fan

Ethernet

• Number of 2.5G Ethernet ports 8

Fiber

• SFP+ ports 2

Peripherals

• Number of USB ports 1
• USB Power Reset Yes
• USB slot type USB type A
• Max USB current (A) 1

Other

• CPU temperature monitor Yes
• PCB temperature monitor Yes

Certification & Approvals

• Certification CE, EAC, ROHS
• IP 20
