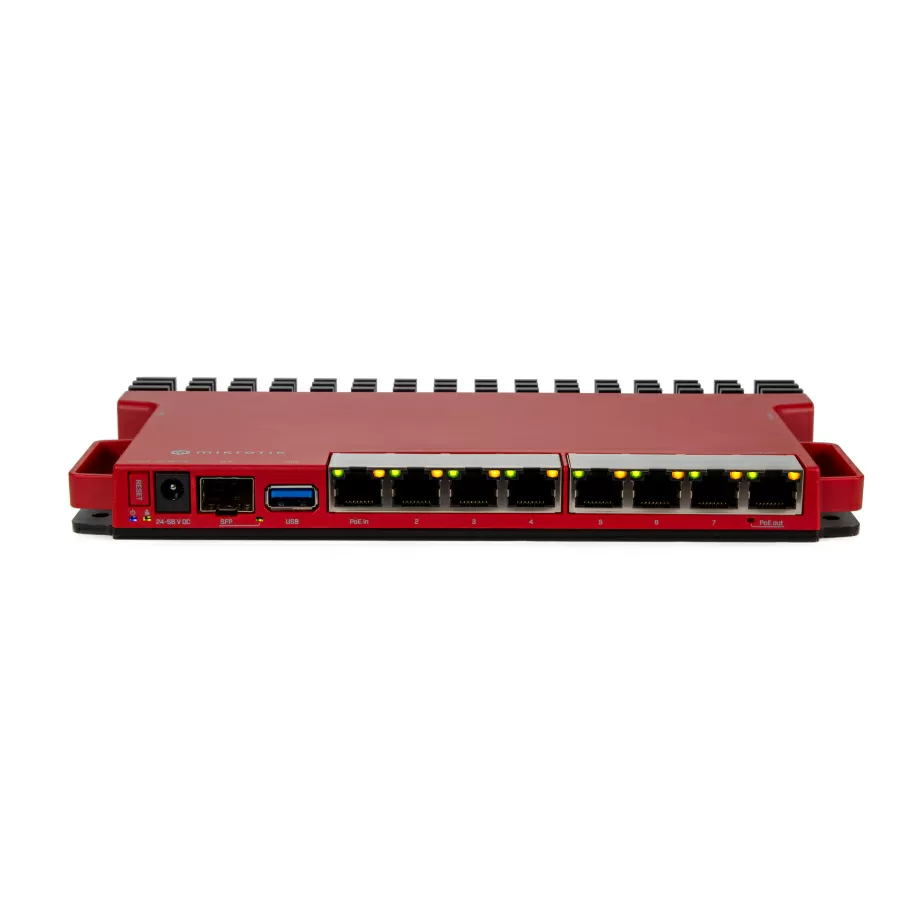

Mikrotik L009UiGS-RM Gigabit Ethernet Router

Mikrotik L009UiGS-RM Gigabit Ethernet Router

The MikroTik L009UiGS-RM sets a new standard for compact yet powerful networking. Built on a dual-core ARM CPU (IPQ-5018) at 800 MHz and equipped with 512 MB RAM and 128 MB NAND storage, it delivers exceptional performance across both routing and advanced features such as IPsec hardware acceleration and container support.

With 8 full 10/100/1000 Mbps RJ-45 ports and a 1× SFP cage that supports up to 2.5 Gbps modules, the L009 accommodates both standard and high-throughput uplinks. One of the RJ45 ports (Ether8) offers passive PoE-out for powering a downstream device, while the first port supports PoE-in or DC jack powering.

Designed for rack-mount use, the RM version ships with 1U rack-mount accessories, allowing you to stack up to four units in a single rack space—ideal for network closets and server rooms. Thanks to a package of advanced features in a space-efficient form factor, the L009UiGS-RM is an excellent choice for SMBs, branch offices, or service providers who need robust routing and switching in a compact design.

Key Features

• ARM-based dual-core 800 MHz CPU brings major performance uplift over older models.

• 8× Gigabit Ethernet ports + 1× SFP port (supports 2.5 Gbps modules) for versatile connectivity.

• PoE-in support (24-56 V) + one RJ45 port with passive PoE-out (ideal for APs or cameras).

• Rack-mountable 1U chassis—mounts up to four units in one rack space for efficient deployment.

• RouterOS v7 with License Level 5 included, enabling advanced routing, firewall, VPN, and container features.

• USB 3.0 Type-A port for LTE modem use or other peripherals—adds flexibility.

• Passive cooling (fanless) with the enclosure acting as a heatsink, built for –40°C to +70°C operation.
