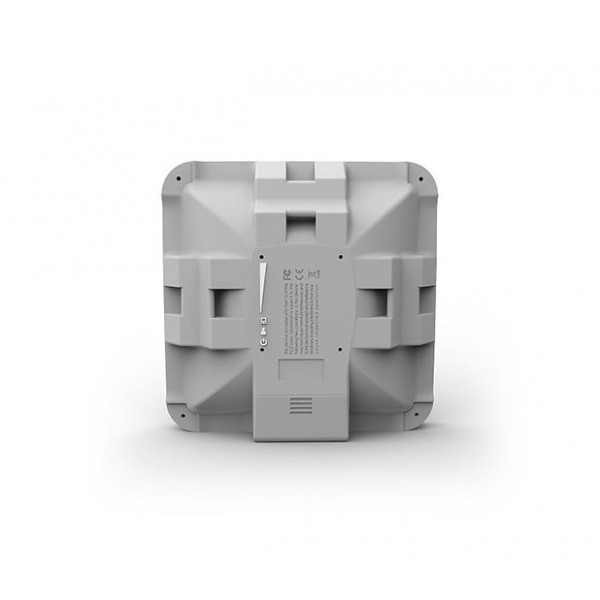

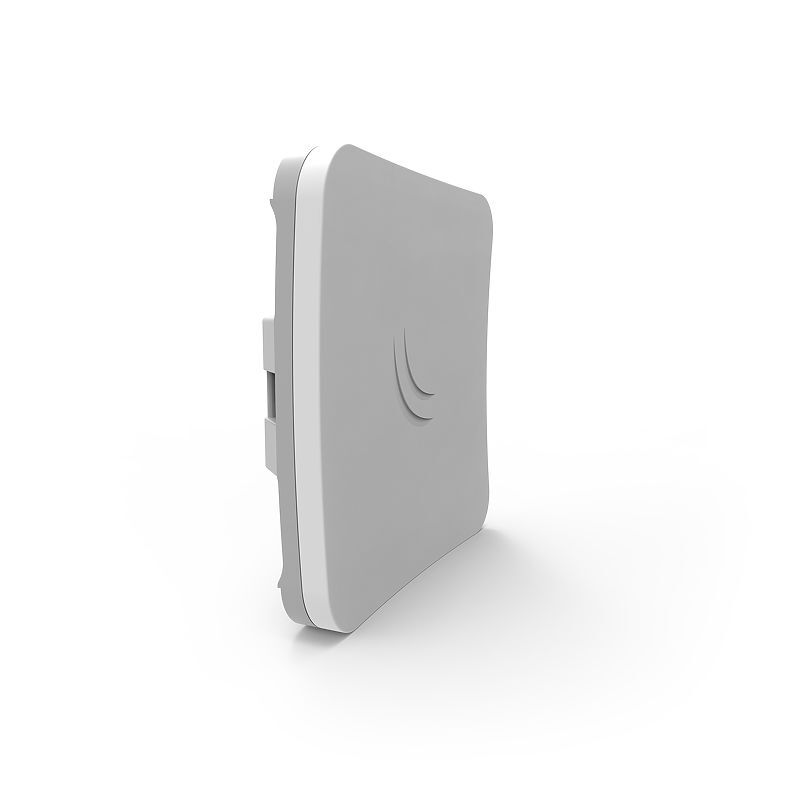

MikroTik SXTsq 5 ac 16dBi, 5GHz Integrated CPE/Backbone | RBSXTSQG-5acD

The MikroTik SXTsq 5 ac | 16dBi, 5GHz Integrated CPE/Backbone RBSXTSQG-5acD is a cutting-edge outdoor wireless device designed for reliable and high-speed point-to-point links and Customer Premises Equipment (CPE) applications. Built on the robust 802.11ac standard, this compact and lightweight device seamlessly integrates advanced wireless technology with superior performance, making it an ideal choice for both small and large-scale networking environments.

Key Features of the SXTsq 5 ac

• Compact and Lightweight Design: Twice as thin as its predecessor, the SXTsq 5 ac offers enhanced portability without compromising on performance, making it perfect for discreet outdoor installations.
• Integrated 16 dBi Antenna: Maintains a powerful 16 dBi antenna gain for extended range and superior signal strength, ensuring stable and fast wireless connections.
• High-Speed Gigabit LAN: Equipped with a 10/100/1000 Mbit Ethernet port, it delivers seamless high-speed data transfer for demanding network applications.
• Enhanced Durability: Designed to withstand harsh outdoor conditions with an IP54 rating, providing protection against dust and water splashes.
• Efficient Power Management: Supports passive Power over Ethernet (PoE) with a wide input voltage range of 10-28 V, simplifying installation by reducing the need for additional power sources.
• Advanced Wireless Standards: Complies with 802.11a/n/ac standards, offering maximum data rates up to 867 Mbit/s for robust and reliable wireless performance.
• Scalable and Versatile: Ideal for point-to-point links and CPE use, making it a versatile solution for expanding your network infrastructure effortlessly.

Performance Highlights

• Superior Processing Power: Powered by the IPQ-4018 quad-core ARM processor at 716 MHz, coupled with 256 MB RAM, the SXTsq 5 ac ensures smooth and efficient network operations.
• Robust Wireless Capabilities: With dual chains and support for Wi-Fi 5 (802.11ac), it provides high throughput and low latency, essential for modern networking demands.
• Long-Lasting Reliability: Boasts an impressive Mean Time Between Failures (MTBF) of approximately 100,000 hours at 25°C, ensuring dependable performance over extended periods.

Technical Specifications

• General
  • Product Code: RBSXTsqG-5acD
  • Architecture: ARM 32bit
  • Operating System: RouterOS (License: 3)
  • Dimensions: 129 x 129 x 34 mm
  • Weight: Lightweight and portable for easy installation
• Processor & Memory
  • CPU: IPQ-4018, Quad-Core at 716 MHz
  • RAM: 256 MB
  • Storage: 16 MB FLASH
• Powering
  • Power Input: Passive PoE (10-28 V)
  • Max Power Consumption: 7 W
  • Cooling: Passive, ensuring silent operation
• Wireless Specifications
  • Frequency: 5 GHz
  • Max Data Rate: 867 Mbit/s
  • Standards: 802.11a/n/ac
  • Antenna Gain: 16 dBi
  • Chains: 2
• Ethernet
  • Ports: 1x 10/100/1000 Ethernet Port
• Environmental
  • Operating Temperature: -40°C to 70°C
  • Operating Humidity: 20% to 80% (Non-condensing)
  • Certifications: CE, FCC, IC, EAC, ROHS
  • Ingress Protection: IP54
