MikroTik SXTsq Lite5 CPE RBSXTSQ5nD

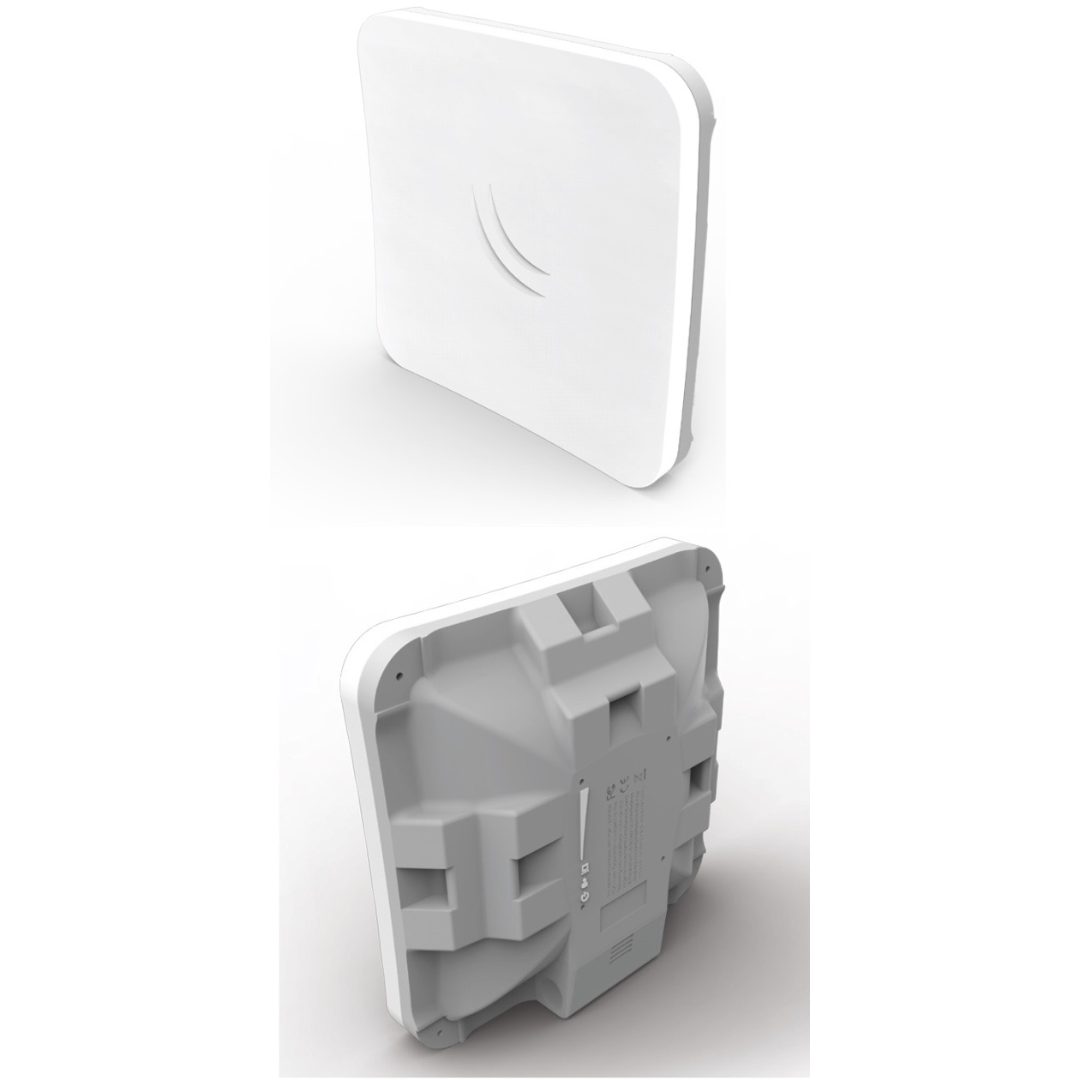

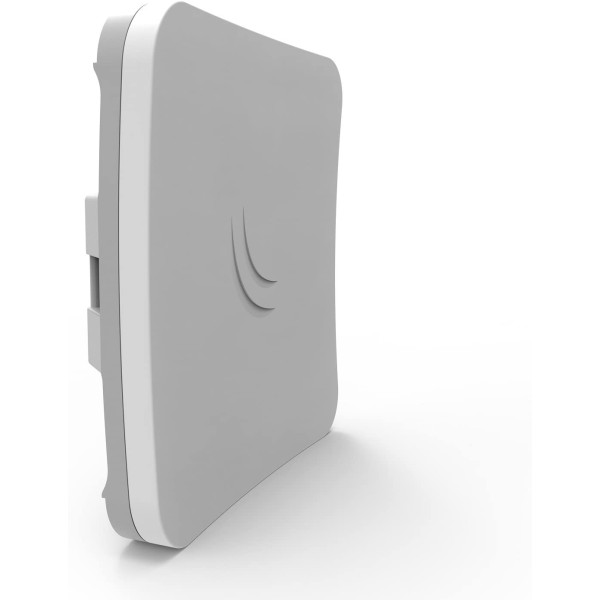

The SXTsq Lite5 also known as RBSXTsq5nD (US Version) is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced – the SXTsq is two times thinner (see photos for comparison). The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).
- Antenna: 5GHz 16dBi
- CPU: Atheros AR9344 600MHz
- Memory: 64MB RAM, 16 MB Flash
- Ethernet: One 10/100 Ethernet port
- OS: MikroTik RouterOS, Level3 license
Specifications
| Details |
| Product code |
RBSXTsq5nD |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
129x129x34mm |
| License level |
3 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$46.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
6 W |
Wireless
| Details |
| Wireless 5 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n |
| Antenna gain dBi for 5 GHz |
16 |
| Wireless 5 GHz chip model |
AR9344 |
| Wireless 5 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
