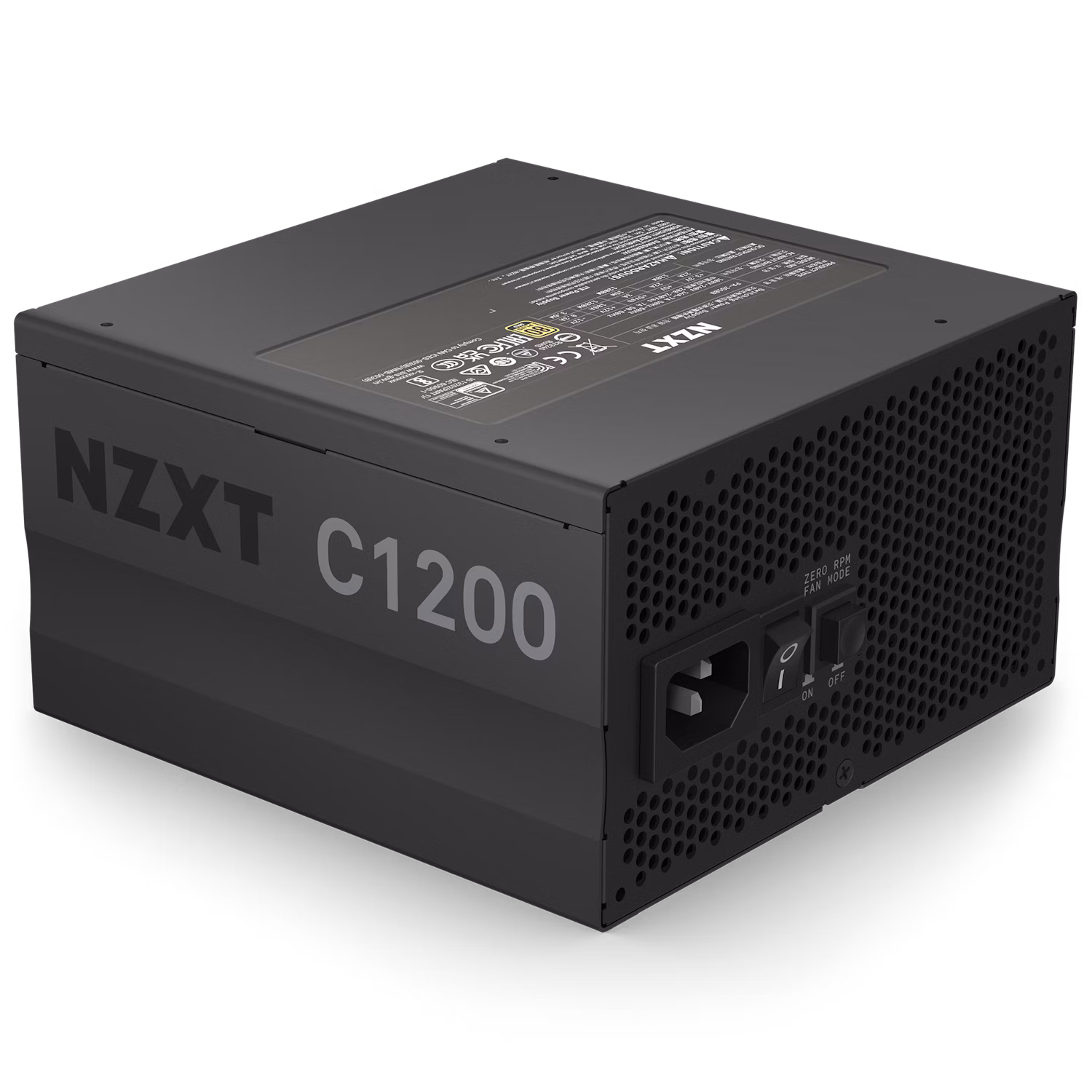

NZXT C1200W Gold Fully-Modular ATX 3.0 PSU
Roll over image to zoom in
- 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
- Built and tested with the strictest standards for trouble-free installation and operation
- 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
- Zero Fan Mode stops the fan when under light loads to reduce system noise
- 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
- Constructed with high-quality Japanese 105°C capacitors
NZXT C1200W Gold Fully-Modular ATX 3.0 PSU
Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold (2023) pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.
- 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
- Built and tested with the strictest standards for trouble-free installation and operation
- 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
- Zero Fan Mode stops the fan when under light loads to reduce system noise
- 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
- Constructed with high-quality Japanese 105°C capacitors
- 10-year warranty
Inside the Box
-
C1200 Gold (2023)1
-
24-Pin ATX Power Cable1
-
4+4-Pin CPU Power Cables1
-
8-Pin CPU Power Cable1
-
6+2-pin PCIe Power Cable2
-
16-Pin (12+4) 12VHPWR PCIe Cable1
-
SATA Cables3
-
Peripherals Cables1
-
6-32 Screws4
-
AC Power Cord1
Tech Specs
Output Connectors
- 24-pin ATX power:1
- 4+4-pin CPU power:1
- 8-pin CPU Cable :1
- 6+2-pin PCIe power :2
- 16-pin (12+4) 12VHPWR PCIe Cable:1
- SATA power :8
- Peripherals :4
Cable Specs
- 24-pin ATX power:600 mm, Nylon sleeving
- 4+4-pin CPU power:700 mm, Nylon sleeving
- 8-Pin CPU Power Cable:700mm, Nylon sleeving
- 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving
- 16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving
- SATA power:500 + 150 mm
- Peripherals:500 + 150 mm
AC Input Rating
- 100 – 240Vac:14A-7A 50Hz-60Hz
DC Output Rating
- +3.3V and +5V:22A (120W)
- +12V:100A (1200W)
- -12V:0.3A (3.6W)
- 5Vsb:3A (15W)
- Total:1200W
Operation
- PF Correction:Active @0.96
- MTBF:100,000 hours
- Temperature:0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
Energy Efficiency
- Rating:80 Plus Gold
- 20% loading:90.97% @115Vac
- 50% loading:91.55% @115Vac
- 100% loading:88.51% @115Vac
Fan Specs
- Dimensions:135 x 135 x 25 mm
- Speed:0-2300 ± 10% RPM
- Airflow:93.02 CFM (Tpy.)
- Noise:44.5 dBA max
- Bearing:Fluid Dynamic Bearing (FDB)
