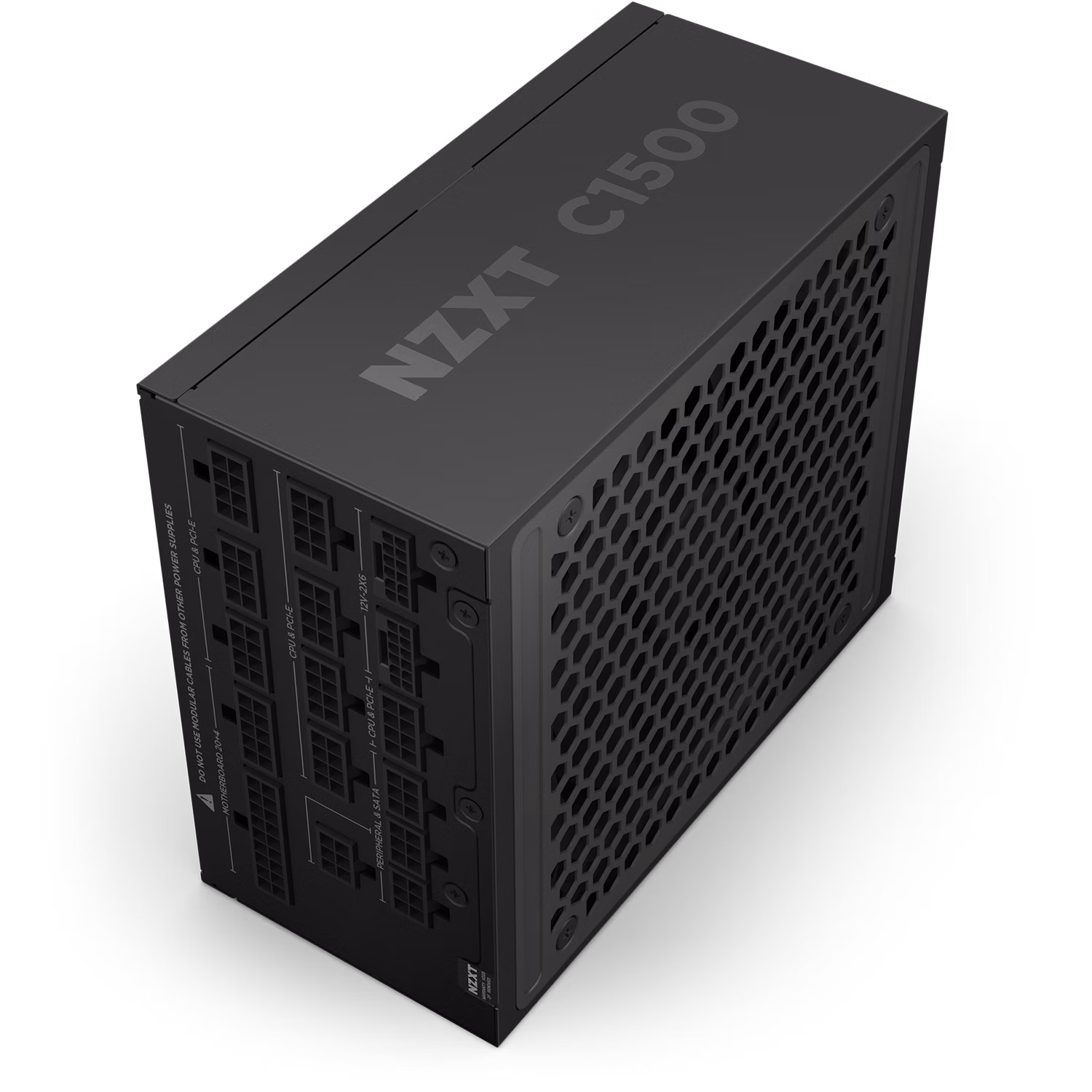

NZXT C1500 Platinum ATX 3.1
Roll over image to zoom in
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
- Includes two 16-pin 12V-2×6 PCIe 5.1 cables, each capable of delivering over 600 watts to NVIDIA® GeForce RTX™ RTX 50 Series graphics cards.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
- Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
- 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
NZXT C1500 Platinum ATX 3.1
The NZXT C1500 Platinum PSU offers highly efficient, digitally-controlled power, ATX 3.1 compliance, and PCIe 5.1 connectivity with a high-performance magnetic levitation fan.
- Designed with ATX 3.1 and PCIe 5.1 compliance to power current and future generations of high-performance GPUs and CPUs.
- Includes two 16-pin 12V-2×6 PCIe 5.1 cables, each capable of delivering over 600 watts to NVIDIA® GeForce RTX™ RTX 50 Series graphics cards.
- Digital power enables precise voltage regulation, resulting in higher efficiency and lower ripple noise.
- Exceeding 80 Plus Platinum standards, the 94% efficiency reduces power consumption for lower monthly bills and cooler, quieter operation.
- Certified for ultra-high efficiency and ultra-low noise with Cybenetics Titanium efficiency and Cybenetics A- noise level ratings.
- 140mm magnetic levitation fan uses air-suspended blades for low noise, high airflow, and a long lifespan.
- Constructed using high-quality 105°C Japanese capacitors for excellent reliability and long-lasting performance.
- Fully modular design simplifies cable management, allowing for the connection of only necessary cables.
- Compact 180mm form factor optimizes valuable case space while promoting improved airflow.
Inside the Box
-
C1500 Platinum1
-
24-pin ATX Power Cable1
-
4+4-pin CPU Power Cable1
-
8-pin CPU Power Cable1
-
6+2-pin PCIe Power Cable6
-
16-pin (12+4) 12V-2×6 PCIe Cable2
-
SATA Cable3
-
Peripherals Cable1
-
6-32 Screws4
-
AC Power Cord1
Tech Specs

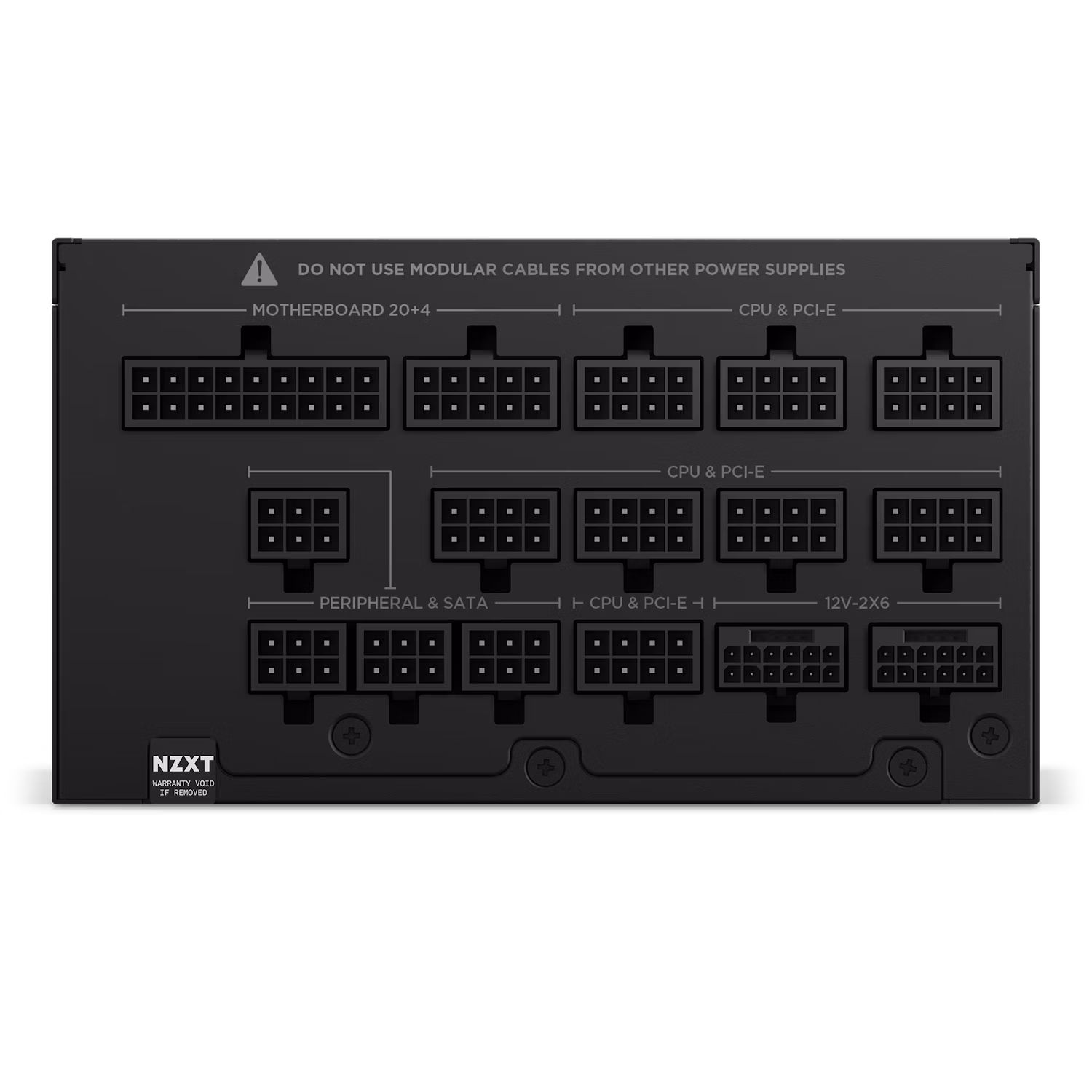

Output Connectors
- 24-pin ATX Power Cable:1
- 4+4-pin CPU Power Cable:1
- 8-pin CPU Power Cable:1
- 6+2-pin PCIe Power Cable:6
- 16-pin (12+4) 12V-2×6 PCIe Cable:2
- SATA Cable:12
- Peripherals Cable:4
Cable Specs
- 24-pin ATX Power Cable:600mm with nylon sleeving
- 4+4-pin CPU Power Cable:700mm with nylon sleeving
- 8-pin CPU Power Cable:700mm with nylon sleeving
- 6+2-pin PCIe Power Cable:650mm with nylon sleeving
- 16-pin (12+4) 12V-2×6 PCIe Cable:650mm with nylon sleeving
- SATA Cable:500 + 150 mm with nylon sleeving
- Peripherals Cable:500 + 150 mm with nylon sleeving
AC Input Rating
- 100 – 240Vac:15A-9A 50Hz-60Hz
- 200 – 240Vac:9A 50Hz-60Hz
DC Output Rating
- 3.3V / +5V:22A (120W)
- 12V:125A (1500W)
- 5Vsb:3A (15W)
- Total:1500W (115-240Vac) / 1300W (100-115Vac)
Energy Efficiency
- Rating:80 Plus Platinum
- 10% loading:92% @115Vac
- 20% loading:94% @115Vac
- 50% loading:93.8% @115Vac
- 100% loading:90.8% @115Vac
Electrical Features
- PF Correction:Active @0.99
- Protections:OVP (Overvoltage Protection) / UVP (Undervoltage Protection) / SCP (Short Circuit Protection) / OTP (Over Temperature Protection) / OPP (Overpower Protection) / OCP (Overcurrent Protection) /
Fan Specs
- Dimensions:140 x 140 x 25 mm
- Speed:2500 ± 10% RPM
- Airflow:125 CFM (Tpy.)
- Noise:41.0 dBA max
- Bearing:Magnetic Levitation Bearing (ML)
Operation
- MTBF:100,000 hours
- Temperature:0 – 50 °C
Dimensions
- Width:5.91 in / 150 mm
- Height:3.39 in / 86 mm
- Depth:7.09 in / 180 mm
