NZXT N7 B650E AMD Motherboard with Wi-Fi and NZXT CAM Features
KSh 0.00
- 16+2+1 Power phase design with 90A Smart Power Stage
- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels
NZXT N7 B650E AMD Motherboard with Wi-Fi and NZXT CAM Features
Leverage the full value of your AMD Ryzen™ 9000, 8000, and 7000 Series Processors with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.
Maximum Control:
Easily customize lighting and cooling modes via NZXT CAM, with access to six RGB lighting channels. Configure lights and fans from any manufacturer.
Finishing Touch:
A white or black metal cover conceals the inner workings, blending seamlessly with your case. The heat fins have been expanded to cool the PCIe Gen 5 enabled NVMe drive slot.
Ready To Rock:
Integrated Wi-Fi 6E, rear I/O shield, and clever port placement makes the build process easy—plenty of room on board for upgrades down the line.
Stunning Craftsmanship:
Build your dream system with a full metal cover that blends aesthetically with black or white cases for a seamless backdrop for your components.
CPU and Socket:
Supports AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Processors.
- 16+2+1 Power phase design with 90A Smart Power Stage
- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels
Inside the Box
-
N7 B650E Motherboard1
-
SATA cables (2 x 90°, 2 x 180°)4
-
M.2 screws2
-
Wireless antenna2
Tech Specs
CPU
- Supports AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Processors:Supported
Chipset
- AMD:B650E
Memory
- DIMM Slots:4, DDR5 only
- Max Memory Support:128GB
- Memory Architecture:Dual-Channel
- OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 7200+ (OC). Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information.
- Extreme Memory Profile (XMP):Supported
- EXTended Profiles for Overclocking (EXPO):Supported
Expansion Slots
- PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks)
- PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks)
- M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1
Integrated Graphics
- Integrated AMD RDNA™ 2 graphics:Supported
- HDMI 2.1 TMD Compatible:1
- HDR:Supported
- HDCP 2.3:max. resolution up to 4K 60Hz
Storage
- M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode):1
- M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1
- M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1
- SATA 6Gb/s ports:4
- RAID 0/1/10 for SATA storage devices:Supported
- RAID 0/1/10 for M.2 NVMe storage devices:Supported
- NVMe SSD as boot disks:Supported
LAN
- Realtek®:RTL8125BG 2.5G LAN
Wireless
- 802.11ax Wi-Fi 6E Module:Supported
- Bluetooth:V5.2
Audio
- Realtek®:ALC1220 Codec

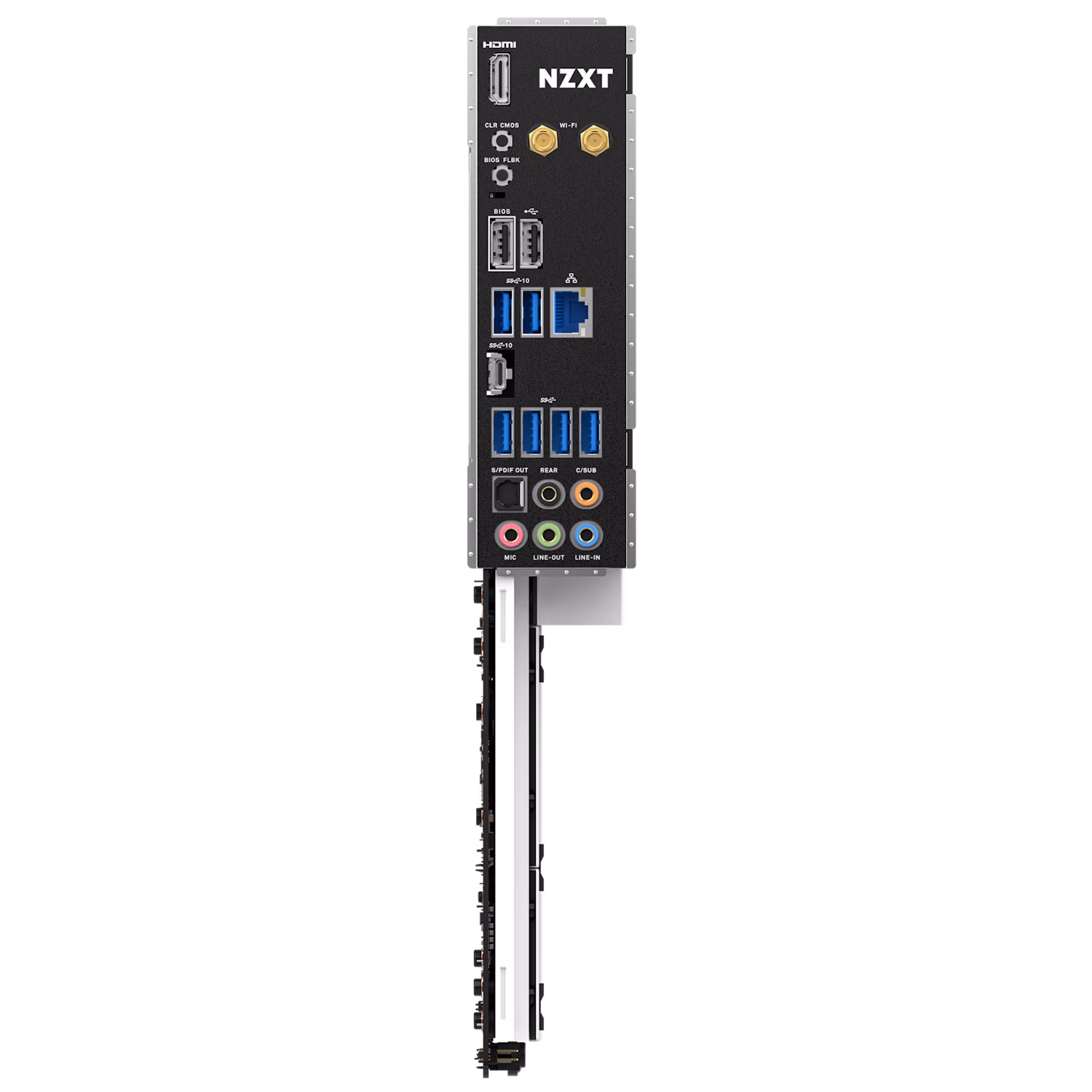

Rear I/O
- Wireless antenna SMA connectors:2
- HDMI™ port:1
- USB 2.0:2
- USB 3.2 Gen 2 Type-C port:1
- USB 3.2 Gen 2 ports:2
- USB 3.2 Gen 1 ports:4
- Clear CMOS button:1
- BIOS Flashback button:1
- LAN (RJ45) port:1
- Audio jacks:5
- Optical S/PDIF Out port:1
Internal I/O
- 24-pin ATX power connector:1
- 8+4-pin ATX 12V power connector:1
- 4-pin CPU_FAN connector:1
- 4-pin AIO_PUMP connector:1
- 4-pin SYS_FAN connectors:5
- NZXT RGB LED connectors:4
- 5V ARGB LED connector:2
- USB 2.0 header (Up to 6 USB 2.0 ports):3
- USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2
- USB 3.2 Gen2x2 front panel header (For USB Type-C):1
- Front panel audio connector:1
- Power button:1
- Reset button:1
- POST LEDs:4
Additional information
| Color | White, Black |
|---|
