Name: SMART-51L Dual-Sided ID Card Printer &amp; Laminator
SKU: 14700
Availability: InStock

Specification

Detail

Model

SMART-51L

Print Mode

Dual-Sided

Printing Technology

Direct Dye-Sublimation

Print Area

Edge-to-Edge

Resolution

300 dpi (Colour & Mono), 600/1200 dpi (Mono only)

Card Feeding

Automatic

Card Size

ISO CR80 / ISO CR79 (Optional)

Card Thickness

0.38 mm – 1.0 mm

Supported Card Types

PVC, PET, Composite PVC

Print Speed (Mono)

~5 sec/card (~720 cards/hour)

Print Speed (Colour)

YMCKO ~17 sec/card (~212 cards/hour)

Print & Lamination Speed

YMCK + Lamination ~22 sec/card

Input Card Hopper

100 cards (200 with cover open)

Output Card Hopper

Front: 40 / Rear: 100 (Optional stacker)

Lamination Modes

Single & Dual (clear & holographic films)

System Memory

64 MB RAM

Control Interface

2-Line LCD + 2 LED Buttons

Communication

USB (standard); Ethernet & Wi-Fi (optional)

Operating Systems

Windows / macOS / Linux

Power Supply

Free Voltage AC100/220V

Power Consumption

96 W

Dimensions (mm)

165 × 675 × 210

Weight

8.8 kg

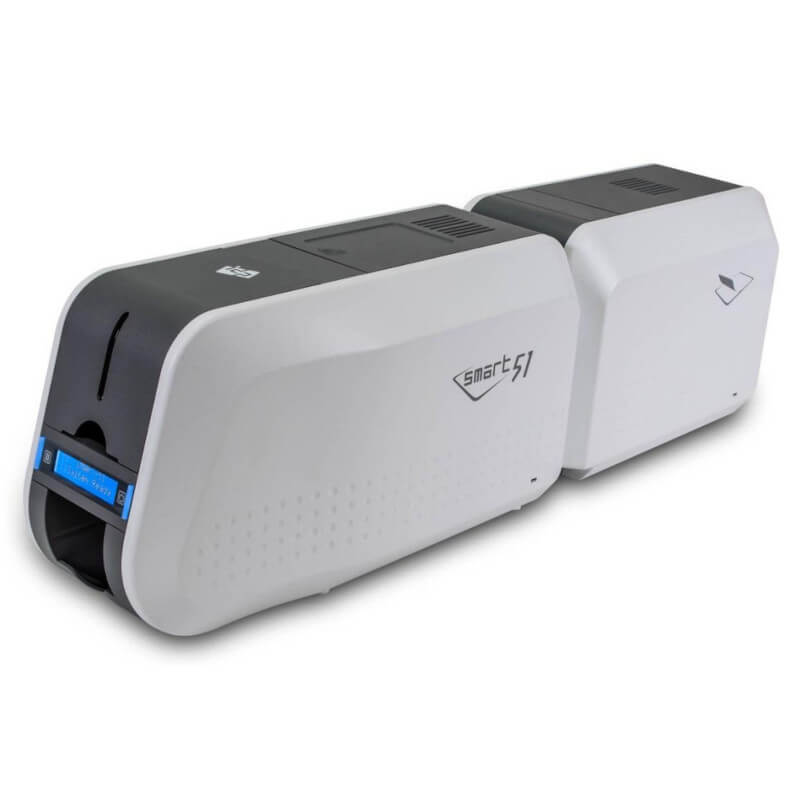

SMART-51L Dual-Sided ID Card Printer & Laminator

The SMART-51L Dual-Sided Laminating ID Card Printer is a premium dye-sublimation card printer with built-in lamination designed for organisations that need durable, professional, and secure ID cards. It combines high-quality dual-sided printing with in-line lamination for cards that resist wear, fading, scratching, and tampering, making them ideal for identification badges, access control cards, membership cards, student IDs, and secure credentials. Using Enhanced FINE™ Imaging Technology, the SMART-51L produces rich colours and crisp monochrome prints with 300 dpi resolution, and its patented 8-second heat-up time ensures fast readiness for print-and-laminate jobs. The laminated layer boosts card longevity and enhances security, especially when combined with optional holographic laminate films. This robust printer supports automatic card feeding, an intuitive LCD control interface, and multiple optional encoding modules (magnetic stripe, contact chip, and contactless) plus networking upgrades like Ethernet and Wi-Fi for flexible deployment.

Features

Dual-sided ID card printing with in-line lamination for added durability and security.
Direct dye-sublimation printing with edge-to-edge output for professional-grade visuals.
300 dpi resolution with advanced imaging for sharp text and vibrant colour.
Patented 8-second heat-up lamination technology for quick card production.
High throughput: Dual-sided laminated cards at up to ~164 cards/hour.
Automatic card feeding and LCD/LED controls for easy operation.
Support for ISO CR80 / CR79 cards with thickness 0.38–1.0 mm.
Optional holographic laminate films for enhanced visual security.
Upgradeable encoders: Magnetic stripe, contact smart card, and contactless smart card modules.
Field-upgradable connectivity: Ethernet and Wi-Fi options for network printing.
Compatible with Windows, macOS, and Linux platforms.
