Name: SMART-51S Single-Sided ID Card Printer
SKU: 14694
Availability: InStock

Specification

Detail

Model

SMART-51S

Printing Mode

Single-Sided

Printing Technology

Direct Dye-Sublimation

Print Resolution

300 dpi (Colour/Mono); 600/1200 dpi (Mono only)

Print Speed

Mono: 5 sec/card (720 cph) • Colour: 17 sec/card (212 cph)

Card Feeding

Automatic

Card Size

ISO CR80 (Standard); ISO CR79 (Option)

Card Thickness

0.38 mm – 1.0 mm

Card Types

PVC, PET, Composite PVC

Hopper Capacity

100 cards (standard) / 200 cards (cover open)

Output Hopper

Front: 40 cards • Rear stacker: 100 cards (optional)

Memory

64 MB RAM

Display

2-Line LCD + LED Buttons

Connectivity

USB (standard); Ethernet/WiFi (optional)

Power

AC100/220 V (Free Voltage); ~48 W

Supported OS

Windows, macOS, Linux

Optional Encoders

Mag Stripe, Contact & Contactless

Security Options

UV Printing, SmartMark, Lock Options

Dimensions

165 × 390 × 210 mm

Weight

4.5 kg

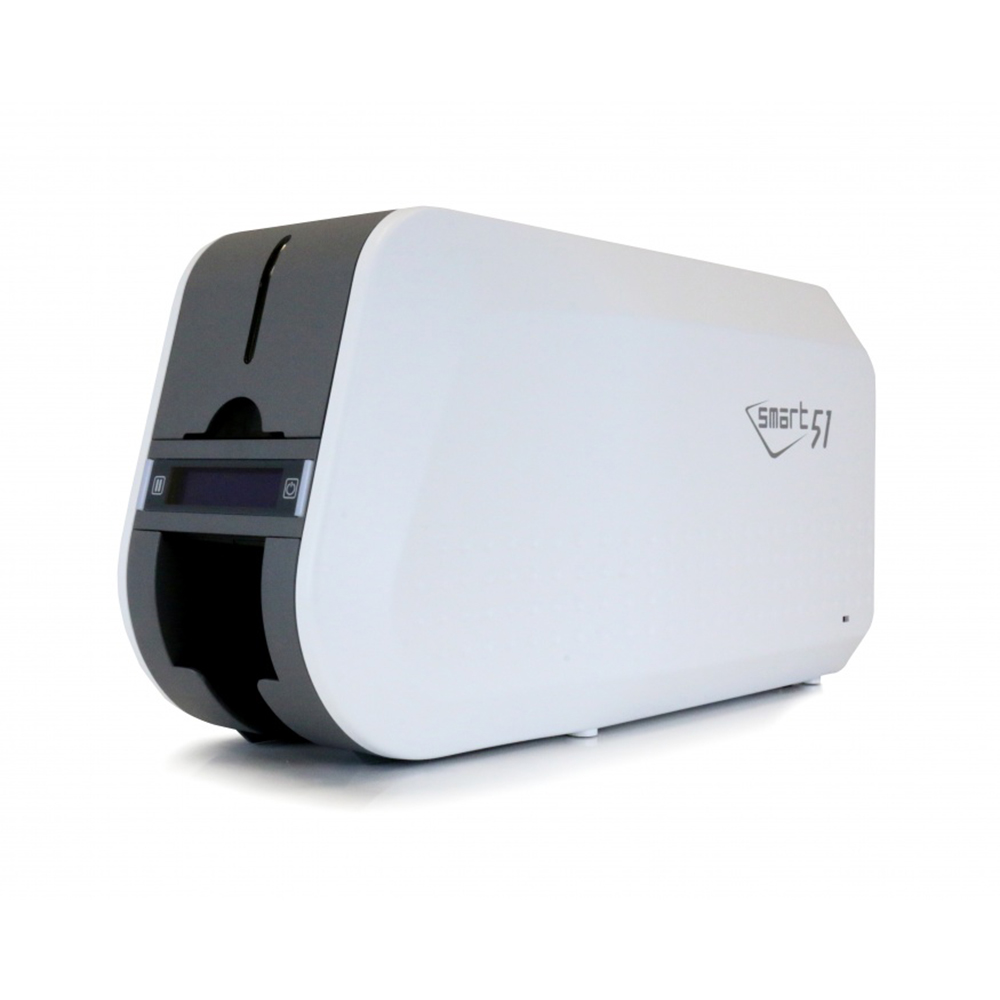

SMART-51S Single-Sided ID Card Printer

The SMART-51S Single-Sided ID Card Printer offers reliable, high-quality card printing for organisations that need professional-grade identification, access control, membership, or event badges. It uses direct dye-sublimation printing to deliver vibrant edge-to-edge colour and crisp monochrome output with resolutions up to 300 dpi colour and up to 1200 dpi in monochrome mode. Designed for ease of use and high throughput, the SMART-51S features automatic card feeding, a two-line LCD display with LED buttons for status and settings, and a durable metal frame for long-lasting performance. Advanced upgradable modules (like dual-sided printing, Ethernet, Wi-Fi and encoding) make this printer adaptable to expanding business needs. With optional encoding support for magnetic stripe, contact smart cards, and contactless cards, it’s ideal for security printers in access control and ID issuance environments.

Features

Direct dye-sublimation printing with edge-to-edge output for professional card graphics.
300 dpi colour & mono printing plus 600/1200 dpi for high-resolution monochrome.
Single-sided printing standard; upgradable to dual-sided with a flipper module.
Fast print speeds — mono as fast as 5 sec/card (≈720 cph) and colour up to 17 sec/card (≈212 cph).
Automatic card feeding with large hopper capacity (100 cards; 200 with cover open).
Supports ISO CR80 and optional CR79 card sizes with thickness from 0.38 mm to 1.0 mm.
Supports PVC, PET, and composite PVC cards for versatile applications.
Optional encoding modules: Magnetic stripe, contact, and contactless.
Upgradable connectivity: USB standard; Ethernet and Wi-Fi optional.
Low-cost UV printing for simple security features.
Bundled SMART ID card design software included.
