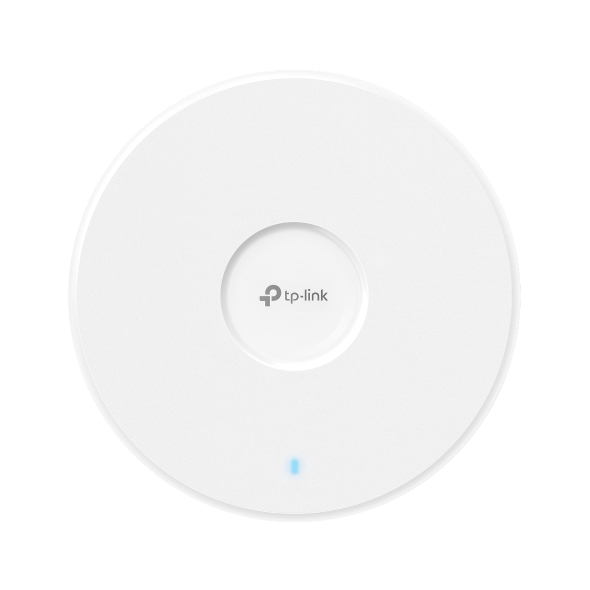

TP-Link Omada EAP772 BE9300 Tri-Band Wi-Fi 7 Access Point – 9.3Gbps, 2.5G PoE
KSh 26,000.00KSh 30,000.00 (-13%)
TP-Link Omada EAP772 BE9300 Tri-Band Wi-Fi 7 Access Point – 9.3Gbps, 2.5G PoE
TP-Link Omada EAP772 BE9300 Tri-Band Wi-Fi 7 Access Point delivers up to 9.3Gbps, with 6GHz, 5GHz and 2.4GHz bands, 320MHz channels, MLO, 2.5GbE, PoE, Omada Mesh and centralized management.
| Specification | Details |
|---|---|
| Brand | TP-Link |
| Product Family | Omada |
| Model | EAP772 |
| Regional Version | EU / BE9300 |
| Product Type | Ceiling-Mount Tri-Band Wi-Fi 7 Access Point |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Wi-Fi Generation | Wi-Fi 7 |
| Wi-Fi Class | BE9300 |
| Frequency Bands | 2.4GHz + 5GHz + 6GHz |
| 2.4GHz Speed | Up to 574Mbps |
| 5GHz Speed | Up to 2,880Mbps |
| 6GHz Speed | Up to 5,760Mbps |
| Combined Wireless Speed | Up to 9,214Mbps |
| Channel Bandwidth | Up to 320MHz |
| Wireless Technologies | MLO, Multi-RU, 4K-QAM, OFDMA, MU-MIMO and BSS Coloring |
| 2.4GHz Antenna | 2 × 4.0dBi |
| 5GHz Antenna | 2 × 5.0dBi |
| 6GHz Antenna | 2 × 5.0dBi |
| Bluetooth | Bluetooth 5.2, 1 × 4.0dBi |
| Ethernet Port | 1 × 2.5Gbps RJ45 |
| Ethernet Speed | 10/100/1000/2500Mbps |
| PoE | 802.3at PoE |
| DC Power | 12V / 2.5A |
| Maximum Power Consumption | 24.05W via PoE / 20.92W via DC |
| Coverage | Up to approximately 140m² / 1,500ft²* |
| Concurrent Clients | 380+* |
| Maximum SSIDs | 24 |
| VLAN | Supported |
| Captive Portal | Supported |
| Rogue AP Detection | Supported |
| Wireless Client Isolation | Supported |
| MAC Filtering | Up to 4,000 MAC addresses |
| Wireless Security | WPA/WPA2/WPA3 Personal & Enterprise, OWE |
| Mesh | Omada Mesh |
| Roaming | Seamless Roaming – 802.11k/v/r |
| Management | Omada Software Controller, Hardware Controller, Omada App and Cloud-Based Management |
| Mounting | Ceiling / Wall Mounting |
| Dimensions | 220 × 220 × 32.5 mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90% RH, Non-Condensing |
| Applications | Enterprise Wi-Fi, Offices, Hotels, Schools, Conference Rooms, Retail and High-Density Wireless Networks |
TP-Link Omada EAP772 BE9300 – Tri-Band Wi-Fi 7 Access Point
The TP-Link Omada EAP772 BE9300 is a high-performance Tri-Band Wi-Fi 7 ceiling-mount access point designed for business, enterprise, hospitality, education and high-density wireless deployments. The EU/BE9300 version combines 2.4GHz, 5GHz and 6GHz bands for a theoretical combined wireless rate of up to 9,214Mbps.
The EAP772 BE9300 delivers up to 574Mbps on 2.4GHz, 2,880Mbps on 5GHz and 5,760Mbps on 6GHz. Its 6GHz band provides access to cleaner spectrum, while Wi-Fi 7 technologies such as 320MHz channels, Multi-Link Operation (MLO), Multi-RU, 4K-QAM and MU-MIMO improve capacity and efficiency.
For wired connectivity, the access point includes one 2.5Gbps Ethernet port and supports 802.3at PoE, allowing both network connectivity and power to be delivered through a single Ethernet cable. It can also operate using a 12V DC power adapter.
The EAP772 integrates with the TP-Link Omada ecosystem, supporting centralized management, Omada Mesh, seamless roaming, VLANs, captive portal authentication, rogue AP detection and advanced wireless security.
Key Features
- Wi-Fi 7 / IEEE 802.11be
- BE9300 Tri-Band Wi-Fi 7
- Up to 9,214Mbps combined wireless speed
- 2.4GHz: up to 574Mbps
- 5GHz: up to 2,880Mbps
- 6GHz: up to 5,760Mbps
- 320MHz channel bandwidth
- Multi-Link Operation (MLO)
- Multi-RU
- 4K-QAM
- OFDMA
- MU-MIMO
- BSS Coloring
- Seamless Roaming
- Omada Mesh
- 1 × 2.5Gbps Ethernet port
- 802.3at PoE support
- 12V DC power option
- Centralized Omada management
- Cloud-based management support
- Captive Portal
- VLAN support
- Rogue AP Detection
- Up to 24 SSIDs
- WPA3 security
- Bluetooth 5.2
- Ceiling/wall mounting
- Ultra-thin design
