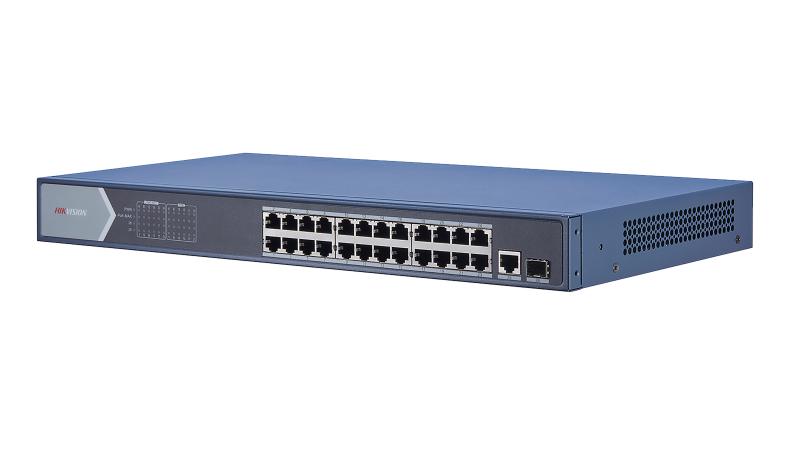

Hikvision DS‑3E0526P‑E 24‑Port Gigabit PoE Unmanaged Switch

Hikvision DS‑3E0526P‑E 24‑Port Gigabit PoE Unmanaged Switch

The Hikvision DS‑3E0526P‑E is a high‑capacity unmanaged Gigabit Ethernet switch designed to power and connect multiple devices such as IP cameras, wireless access points, or other PoE‑enabled equipment—all via the same cable.

It includes 24 × Gigabit RJ45 PoE ports, plus 1 × Gigabit RJ45 uplink port and 1 × Gigabit SFP fiber uplink port—offering flexible connectivity for core networking, NVR backbones, or fiber‑linked segments.

The DS‑3E0526P‑E supports IEEE 802.3af and IEEE 802.3at (PoE/PoE+), delivering up to 30 W per port and a generous total PoE budget up to 370 W, making it suitable for powering many high‑consumption devices simultaneously.

In terms of throughput, it delivers a switching capacity of 52 Gbps, a packet forwarding rate of 38.69 Mpps, an 8 K MAC address table, and a 4.1 Mbit internal cache—more than enough to handle heavy network and video traffic loads like multi‑camera surveillance systems.

Built with a metal chassis, the switch supports rack‑mount installation (mounting ears included) or desk mounting—suitable for server racks or structured wiring closets.

To improve reliability—especially in regions with unstable power—the DS‑3E0526P‑E provides 6 kV surge protection on PoE ports, helping safeguard connected devices from voltage spikes.

Key Features:

• 24 × Gigabit RJ45 PoE ports + 1 × Gigabit RJ45 uplink + 1 × Gigabit SFP fiber uplink.

• Supports IEEE 802.3af / 802.3at—up to 30 W per port; 370 W total PoE budget.

• 52 Gbps switching capacity; 38.69 Mpps forwarding rate; 8 K MAC table; 4.1 Mbit internal cache.

• Store‑and‑forward, wire‑speed, non‑blocking switching—stable performance under heavy load.

• Metal chassis with rack‑mount support; suitable for 19″ rack installation or desktop use.

• 6 kV surge protection on PoE ports—improved safety for connected devices.

• Plug‑and‑play unmanaged design—no configuration required.
