Hikvision DS-3E0105D-O 5-Port 10/100 Mbps Desktop Ethernet Switch
Hikvision DS-3E0105D-O 5-Port 10/100 Mbps Desktop Ethernet Switch
The Hikvision DS-3E0105D-O is a compact unmanaged 5-port 10/100 Mbps Ethernet switch with auto-MDI/MDIX, store-and-forward switching, MAC-address auto-learning, plug-and-play setup, and desktop or wall mounting—ideal for small offices, homes, or IP camera networks.
Specification Detail Model DS-3E0105D-O Ports 5 × 10/100 Mbps RJ45 Switching Capacity 1 Gbps Packet Forwarding Rate 0.74 Mpps MAC Address Table 2,000 entries Switching Method Store-and-forward Auto MDI/MDIX Yes Housing ABS plastic Installation Desktop or Wall-mount Power Supply 5 V DC, 0.6 A Max Power Consumption ≤ 3 W Surge Protection 2 kV Operating Temperature 0°C – 40 °C Storage Temperature –40 °C – 85 °C Operating Humidity 5% – 95% (non-condensing) Dimensions (W × H × D) 83.0 × 22.0 × 52.0 mm Net Weight 0.093 kg KSh 1,000.00KSh 1,500.00Hikvision DS-3E0105D-O 5-Port 10/100 Mbps Desktop Ethernet Switch
KSh 1,000.00KSh 1,500.00 -

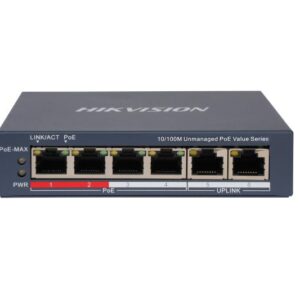

Hikvision DS-3E0106P-E/M(B) 6-Port 10/100 Mbps Unmanaged PoE + Uplink Switch
Hikvision DS-3E0106P-E/M(B) 6-Port 10/100 Mbps Unmanaged PoE + Uplink Switch
The Hikvision DS-3E0106P-E/M(B) is a 6-port unmanaged Fast Ethernet switch (4 PoE + 2 uplink ports) with IEEE 802.3af/at PoE support, up to 35 W PoE budget, 300 m long-range transmission support, 6 kV surge protection, and plug-and-play design—ideal for small offices, IP camera networks, and SOHO installations.
Specification Detail Model DS-3E0106P-E/M(B) Ports 4 × 10/100 Mbps PoE ports, 2 × 10/100 Mbps RJ45 uplink ports PoE Standard IEEE 802.3af / IEEE 802.3at Max PoE Power per Port 30 W Total PoE Power Budget 35 W Switching Capacity 1.2 Gbps Packet Forwarding Rate 0.89 Mpps MAC Address Table 2 K entries Internal Cache/Buffer 768 Kbits Surge Protection 6 kV (PoE ports) Power Supply 48 V DC, 0.8 A Max Power Consumption ≈ 38 W Housing Metal, fan-free Installation Mode Desk-Mounted or Wall-Mounted Dimensions (W × H × D) 145 mm × 68.45 mm × 25.6 mm Net Weight ≈ 0.27 kg Operating Temperature 0°C to 40 °C Storage Temperature –40 °C to 85 °C Operating Humidity 5% – 95% (non-condensing) KSh 4,700.00KSh 6,500.00Hikvision DS-3E0106P-E/M(B) 6-Port 10/100 Mbps Unmanaged PoE + Uplink Switch
KSh 4,700.00KSh 6,500.00 -
Hikvision DS-3E0108D-O 8-Port 10/100 Mbps Desktop Ethernet Switch
Hikvision DS-3E0108D-O 8-Port 10/100 Mbps Desktop Ethernet Switch
The Hikvision DS-3E0108D-O is a compact unmanaged 8-port Fast Ethernet switch with auto-MDI/MDIX, store-and-forward switching, MAC address auto-learning, plug-and-play setup, desktop or wall-mount installation, and 1.6 Gbps switching capacity—ideal for expanding wired networks in small offices, homes, or surveillance systems.
Specification Detail Model DS-3E0108D-O Ports 8 × 10/100 Mbps RJ45 (auto MDI/MDIX) Switching Capacity 1.6 Gbps Packet Forwarding Rate 1.19 Mpps MAC Address Table 2,000 entries (2 K) Switching Method Store-and-forward Internal Cache 768 kbits Housing ABS Plastic Installation Desktop or Wall-mount Power Supply 5 V DC, 0.6 A Max Power Consumption 3 W Surge Protection 2 kV Operating Temp. 0°C to 40 °C Storage Temp. –40 °C to 85 °C Operating Humidity 5% – 95% (non-condensing) Net Weight 0.059 kg Dimensions (W × H × D) 124 × 22 × 52 mm KSh 1,000.00KSh 2,000.00Hikvision DS-3E0108D-O 8-Port 10/100 Mbps Desktop Ethernet Switch
KSh 1,000.00KSh 2,000.00 -
Hikvision DS-3E0116R-O 16-Port 10/100 Mbps Desktop / Rack Ethernet Switch
Hikvision DS-3E0116R-O 16-Port 10/100 Mbps Desktop/Rack Ethernet Switch
The Hikvision DS-3E0116R-O is a 16-port 10/100 Mbps unmanaged switch with metal housing, fan-free design, plug-and-play installation, 3.2 Gbps switching capacity, 6 kV surge protection, and support for desktop, wall-mount, or rack mounting—ideal for small offices, CCTV networks, or home labs.
Specification Detail Model DS-3E0116R-O Ports 16 × 10/100 Mbps RJ45 (auto-MDI/MDIX) Switching Capacity 3.2 Gbps Packet Forwarding Rate 2.38 Mpps MAC Address Table 8,000 entries (8 K) Internal Cache 2 Mbits General Housing Metal, fan-free design Installation Desktop, Wall-mount, or Rack mount Net Weight 1.1 kg Gross Weight 1.5 kg Dimensions (W × H × D) 257.0 mm × 44.5 mm × 175.8 mm Power Supply 220 VAC, 50/60 Hz Max Power Consumption 6.6 W Surge Protection 6 kV Operating Temperature 0°C – 40 °C Storage Temperature –40 °C – 85 °C Operating Humidity 5% – 95% (non-condensing) Features Unmanaged switch, plug-and-play, auto-MDI/MDIX, fan-free metal build, surge protection KSh 4,650.00KSh 8,000.00Hikvision DS-3E0116R-O 16-Port 10/100 Mbps Desktop / Rack Ethernet Switch
KSh 4,650.00KSh 8,000.00 -
Hikvision DS-3E0310P-E/M(B) 8-Port PoE Fast-Ethernet + 2-Port Gigabit Unmanaged Switch
Hikvision DS-3E0310P-E/M(B) 8-Port PoE Fast-Ethernet + 2-Port Gigabit Unmanaged Switch
The Hikvision DS-3E0310P-E/M(B) is an unmanaged PoE switch with 8 × 10/100 Mbps PoE ports and 2 × Gigabit uplink ports, supporting IEEE 802.3af/at, up to 80 W PoE budget, 300 m extended transmission, 6 kV surge protection, and plug-and-play setup—ideal for IP cameras, access points, and small-office networks.
Specification Detail Model DS-3E0310P-E/M(B) Ports 8 × 10/100 Mbps PoE RJ45, 2 × Gigabit RJ45 uplink PoE Standard IEEE 802.3af / IEEE 802.3at Max PoE Power per Port 30 W Total PoE Power Budget 80 W Long-Range Transmission (PoE ports) Up to 300 m Switching Capacity 5.6 Gbps Packet Forwarding Rate 4.17 Mpps MAC Address Table 8,000 entries (8 K) Internal Cache/Buffer 4 Mbits Housing Metal, fan-free design Surge Protection (PoE ports) 6 kV Power Supply 54 V DC, 1.2 A Max Power Consumption 86 W (idle 5 W) Operating Temperature 0°C – 40 °C Storage Temperature –40 °C – 85 °C Humidity (Operating / Storage) 5% – 95% (non-condensing) Mounting Options Desk-mounted or Wall-mounted Net Weight 0.555 kg Dimensions (W × H × D) 217.60 mm × 27.60 mm × 108.50 mm KSh 7,350.00KSh 9,000.00Hikvision DS-3E0310P-E/M(B) 8-Port PoE Fast-Ethernet + 2-Port Gigabit Unmanaged Switch
KSh 7,350.00KSh 9,000.00 -
Hikvision DS-3E0505-O 5-Port Gigabit Desktop Ethernet Switch
Hikvision DS-3E0505-O 5-Port Gigabit Desktop Ethernet Switch
The Hikvision DS-3E0505-O is a compact, fan-free 5-port Gigabit RJ45 switch with 10 Gbps switching capacity, metal housing, wire-speed forwarding, and 6 kV surge protection—ideal for small offices, home networks, or IP camera systems needing reliable wired connectivity.
Specification Detail Model DS-3E0505-O Ports 5 × Gigabit RJ45 Switching Capacity 10 Gbps Packet Forwarding Rate 7.44 Mpps MAC Address Table 2,000 entries Internal Cache 3 Mbits Housing Metal, fan-free Installation Mode Desk-Mounted / Wall-Mounted Power Supply 5 V DC, 0.6 A Max Power Consumption 3 W (idle ~0.25 W) Surge Protection 6 kV Operating Temp. 0°C – 40 °C Storage Temp. –40 °C – 85 °C Operating Humidity 5% – 95% (non-condensing) Dimensions (W × H × D) 105.00 mm × 27.60 mm × 83.10 mm Net Weight 0.17 kg KSh 1,800.00KSh 2,200.00Hikvision DS-3E0505-O 5-Port Gigabit Desktop Ethernet Switch
KSh 1,800.00KSh 2,200.00 -
Hikvision DS-3E0505P-E/M 4-Port Gigabit PoE Unmanaged Switch
Hikvision DS-3E0505P-E/M 4-Port Gigabit PoE Unmanaged Switch
The Hikvision DS-3E0505P-E/M is a 4-port Gigabit PoE unmanaged switch (plus one uplink port), supporting IEEE 802.3af/at with 30 W per port and a ~35–60 W total budget, delivering 10 Gbps switching capacity, wire-speed forwarding, metal fan-free housing, and 6 kV surge protection—ideal for powering IP cameras, access points, or VoIP devices in small to medium-sized networks.
Specification Detail Model DS-3E0505P-E/M Ports 4 × Gigabit PoE RJ45, 1 × Gigabit RJ45 uplink PoE Standard IEEE 802.3af, IEEE 802.3at Max PoE Power per Port 30 W Total PoE Power Budget 35–60 W (depending on variant/source) Switching Capacity 10 Gbps Packet Forwarding Rate 7.44 Mpps MAC Address Table 2,000 entries Internal Cache 1 Mbit Housing Metal, fan-free design Surge Protection (PoE ports) 6 kV Power Supply 48 VDC, 0.8–1.35 A (depending on region) Max Power Consumption ~65 W (with PoE), ~38–65 W (typical) Dimensions (W × H × D) 105.0 mm × 27.6 mm × 83.1 mm Net Weight ≈ 0.26 kg Operating Temperature 0°C – 40 °C Storage Temperature –40 °C – 85 °C Operating Humidity 5% – 95% (non-condensing) Installation Mode Desk-Mounted or Wall-Mounted KSh 4,800.00KSh 7,000.00Hikvision DS-3E0505P-E/M 4-Port Gigabit PoE Unmanaged Switch
KSh 4,800.00KSh 7,000.00 -
Hikvision DS-3E0508-O 8-Port Gigabit Desktop Ethernet Switch
Hikvision DS-3E0508-O 8-Port Gigabit Desktop Ethernet Switch
The Hikvision DS-3E0508-O is an 8-port Gigabit RJ45 switch with 16 Gbps switching capacity, wire-speed forwarding, metal fan-free housing, 6 kV surge protection, and plug-and-play setup—ideal for home networks, small offices, or IP-camera systems needing stable 1000 Mbps wired connections.
Specification Detail Model DS-3E0508-O Ports 8 × Gigabit RJ45 (10/100/1000 Mbps) Switching Capacity 16 Gbps Packet Forwarding Rate 11.90 Mpps MAC Address Table 8,000 entries (8 K) Internal Cache 4 Mbits Shell/Housing Metal, fan-free design Installation Mode Desk-Mounted or Wall-Mounted Net Weight 0.24 kg Dimensions (W × H × D) 145.00 × 25.60 × 68.45 mm Power Supply 5 V DC, 0.6 A Max Power Consumption 3 W Idle Power Consumption ≈ 1.61 W Surge Protection 6 kV Operating Temperature 0°C – 40 °C Storage Temperature –40 °C – 85 °C Operating Humidity 5% – 95% (non-condensing) KSh 2,650.00KSh 3,000.00Hikvision DS-3E0508-O 8-Port Gigabit Desktop Ethernet Switch
KSh 2,650.00KSh 3,000.00 -
Hikvision DS-3E0510P-E/M 8-Port Gigabit PoE + SFP Unmanaged Switch
Hikvision DS-3E0510P-E/M 8-Port Gigabit PoE + SFP Unmanaged Switch
The Hikvision DS-3E0510P-E/M is an 8-port Gigabit PoE unmanaged switch with 1 Gigabit RJ45 uplink port and 1 Gigabit SFP port, offering up to 58 W total PoE budget, 20 Gbps switching capacity, and 14.88 Mpps forwarding—ideal for powering IP cameras, access points, and small-office networks with plug-and-play simplicity.
Specification Detail Model DS-3E0510P-E/M Ports 8 × Gigabit PoE RJ45, 1 × Gigabit RJ45 uplink, 1 × Gigabit SFP fiber port PoE Standard IEEE 802.3af, IEEE 802.3at Max PoE Power per Port 30 W Total PoE Power Budget 58 W MAC Address Table 4,000 entries Switching Capacity 20 Gbps Packet Forwarding Rate 14.88 Mbps Internal Cache/Buffer 1.5 Mbits Housing Metal, fan-free design Surge Protection (PoE ports) 6 kV Power Supply 48 V DC, 1.35 A Max Power Consumption 65 W Power Consumption (Idle) 7 W Dimensions (W × H × D) 217.6 mm × 27.8 mm × 108.55 mm Net Weight ≈ 0.635 kg Operating Temperature 0°C – 40 °C Storage Temperature –40 °C – 85 °C Operating Humidity 5% – 95% (non-condensing) Installation Mode: Desk-Mounted or Wall-Mounted KSh 6,800.00KSh 9,000.00Hikvision DS-3E0510P-E/M 8-Port Gigabit PoE + SFP Unmanaged Switch
KSh 6,800.00KSh 9,000.00 -
Hikvision DS-3E0516R-O 16-Port Gigabit Desktop / Rack-Mount Ethernet Switch
Hikvision DS-3E0516R-O 16-Port Gigabit Desktop/Rack-Mount Ethernet Switch
The Hikvision DS-3E0516R-O is a 16-port 10/100/1000 Mbps Gigabit Ethernet switch with 32 Gbps switching capacity, an 8 K MAC-address table, 6 kV surge protection, metal fan-free housing, and a rack-mountable design—ideal for small offices, CCTV networks, or home labs that need stable wired connectivity.
Specification Detail Model DS-3E0516R-O Ports 16 × 10/100/1000 Mbps RJ45 Switching Capacity 32 Gbps Packet Forwarding Rate 23.81 Mbps MAC Address Table 8,000 entries (8 K) Internal Buffer/Cache 4.1 Mbits Physical & Power Housing Metal, fan-free design Installation Mode Rack-mount (mounting ears included) or desktop Dimensions (W × H × D) 327.0 × 44.0 × 118.0 mm Net Weight 0.9 kg Power Supply 100-240 VAC, 50/60 Hz Max Power Consumption 12 W Idle Power Consumption 2.8 W Surge Protection 6 kV Environmental Operating Temperature 0°C – 40 °C Storage Temperature –40 °C – 85 °C Operating Humidity 5% – 95% (non-condensing) KSh 8,400.00KSh 9,500.00Hikvision DS-3E0516R-O 16-Port Gigabit Desktop / Rack-Mount Ethernet Switch
KSh 8,400.00KSh 9,500.00 -
Hikvision DS-3E0518P-E(B) 16-Port Gigabit PoE Unmanaged Switch (with 1× Gigabit Uplink + 1× SFP)
Hikvision DS-3E0518P-E(B) 16-Port Gigabit PoE Unmanaged Switch (with 1× Gigabit Uplink + 1× SFP)
The Hikvision DS-3E0518P-E(B) is a 16-port Gigabit unmanaged PoE switch with IEEE 802.3af/at support, a 230 W total PoE budget, 36 Gbps switching capacity, metal rack-mount housing, and surge protection—ideal for powering IP cameras, access points, and network devices in offices or CCTV systems.
Specification Detail Model DS-3E0518P-E(B) Ports 16 × 10/100/1000 Mbps RJ45 PoE ports, 1 × Gigabit RJ45 uplink, 1 × Gigabit SFP uplink PoE Standard IEEE 802.3af / IEEE 802.3at Max PoE Power per Port 30 W Total PoE Power Budget 230 W MAC Address Table 8,000 entries (8 K) Switching Capacity 36 Gbps Packet Forwarding Rate 26.78 Mbps Internal Buffer/Cache 4.1 Mbits Power Supply 100–240 VAC, 50/60 Hz Max Power Consumption 250 W Housing Metal, rack-mountable (with mounting ears) Surge Protection 6 kV (PoE ports) Dimensions (W × H × D) 440.0 mm × 44.0 mm × 220.8 mm Net Weight ≈ 2.67 kg Operating Temperature 0°C – 45 °C Storage Temperature –40 °C – 85 °C Operating Humidity 5% – 95% (non-condensing) Installation Mode Desk-mounted or rack-mounted (mounting ears included) KSh 23,750.00KSh 34,000.00Hikvision DS-3E0518P-E(B) 16-Port Gigabit PoE Unmanaged Switch (with 1× Gigabit Uplink + 1× SFP)
KSh 23,750.00KSh 34,000.00 -
Hikvision DS-3E0524R-O 24-Port Gigabit Rack-Mount Ethernet Switch
Hikvision DS-3E0524R-O 24-Port Gigabit Rack-Mount Ethernet Switch
The Hikvision DS-3E0524R-O is a 24-port 10/100/1000 Mbps unmanaged Gigabit switch with fan-free metal housing, 48 Gbps switching capacity, 6 kV surge protection, rack-mountable design, and plug-and-play setup—ideal for offices, CCTV systems, and network-dense environments.
Specification Detail Model DS-3E0524R-O Ports 24 × 10/100/1000 Mbps RJ45 Switching Capacity 48 Gbps Packet Forwarding Rate 35.71 Mbps MAC Address Table 8,000 entries (8 K) Internal Cache 4.1 Mbits Housing Metal, fan-free Installation Mode Rack-mount (mounting ears included) Net Weight 0.9 kg Dimensions (W × H × D) 327.00 mm × 44.00 mm × 118.00 mm Power Input 100-240 VAC, 50/60 Hz Max Power Consumption 18 W Idle Power Consumption 3.8 W Surge Protection 6 kV Operating Temperature 0°C – 40 °C Storage Temperature –40 °C – 85 °C Operating Humidity 5% – 95% (non-condensing) KSh 9,800.00KSh 11,000.00Hikvision DS-3E0524R-O 24-Port Gigabit Rack-Mount Ethernet Switch
KSh 9,800.00KSh 11,000.00
