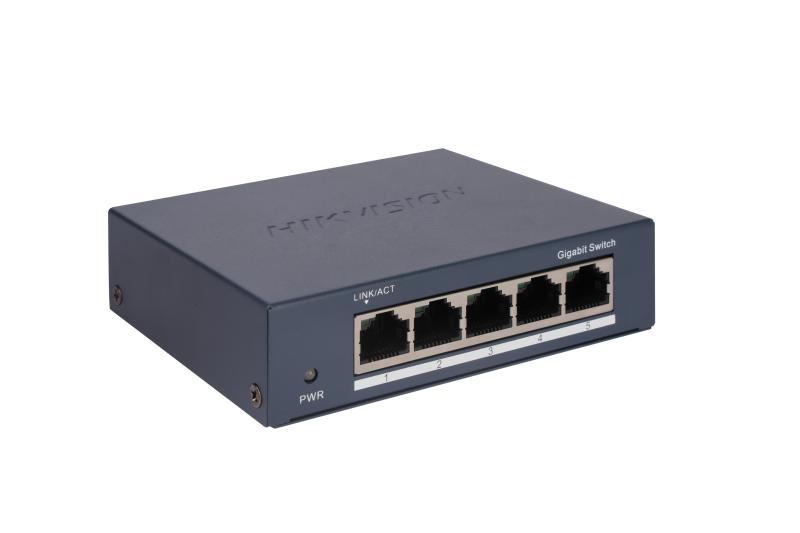

Hikvision DS-3E0505-O 5-Port Gigabit Desktop Ethernet Switch

Hikvision DS-3E0505-O 5-Port Gigabit Desktop Ethernet Switch

The Hikvision DS-3E0505-O is a plug-and-play unmanaged 5-port Gigabit Ethernet switch designed to expand wired network connectivity for homes, small offices, or security camera setups. It delivers five Gigabit RJ45 ports with wire-speed forwarding and a non-blocking design, ensuring data flows smoothly even under load.

Built with a solid metal shell and fan-free architecture, the DS-3E0505-O is both durable and silent—suited for noise-sensitive environments or continuous operation. It also includes 6 kV surge protection, offering superior resilience against power surges and transient voltage—a useful feature in areas with unstable electricity.

Additional advantages: low power consumption (max 3 W, idle ~0.25 W) and flexible mounting—can be placed on a desk or wall-mounted depending on your setup.

Key Features:

• 5 × Gigabit RJ45 ports for high-speed wired connectivity.

• 10 Gbps switching capacity; 7.44 Mpps packet forwarding rate; internal 3 Mbit cache.

• Metal housing, fan-free design—reliable and silent

• Plug-and-play: no configuration required; auto MDI/MDIX support

• 6 kV surge protection for enhanced safety.

• Low power consumption (≤ 3 W), power supply 5V DC, 0.6A.

• Compact size—easy to install on desk or wall (105 × 27.6 × 83.1 mm)
