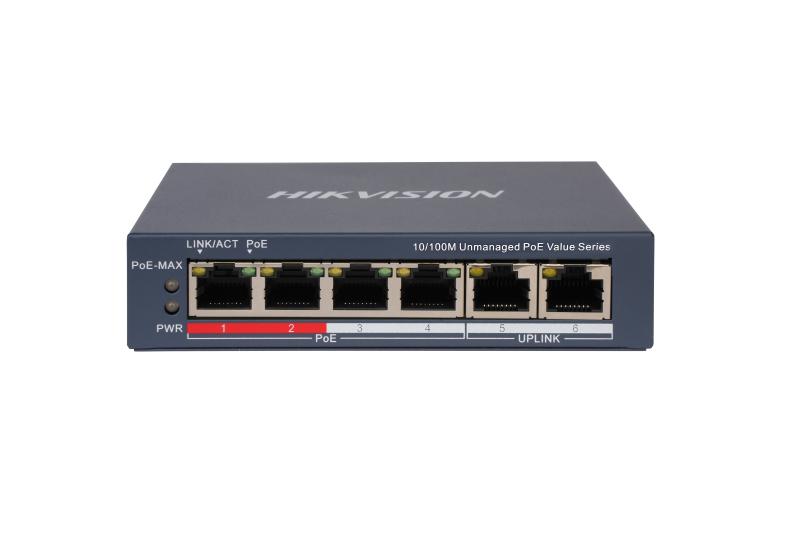

Hikvision DS-3E0106P-E/M(B) 6-Port 10/100 Mbps Unmanaged PoE + Uplink Switch

Hikvision DS-3E0106P-E/M(B) 6-Port 10/100 Mbps Unmanaged PoE + Uplink Switch

The Hikvision DS-3E0106P-E/M(B) is an unmanaged Fast Ethernet switch combining data connectivity and PoE power delivery—ideal for powering IP cameras, access points, or other PoE devices while managing network traffic reliably.

It features 4 × 10/100 Mbps PoE ports and 2 × 10/100 Mbps standard RJ45 uplink ports, giving you flexible connectivity for both powered devices and uplink to a router or NVR. The switch supports IEEE 802.3af/at standards, with a PoE power budget of up to 35 W and up to 30 W per port—enough for typical IP cameras with PoE.

Thanks to a metal, fan-free housing, the DS-3E0106P-E/M(B) is robust, durable, and quiet—suitable for indoor installations and always-on environments. It also includes 6 kV surge protection on PoE ports, which improves reliability and protects connected devices in regions with unstable power supplies.

For convenience, the switch offers plug-and-play installation with auto MDI/MDIX on ports—no configuration required. It also supports a long-range transmission mode on PoE ports (up to 300 m), which can be useful when running cable over longer distances to cameras or access points.

Key Features:

• 4 × 10/100 Mbps PoE ports + 2 × 10/100 Mbps uplink ports.

• IEEE 802.3af / IEEE 802.3at PoE standard, up to 30 W per port / 35 W total PoE budget.

• Support for long-range PoE transmission up to ~300 m on PoE ports.

• Unmanaged, plug-and-play operation with auto-MDI/MDIX—easy to deploy.

• Wire-speed store-and-forward switching, switching capacity ≈ 1.2 Gbps, packet forwarding ~0.89 Mpps.

• Robust metal, fan-free housing—silent and durable.

• 6 kV surge protection for enhanced stability and device protection.
