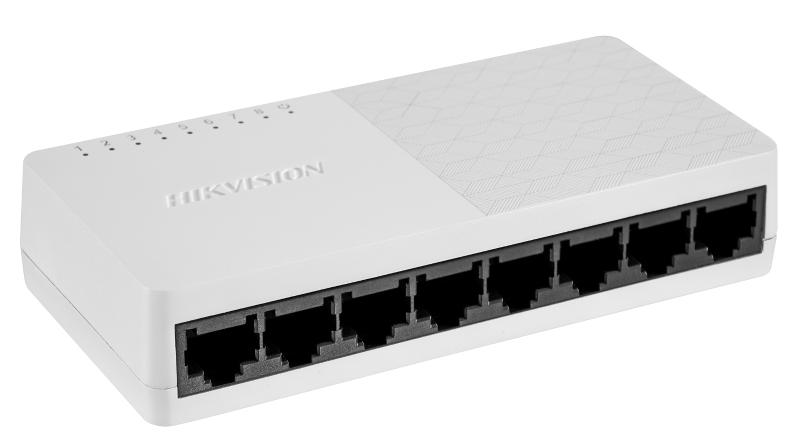

Hikvision DS-3E0108D-O 8-Port 10/100 Mbps Desktop Ethernet Switch

Hikvision DS-3E0108D-O 8-Port 10/100 Mbps Desktop Ethernet Switch

The Hikvision DS-3E0108D-O is an unmanaged, no-configuration-needed Ethernet switch designed to expand the number of wired connections in home networks, small offices, or CCTV/NVR setups. It features 8 × 10/100 Mbps RJ45 ports with auto-MDI/MDIX, so you can connect devices or uplink directly without worrying about cable type.

It uses store-and-forward switching, which inspects incoming packets for errors before forwarding—helping ensure stable and reliable data transmission. The switch supports MAC-address auto-learning and aging, which helps efficiently manage network traffic without manual configuration.

Compact and lightweight, the DS-3E0108D-O comes in an ABS plastic shell and supports both desktop and wall-mount installation—giving flexibility depending on your setup. With plug-and-play simplicity, it’s ideal for users who need a quick network expansion without complicated setup.

Despite its small size, it offers a switching capacity of 1.6 Gbps and a packet forwarding rate of 1.19 Mpps, sufficient for typical data transfer, IP cameras, and general network traffic in small environments. Power requirements are minimal—it runs on 5 V DC (0.6 A) with a typical power consumption of 3 W and includes 2 kV surge protection for safer operation in areas with unstable power.

Key Features:

• 8 × 10/100 Mbps RJ45 ports (auto-MDI/MDIX)

• Store-and-forward switching with error checking

• MAC-address auto-learning and aging

• 1.6 Gbps switching capacity, 1.19 Mpps forwarding rate

• Compact, lightweight ABS housing—desktop or wall-mountable

• Plug-and-play, no configuration needed

• 2 kV surge protection for added stability

• Low power consumption (≤ 3 W), 5 V DC power supply
