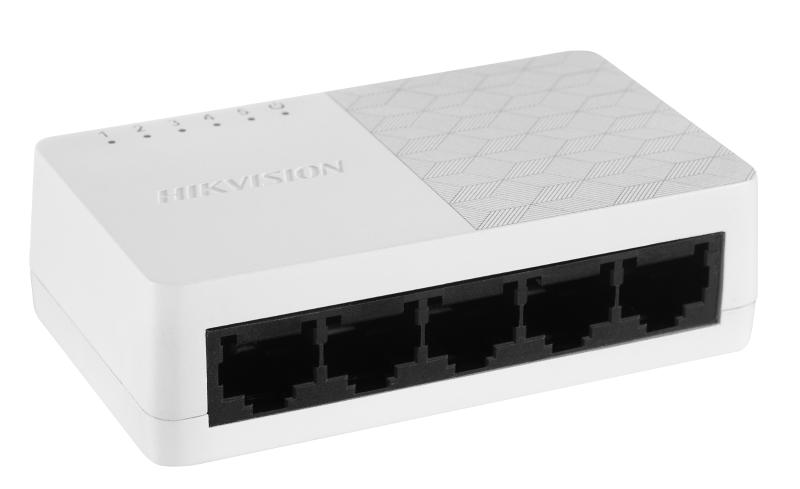

Hikvision DS-3E0105D-O 5-Port 10/100 Mbps Desktop Ethernet Switch

Hikvision DS-3E0105D-O 5-Port 10/100 Mbps Desktop Ethernet Switch

The Hikvision DS-3E0105D-O is a simple yet reliable 5-port Fast Ethernet switch designed to expand wired connectivity for small offices, homes, or camera networks.

It offers 5 × 10/100 Mbps RJ45 Ethernet ports with auto-MDI/MDIX, so you don’t need crossover cables—just plug in your devices and it works. The switch uses store-and-forward switching, with MAC address auto-learning and aging, helping ensure stable packet forwarding and efficient network traffic handling.

With a compact ABS housing and lightweight build (≈ 0.093 kg), it’s ideal for desktop placement or wall mounting—useful when desk space is limited or you want a clean, fixed installation. It’s a plug-and-play device, requiring no configuration, making it perfect for non-technical users or quick network expansion projects.

The switch supports up to 1 Gbps switching capacity and a 0.74 Mpps packet forwarding rate, suitable for general data and IP camera traffic in small networks. It draws minimal power (max 3 W), runs on 5 V DC (0.6 A), and even includes 2 kV surge protection, giving added resilience in environments with unstable power.

Key Features:

• 5 × 10/100 Mbps RJ45 Ethernet ports (auto MDI/MDIX).

• Store-and-forward switching with MAC auto-learning & aging.

• 1 Gbps switching capacity, 0.74 Mpps packet forwarding rate.

• Plug-and-play—no configuration needed.

• Compact, lightweight design (≈ 83 × 22 × 52 mm, 0.093 kg).

• Desktop or wall-mount installation options.

• Low power consumption (≤ 3 W), 5 V DC / 0.6 A supply.

• Built-in 2 kV surge protection for safer connectivity.
