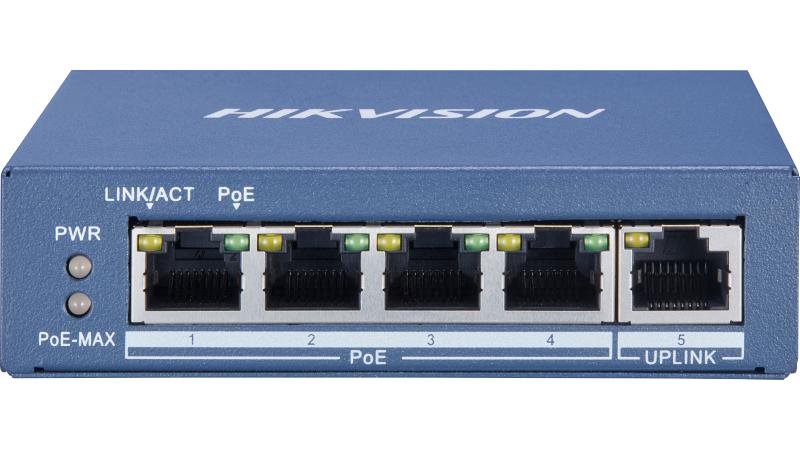

Hikvision DS-3E0505P-E/M 4-Port Gigabit PoE Unmanaged Switch
KSh 4,800.00KSh 7,000.00 (-31%)
Hikvision DS-3E0505P-E/M 4-Port Gigabit PoE Unmanaged Switch
The Hikvision DS-3E0505P-E/M is a 4-port Gigabit PoE unmanaged switch (plus one uplink port), supporting IEEE 802.3af/at with 30 W per port and a ~35–60 W total budget, delivering 10 Gbps switching capacity, wire-speed forwarding, metal fan-free housing, and 6 kV surge protection—ideal for powering IP cameras, access points, or VoIP devices in small to medium-sized networks.
| Specification | Detail |
|---|---|
| Model | DS-3E0505P-E/M |
| Ports | 4 × Gigabit PoE RJ45, 1 × Gigabit RJ45 uplink |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| Max PoE Power per Port | 30 W |
| Total PoE Power Budget | 35–60 W (depending on variant/source) |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2,000 entries |
| Internal Cache | 1 Mbit |
| Housing | Metal, fan-free design |
| Surge Protection (PoE ports) | 6 kV |
| Power Supply | 48 VDC, 0.8–1.35 A (depending on region) |
| Max Power Consumption | ~65 W (with PoE), ~38–65 W (typical) |
| Dimensions (W × H × D) | 105.0 mm × 27.6 mm × 83.1 mm |
| Net Weight | ≈ 0.26 kg |
| Operating Temperature | 0°C – 40 °C |
| Storage Temperature | –40 °C – 85 °C |
| Operating Humidity | 5% – 95% (non-condensing) |
| Installation Mode | Desk-Mounted or Wall-Mounted |
Hikvision DS-3E0505P-E/M 4-Port Gigabit PoE Unmanaged Switch
The Hikvision DS-3E0505P-E/M is a compact, unmanaged PoE Gigabit Ethernet switch that combines high-speed data connectivity and power delivery—perfect for powering and connecting devices like IP cameras, wireless access points, or VoIP phones with a single cable.
It includes 4 × Gigabit RJ45 ports with PoE and 1 × Gigabit uplink port, giving you full gigabit network speeds while simultaneously supplying power to devices. The switch conforms to IEEE 802.3af and 802.3at PoE standards—delivering up to 30 W per port, making it suitable even for power-hungry devices like PTZ cameras or powerful wireless access points.
Under the hood, DS-3E0505P-E/M offers 10 Gbps switching capacity and 7.44 Mpps forwarding rate, with a MAC address table for 2,000 entries and a 1-Mbit internal cache—enough to handle multiple devices without clogging bandwidth. Its metal, fan-free housing ensures durability and silent operation, ideal for indoor or surveillance-room installations.
For safety and reliability, the switch includes 6 kV surge protection on PoE ports—a useful feature if your power supply is unstable. Installation is straightforward thanks to its plug-and-play, unmanaged nature, and auto-MDI/MDIX support—just connect cables, and devices receive network and power.
Key Features:
-
4 × Gigabit PoE RJ45 ports + 1 × Gigabit uplink port.
-
PoE standard: IEEE 802.3af / IEEE 802.3at—up to 30 W per port.
-
10 Gbps switching capacity, 7.44 Mpps forwarding rate—stable, high-speed data throughput.
-
2,000-entry MAC address table; 1-Mbit internal cache.
-
Metal, fan-free housing—durable and silent.
-
6 kV surge protection on PoE ports—enhanced safety for connected devices.
-
Unmanaged plug-and-play design with auto-MDI/MDIX—quick and easy deployment.
