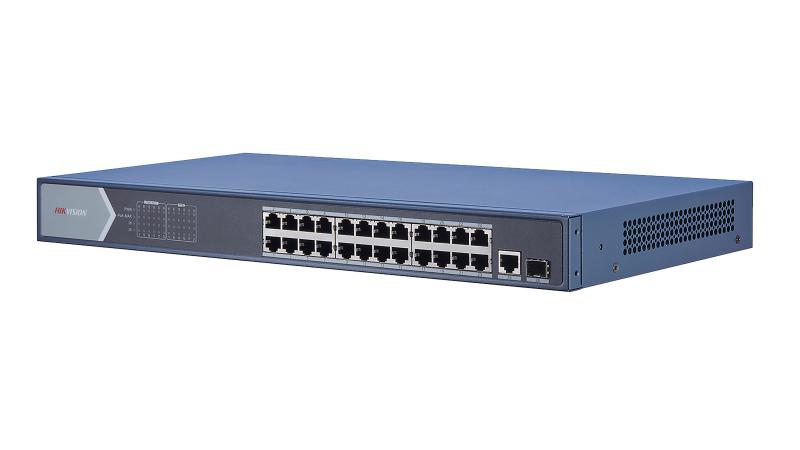

Hikvision DS-3E0526P-E 24-Port Gigabit PoE Unmanaged Switch

Hikvision DS-3E0526P-E 24-Port Gigabit PoE Unmanaged Switch

The Hikvision DS-3E0526P-E is a high-capacity unmanaged Gigabit Ethernet switch designed to power and connect multiple devices such as IP cameras, wireless access points, or other PoE-enabled equipment—all via the same cable.

It includes 24 × Gigabit RJ45 PoE ports, plus 1 × Gigabit RJ45 uplink port and 1 × Gigabit SFP fiber uplink port, offering flexible connectivity for core networking, NVR backbones, or fiber-linked segments.

The DS-3E0526P-E supports IEEE 802.3af and IEEE 802.3at (PoE/PoE+), delivering up to 30 W per port and a generous total PoE budget of up to 370 W, making it suitable for powering many high-consumption devices simultaneously.

In terms of throughput, it delivers a switching capacity of 52 Gbps, a packet forwarding rate of 38.69 Mpps, an 8 K MAC address table, and a 4.1 Mbit internal cache—more than enough to handle heavy network and video traffic loads like multi-camera surveillance systems.

Built with a metal chassis, the switch supports rack-mount installation (mounting ears included) or desk mounting—suitable for server racks or structured wiring closets.

To improve reliability—especially in regions with unstable power—the DS-3E0526P-E provides 6 kV surge protection on PoE ports, helping safeguard connected devices from voltage spikes.

Key Features:

• 24 × Gigabit RJ45 PoE ports + 1 × Gigabit RJ45 uplink + 1 × Gigabit SFP fiber uplink.

• Supports IEEE 802.3af / 802.3at—up to 30 W per port; 370 W total PoE budget.

• 52 Gbps switching capacity; 38.69 Mpps forwarding rate; 8 K MAC table; 4.1 Mbit internal cache.

• Store-and-forward, wire-speed, non-blocking switching—stable performance under heavy load.

• Metal chassis with rack-mount support; suitable for 19″ rack installation or desktop use.

• 6 kV surge protection on PoE ports—improved safety for connected devices.

• Plug-and-play unmanaged design—no configuration required.
