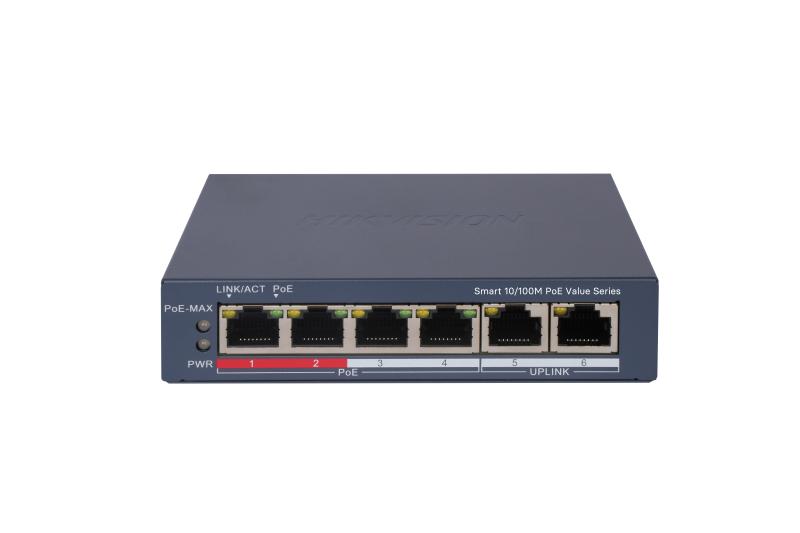

Hikvision DS‑3E1106P‑EI/M 4‑Port 10/100 Mbps Smart PoE Switch with 2‑Port Uplink

Hikvision DS‑3E1106P‑EI/M 4‑Port 10/100 Mbps Smart PoE Switch with 2‑Port Uplink

The Hikvision DS‑3E1106P‑EI/M is a compact smart‑managed PoE switch designed for small to medium surveillance and network installations. It offers 4 × 10/100 Mbps PoE RJ45 ports for powering devices like IP cameras, access points, or VoIP phones—and 2 × 10/100 Mbps uplink ports for connecting to your main network backbone.

Supporting IEEE 802.3af/at, the switch can deliver up to 30 W per PoE port, with a total PoE power budget of 45 W—providing enough power for several mid‑range cameras or devices.

On the networking side, DS‑3E1106P‑EI/M features a switching capacity of 14 Gbps and a packet forwarding rate of 10.42 Mpps, with an internal cache of 1 Mbit and a MAC address table for 2,000 entries—enough to handle typical surveillance or small‑office traffic reliably.

As a “smart-managed” switch, it supports advanced network features such as 802.1Q VLAN, link aggregation, STP/RSTP loop prevention, port isolation, PoE watchdog (to auto‑restart unresponsive cameras), and cable diagnostics/detection—making it more resilient and easier to maintain than a basic unmanaged switch.

Physically, it’s housed in a metal chassis, comes with 6 kV surge protection on PoE ports, supports desk‑mount or wall‑mount installation, and operates between 0°C and 40°C—suitable for typical indoor CCTV or network closets.

Key Features:

• 4 × 10/100 Mbps PoE RJ45 ports + 2 × 10/100 Mbps uplink ports.

• IEEE 802.3af / 802. 3at PoE, up to 30 W per port, 45 W total PoE budget.

• Switching capacity 14 Gbps, packet forwarding rate 10.42 Mpps.

• Smart‑managed features: VLAN (802.1Q), link aggregation, STP/RSTP, port isolation, PoE watchdog, cable fault detection, and long‑range PoE (up to 300 m).

• 6 kV surge protection on PoE ports—safer in areas with unstable power.

• Compact metal housing; supports desk‑ or wall‑mount installation.
