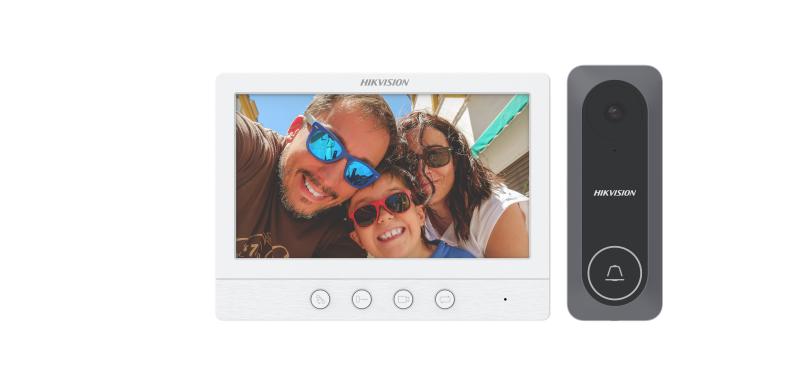

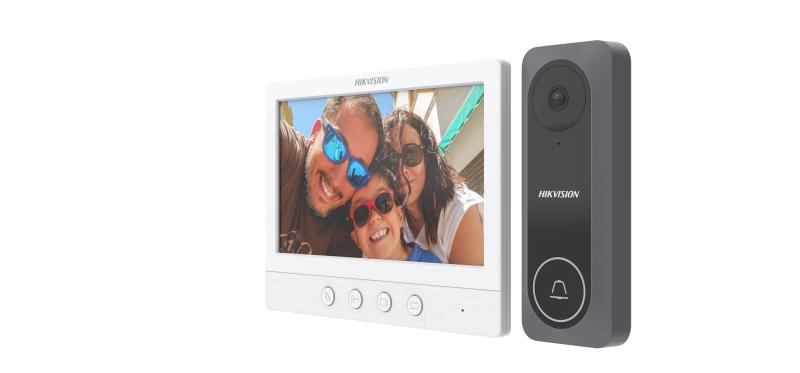

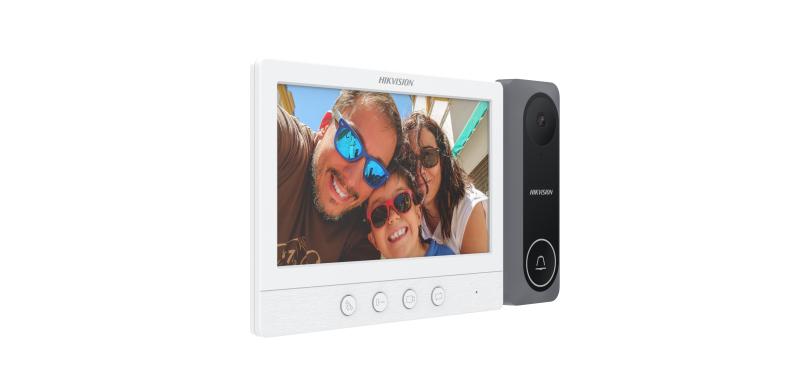

Hikvision DS-KIS212 4-Wire HD Video Intercom Kit (7″ Indoor Monitor + 720p Door Station)

Hikvision DS-KIS212 4-Wire HD Video Intercom Kit (7″ Indoor Monitor + 720p Door Station)

The Hikvision DS-KIS212 is a plug-and-play, 4-wire analog HD video intercom system designed for secure and efficient communication between a door station and indoor monitors. It features a 7-inch color TFT indoor monitor for clear video and a 720p HD door station with IR illumination up to 3 meters for reliable nighttime visibility.

Its video door station has a 130° horizontal / 70° vertical field of view, giving a wide angle to capture visitors. The door station supports one relay (lock control) rated at up to 30 V / 1 A, enabling control of an electric lock directly.

Both the door and indoor units run on 12 V DC. The door station draws up to 4 W, while the indoor monitor draws ≤ 5 W, keeping power requirements modest. Operating conditions are wide: the door station works between –30°C and +60°C, and the monitor between –10°C and +55°C, making the kit suitable for various environments.

The system supports up to 2 door stations and 3 indoor monitors, allowing flexible expansion in multi-entry setups. Installation uses a 4-wire interface (2 for indoor extensions, 2 for doorphones), which simplifies cabling.

Key Features:

• 7″ color TFT indoor monitor for clear video and audio

• 720p HD TVI door station with IR light up to 3 m

• Wide 130° × 70° field-of-view

• One-press call and door unlock

• Supports up to 2 door stations / 3 indoor stations

• 4-wire plug-and-play wiring (2 inner, 2 outer)

• Lock control: 1 relay, up to 30 V / 1 A

• Power: 12 V DC; low power consumption

• Wide operating temperature & humidity range

• Surface-mount installation
