Hikvision DS-1LN6UZC0 305 m Cat-6 U/UTP Solid Copper Network Cable
Hikvision DS-1LN6UZC0 305 m Cat-6 U/UTP Solid Copper Network Cable
The Hikvision DS-1LN6UZC0 is a 305 m Cat-6 unshielded twisted-pair cable with 24 AWG solid copper, HDPE insulation, a grey/orange PVC jacket, Fluke-tested for high-temp and 57 V PoE loads, and fully compliant with ANSI/TIA-568.2-D and ISO/IEC-11801.
Specification Detail Model DS-1LN6UZC0 Category Cat 6 Structure U/UTP (Unshielded Twisted Pair) Length 305 ± 1.5 m Conductor Material Solid Bare Copper (99.95%) Conductor Diameter 0.50 ± 0.01 mm (24 AWG) Insulation Material HDPE Insulation Diameter 0.88 ± 0.05 mm Sheath Material PVC Sheath Color Grey or Orange Rip Cord Yes Separator Yes Impedance 100 Ω ± 15 @ 1-250 MHz Delay Skew ≤ 45 ns / 100 m DC Resistance ≤ 9.38 Ω / 100 m Resistance Unbalance ≤ 4.0% Aging (100 °C × 24h × 10d) Tensile ≥ 12.5 MPa, Elongation ≥ 125% Cold Bend Test –20 °C × 4 h, 8 × O.D, no cracks Operating Voltage 57 V Operating Temp. –20°C to +70°C Package Dimensions 390 × 390 × 210 mm Weight 9.9 ± 0.5 kg KSh 14,750.00KSh 17,000.00Hikvision DS-1LN6UZC0 305 m Cat-6 U/UTP Solid Copper Network Cable
KSh 14,750.00KSh 17,000.00 -
Hikvision DS-KH6320-WTE1 7″ Touch IP Indoor Station with PoE & Wi-Fi
Hikvision DS-KH6320-WTE1 7″ Touch IP Indoor Station with PoE & Wi-Fi
The Hikvision DS-KH6320-WTE1 is a 7″ capacitive-touch intercom station for IP video intercom systems. It supports PoE or 12 V DC power, Wi-Fi, stores messages and snapshots on a TF card, and links with up to 16 door stations and 16 cameras.
Specification Detail Model DS-KH6320-WTE1 Operating System Embedded Linux Memory 128 MB RAM / 32 MB Flash Display 7″ TFT capacitive touch, 1024 × 600 Audio Input Omnidirectional mic Audio Output Built-in speaker Audio Codec G.711 U/A, G.722.1 Network 10/100 Mbps RJ-45, Wi-Fi 802.11 b/g/n Supported Protocols TCP/IP, SIP, RTSP Alarm Inputs 8 Relay Outputs 2 (Lock Control, Max. 30 VDC, 0.3 A) RS-485 1 (Half-duplex) Storage TF card (microSD), up to 128 GB Indoor Extensions Supported 16 Door Stations Supported 17 Network Cameras Supported 16 Power Supply PoE (802.3af) or 12 V DC Power Consumption ≤ 5 W Operating Temp. –10 °C to +55 °C Humidity 10% – 90% (non-condensing) Dimensions 200 mm × 140 mm × 15.1 mm Weight 355 g KSh 13,200.00KSh 18,000.00Hikvision DS-KH6320-WTE1 7″ Touch IP Indoor Station with PoE & Wi-Fi
KSh 13,200.00KSh 18,000.00 -

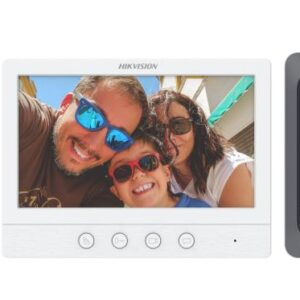

Hikvision DS-KIS212 4-Wire HD Video Intercom Kit (7″ Indoor Monitor + 720p Door Station)
Hikvision DS-KIS212 4-Wire HD Video Intercom Kit (7″ Indoor Monitor + 720p Door Station)
The Hikvision DS-KIS212 is a 4-wire HD video intercom kit featuring a 7″ TFT monitor, a 720p door camera, one-press call, one-press door unlock, plug-and-play installation, and support for up to 2 door stations and 3 indoor stations—ideal for residential security.
Specification Detail Model DS-KIS212 Indoor Monitor 7″ Colorful TFT, 1024 × 600 Door Station Video 1280 × 720 @ 60 fps IR Light Range Up to 3 m Field of View (FOV) Horizontal 130°, Vertical 70° Lock Control 1 relay, max 30 V / 1 A Wiring 4-wire interface Power Supply 12 V DC Power Consumption Door ≤ 4 W / Indoor ≤ 5 W Operating Temperature Door: –30 °C to +60 °C
Indoor: –10 °C to +55 °CHumidity 10%–90% System Capacity Up to 2 door stations, 3 indoor monitors Installation Surface mount KSh 11,150.00KSh 15,000.00Hikvision DS-KIS212 4-Wire HD Video Intercom Kit (7″ Indoor Monitor + 720p Door Station)
KSh 11,150.00KSh 15,000.00 -
Hikvision DS-KIS213 4-Wire HD Video Intercom Kit – 7″ Monitor + 720p Door Station
Hikvision DS-KIS213 4-Wire HD Video Intercom Kit – 7″ Monitor + 720p Door Station
The Hikvision DS-KIS213 is a 4-wire HD intercom kit with a 7″ TFT monitor and 1280×720 door station, IR illumination up to 3 m, an IP65/IK08-rated outdoor unit, one-press call and door unlock, and support for up to 2 door stations and 3 indoor stations.
Specification Detail Model DS-KIS213 Video Resolution 1280 × 720 @ 60 fps IR Light Range Up to 3 m Field of View (FOV) 117° H / 70° V / 141° D Audio Input (Door) Omnidirectional microphone Audio Output (Door) Loudspeaker (30 cm/76 dB, 50 cm/72 dB) Lock Control 1 relay, max 30 V / 1 A Wiring 4-wire interface Power Supply 12 V DC Power Consumption Door ≤ 4 W, Monitor ≤ 4 W Operating Temp. Door: –30 °C to +60 °C
Monitor: –10 °C to +55 °CHumidity 10%–90% Outdoor Protection IP65, IK08 Monitor Screen 7″ TFT, 1024 × 600 Capacity Up to 2 door stations, 3 indoor monitors Installation Surface mount KSh 12,250.00KSh 15,000.00Hikvision DS-KIS213 4-Wire HD Video Intercom Kit – 7″ Monitor + 720p Door Station
KSh 12,250.00KSh 15,000.00 -

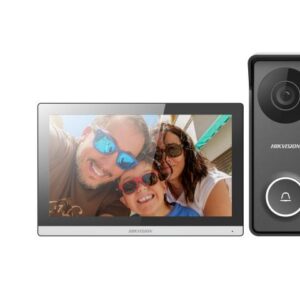

Hikvision DS-KIS313-P 4-Wire Hybrid HD Video Intercom Kit (7″ Touch Monitor + 720p Door Station)
Hikvision DS-KIS313-P 4-Wire Hybrid HD Video Intercom Kit (7″ Touch Monitor + 720p Door Station)
The Hikvision DS-KIS313-P is a 4-wire hybrid HD intercom kit featuring a 7″ capacitive touch monitor, a 1280×720 HD door camera, IR night vision, Wi-Fi indoor connectivity, an IP65 + IK08-rated outdoor unit, a relay for door unlock, and Hik-Connect support.
Specification Detail Model DS-KIS313-P Door Station Video Resolution 1280 × 720 @ 60 fps IR Illumination Up to 3 m Field of View 117° H / 70° V / 141° D Audio Input Built-in omnidirectional mic Audio Output Built-in loudspeaker Linked Indoor Capacity 3 monitors Sub Door Station Capacity 1 Lock Relay 1 × 30 V / 1 A Power Supply 12 V DC Four-Wire Interface Yes Button 1 physical Operating Temp. –30 °C to +60 °C Humidity 10% to 90% (non-condensing) Protection IP65, IK08 Material Aluminum alloy + plastic Dimensions (W × H × D) 55 mm × 145 mm × 24 mm Weight 200 g Indoor Station OS Embedded Linux Memory 128 MB RAM / 32 MB ROM Screen 7″ TFT, 1024 × 600 Viewing Angle 160° H / 130° V Brightness 250 cd/m² (typ) Audio In Built-in mic Audio Out Built-in speaker Audio Codec G.711U / G.711A, 64 kbps, echo cancel + noise suppression Wi-Fi 802.11 b/g/n TF Card Slot Up to 128 GB Power Supply 12 V DC Power Consumption ≤ 5 W Operating Temp. –10 °C to +50 °C Humidity 10% to 90% (non-condensing) Installation Surface mount Weight 260 g (approx.) KSh 18,600.00KSh 20,000.00Hikvision DS-KIS313-P 4-Wire Hybrid HD Video Intercom Kit (7″ Touch Monitor + 720p Door Station)
KSh 18,600.00KSh 20,000.00 -
Hikvision DS-KIS603-P(C) 7″ Touch IP Video Intercom Kit with 2MP Door Station & Wi-Fi
Hikvision DS-KIS603-P(C) 7″ Touch IP Video Intercom Kit with 2MP Door Station & Wi-Fi
The Hikvision DS-KIS603-P(C) is a smart IP intercom kit designed for homes with a 7″ capacitive touchscreen indoor monitor, a 2MP outdoor camera with night IR, PoE/Wi-Fi support, mobile app control (Hik-Connect), and IP65 outdoor protection.
Specification Detail Model DS-KIS603-P(C) Outdoor Station DS-KV6113-WPE1(C) Indoor Station DS-KH6320-WTE1 Camera 2 MP HD (1/3″ CMOS) Night Vision IR up to 3 m FOV 131° horizontal / 78° vertical Video Codec H.264 / H.265 / MJPEG Audio Omnidirectional mic and speaker, echo cancellation Network (Door) 10/100 Mbps Ethernet, Wi-Fi Relay 1 × lock relay (max 30 V / 1 A) Power PoE (802.3af) or 12 V DC Protection IP65 Indoor Display 7″ TFT capacitive, 1024 × 600 Indoor Network Ethernet 10/100 Mbps, Wi-Fi 802.11 b/g/n Memory 128 MB RAM / 32 MB Flash (Indoor); 32 MB Flash / 256 MB RAM (Door) Expansion Up to 16 IP cameras on monitor Storage TF card, up to 32 GB Operating Temp Door: –40 °C to +53 °C; Indoor: –10 °C to +55 °C Installation Surface mount KSh 25,300.00KSh 30,000.00Hikvision DS-KIS603-P(C) 7″ Touch IP Video Intercom Kit with 2MP Door Station & Wi-Fi
KSh 25,300.00KSh 30,000.00 -
Hikvision DS-KIS604-S(C) 7″ Touch IP Video Intercom Kit with 1080p Outdoor Station & PoE/Wi-Fi
Hikvision DS-KIS604-S(C) 7″ Touch IP Video Intercom Kit with 1080p Outdoor Station & PoE/Wi-Fi
The Hikvision DS-KIS604-S(C) is a villa-grade IP intercom kit with a 2 MP door station (1080p, 124° FOV, IR), a 7″ capacitive touch indoor monitor, PoE/Wi-Fi connectivity, TF-card storage, Hik-Connect app integration, and IP65 + IK08 protection for outdoor use.
Specification Detail Model DS-KIS604-S(C) Door Station OS Embedded Linux Memory Flash 32 MB / RAM 256 MB Video Resolution Main: 1920 × 1080p / Sub: 640 × 480 Lens & Field of View 124° H × 75° V IR Night Illumination Yes Video Compression H.264, H.265, MJPEG Audio Mic + Speaker, Noise Suppression, Echo Cancel Audio Codec G.711U, G.711A, G.726, AAC-LC/LD, OPUS, G.722.1 User Capacity 2000 Users Network 10/100 Mbps Ethernet
Wi-Fi 802.11 b/g/nInterfaces RS-485, Alarm In ×4, Lock Relay ×2, Exit Button ×2, Door Contact ×2, Tamper ×1 Power PoE (802.3af) or 12 V DC, < 10 W Operating Temp −40 °C to +53 °C Protection IP65, IK08 Dimensions 174 × 91 × 29 mm Weight 380 g Indoor Station OS / Memory Embedded Linux, 128 MB RAM, 32 MB Flash Display 7″ TFT, 1024 × 600, Capacitive Touch Audio Mic + Speaker, Noise Suppression, Echo Cancel Network Ethernet 10/100 Mbps, Wi-Fi 802.11 b/g/n Protocols TCP/IP, SIP, RTSP Interfaces RS-485, Alarm In ×8, Relay Out ×2, TF-Card Slot (≤ 32 GB) Power PoE (802.3af) or 12 V DC, ≤ 6 W Operating Temp −10 °C to +55 °C Humidity 10%–90% RH Dimensions 200 × 140 × 15.1 mm KSh 33,300.00KSh 36,000.00Hikvision DS-KIS604-S(C) 7″ Touch IP Video Intercom Kit with 1080p Outdoor Station & PoE/Wi-Fi
KSh 33,300.00KSh 36,000.00 -

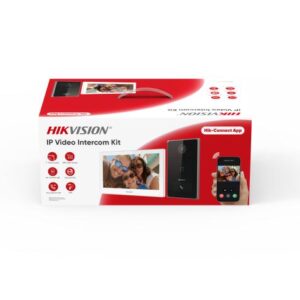

Hikvision DS-KIS608-P 2MP IP Video Intercom Kit with 7″ Touch Monitor & Wi-Fi
Hikvision DS-KIS608-P 2MP IP Video Intercom Kit with 7″ Touch Monitor & Wi-Fi
The Hikvision DS-KIS608-P IP intercom kit features a 2MP outdoor station with IR, wide FOV, PoE or 12 V DC power, a 7″ capacitive touchscreen monitor, Wi-Fi/Ethernet connectivity, Hik-Connect app support, and micro-SD storage—ideal for secure and flexible access control.
Specification Detail Model DS-KIS608-P Door Station OS / Memory Linux, 32 MB Flash / 256 MB RAM Camera 2 MP HD IR Night Vision Up to ~2.5 m Field of View 129° H / 75° V Video Compression H.264, H.265, MJPEG Network 10/100 Mbps RJ-45, Wi-Fi 802.11 b/g/n Protocols TCP/IP, RTSP, IPv6, ONVIF Audio 1 mic, 1 speaker; echo cancellation + noise suppression Audio Codec G.711U/A, G.726, AAC-LC/LD, OPUS, G.722.1 I/O RS-485 ×1, Alarm In ×4, Lock Relay ×1 (30 V / 2 A), Door Contact ×1, Tamper ×1 Power PoE (802.3af) or 12 V DC Power Consumption < 10 W Operating Temperature –40 °C to +53 °C Protection IP65 Dimensions (Door) 181.6 × 103.6 × 29.5 mm Indoor Station OS / Memory Linux, 128 MB RAM / 32 MB Flash Display 7″ TFT, 1024 × 600, Capacitive Touch Network 10/100 Mbps RJ-45, Wi-Fi 802.11 b/g/n Protocols TCP/IP, SIP, RTSP I/O RS-485 ×1, Alarm In ×8, Relay Out ×2, TF Card Slot (≤128GB) Power PoE (802.3af) or 12 V DC Power Consumption ≤ 5 W Operating Temp. –10 °C to +50 °C Humidity 10%–90% Dimensions (Indoor) 175 × 113.5 × 21 mm KSh 28,900.00KSh 32,000.00Hikvision DS-KIS608-P 2MP IP Video Intercom Kit with 7″ Touch Monitor & Wi-Fi
KSh 28,900.00KSh 32,000.00 -

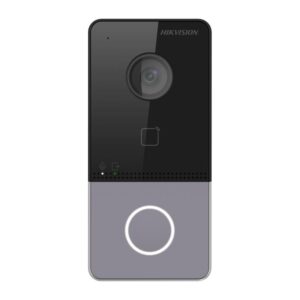

Hikvision DS-KV6113-WPE1-C 2 MP PoE / Wi-Fi Villa Door Station with MIFARE
Hikvision DS-KV6113-WPE1-C 2 MP PoE/Wi-Fi Villa Door Station with MIFARE
The Hikvision DS-KV6113-WPE1-C is a rugged IP villa door station featuring a 2 MP HD camera with IR up to 3 m, a built-in MIFARE card reader, PoE or 12 V DC power, 4 alarm inputs, and IP65 protection—ideal for secure residential access control.
Specification Detail Model DS-KV6113-WPE1-C Operating System Embedded Linux Memory 32 MB ROM / 256 MB RAM Video Resolution Main: 1920×1080, Sub: 640×480 Field of View 131° horizontal / 78° vertical WDR 120 dB True WDR IR Supplement Yes, up to 3 m Compression H.264, H.265, MJPEG Audio Mic Built-in omnidirectional Speaker Built-in loudspeaker Compression G.711 U / A, Opus, AAC-LD/LC, G.726, G.722.1 Bitrate 64 kbps Features Noise suppression, echo cancellation Capacity User Capacity 2,000 Card Capacity 10,000 (MIFARE) Network / Interfaces Ethernet 10/100 Mbps RJ-45 Wi-Fi IEEE 802.11 b/g/n Alarm Input 4 Exit Button 1 RS-485 1 Lock Control 1 relay, Max. 30 VDC / 2 A Door Contact 1 Tamper 1 General Call Button 1 (physical) Installation Surface mount Protection IP65 Working Temp. –40 °C to +55 °C Humidity 10% – 95% (no-condensing) Power Supply 12 V DC or PoE (802.3af) Power Consumption < 10 W Dimensions 138 mm × 65 mm × 27 mm Weight 0.190 kg KSh 13,000.00KSh 20,000.00Hikvision DS-KV6113-WPE1-C 2 MP PoE / Wi-Fi Villa Door Station with MIFARE
KSh 13,000.00KSh 20,000.00 -
Hikvision DS-KV8113-WME1-C 2 MP Wi-Fi / PoE Villa Door Station with MIFARE Reader
Hikvision DS-KV8113-WME1-C 2 MP Wi-Fi/PoE Villa Door Station with MIFARE Reader
The Hikvision DS-KV8113-WME1-C is an IP villa door station with a 2 MP HD camera, IR up to 3 m, a built-in MIFARE reader (10,000 cards), PoE or 12 V DC power, IP65 and IK08 protection, and support for up to 2,000 users.
Specification Detail Model DS-KV8113-WME1-C System Embedded Linux, 32 MB ROM, 256 MB RAM Camera Resolution 1920 × 1080p (1080p), 1280 × 720p (sub) Field of View (FOV) 124° horizontal / 75° vertical WDR Digital WDR, 76.9 dB IR Illumination Up to 3 m Video Compression H.264 / H.265 / MJPEG Audio Input Built-in omnidirectional mic Audio Output Built-in speaker Audio Codecs G.711 U/A, Opus, AAC-LD/LC, G.726, G.722.1 Audio Features Noise suppression, echo cancellation, adjustable volume User Capacity Up to 2,000 users Card Capacity 10,000 MIFARE cards Max Sub-Door Stations 16 Network Protocols TCP/IP, RTSP, IPv6, ONVIF Wi-Fi IEEE 802.11 b/g/n (2.4 GHz) Alarm Inputs 4 Lock Relays 2 × 30 VDC / 2 A Exit Buttons 2 Door Contact Input 2 RS-485 Port 1 Tamper Switch 1 Call Button 1 (physical) Mounting Surface/Flush Protection IP65, IK08 Operating Temp. –40 °C to +53 °C Humidity 10%–95% non-condensing Power Supply PoE (802.3af) or 12 V DC Power Consumption < 10 W Dimensions 174 mm × 91 mm × 29 mm Weight 0.37 kg KSh 17,250.00KSh 19,000.00Hikvision DS-KV8113-WME1-C 2 MP Wi-Fi / PoE Villa Door Station with MIFARE Reader
KSh 17,250.00KSh 19,000.00
Explore the collection
Video Intercom
Discover our latest video intercom products, selected for dependable performance at work, at home and on the move.
