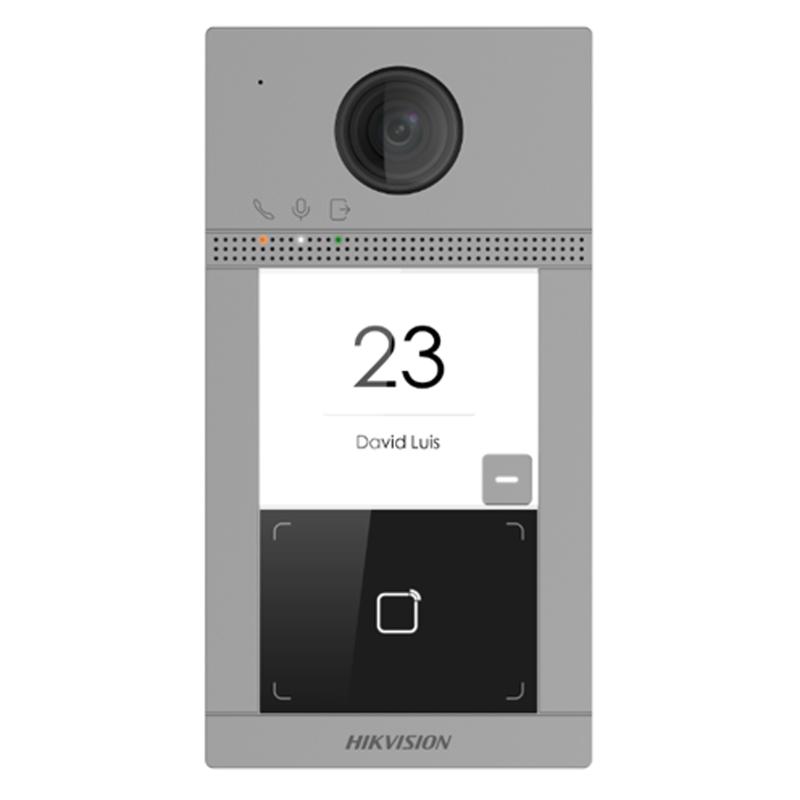

Hikvision DS-KV8113-WME1-C 2 MP Wi-Fi / PoE Villa Door Station with MIFARE Reader

Hikvision DS-KV8113-WME1-C 2 MP Wi-Fi/PoE Villa Door Station with MIFARE Reader

The Hikvision DS-KV8113-WME1-C is a rugged, high-performance IP door station designed for villa and residential video-intercom systems. Built with a 2 MP HD camera, it supports 1080p (1920 × 1080) video, ensuring crisp and clear footage for visitor verification.

For low-light environments, the station is equipped with IR illumination up to 3 meters, paired with digital WDR (76.9 dB) to balance lighting across bright and dark areas. The camera’s field of view is 124° horizontal and 75° vertical, capturing a wide area around your entryway.

This model offers flexible power: you can use Power over Ethernet (PoE, IEEE 802.3af) or a 12 V DC supply. Connectivity options include 10/100 Mbps Ethernet and Wi-Fi (2.4 GHz, 802.11 b/g/n)—making installation versatile.

Access control is built in via a MIFARE card reader (13.56 MHz), supporting up to 10,000 cards. The station’s capacity is also scalable: it supports up to 2,000 users and up to 16 sub-door stations.

It has robust I/O for access integration:

• 4 alarm inputs

• 2 relays for lock control (max 30 V DC / 2 A)

• 2 exit-button connections

• 2 door-contact inputs

• 1 RS-485 port

• Tamper detection built in

The station is built tough: the housing is made of aluminum alloy, rated IP65 for dust/water resistance, and IK08 for impact resistance. It’s designed to operate in extreme conditions (–40°C to +53°C) and supports 10–95% non-condensing humidity.

With embedded Linux, 32 MB of ROM, and 256 MB of RAM, the unit manages intercom functions efficiently. Audio is handled via a built-in omnidirectional microphone and speaker, with noise suppression and echo cancellation, and supports a variety of codecs (G.711 U/A, Opus, AAC-LD/LC, G.726, G.722.1).

Key Features:

• 2 MP HD camera with 1080p resolution

• IR night illumination (up to 3 m) + 76.9 dB digital WDR

• Wide 124° × 75° field of view

• PoE (802.3af) or 12 V DC power

• Metal housing, IP65 / IK08 protection

• MIFARE 13.56 MHz card reader (up to 10,000 cards)

• Up to 2,000 users and 16 sub-stations

• 4 alarm inputs, 2 relay outputs, RS-485, exit buttons, door contacts

• 2.4 GHz Wi-Fi + Ethernet connectivity

• Audio: built-in mic and speaker, echo/noise cancellation

• Extreme temperature operation: –40 °C to +53 °C
