Hikvision DS-KIS213 4-Wire HD Video Intercom Kit – 7″ Monitor + 720p Door Station

Hikvision DS-KIS213 4-Wire HD Video Intercom Kit – 7″ Monitor + 720p Door Station

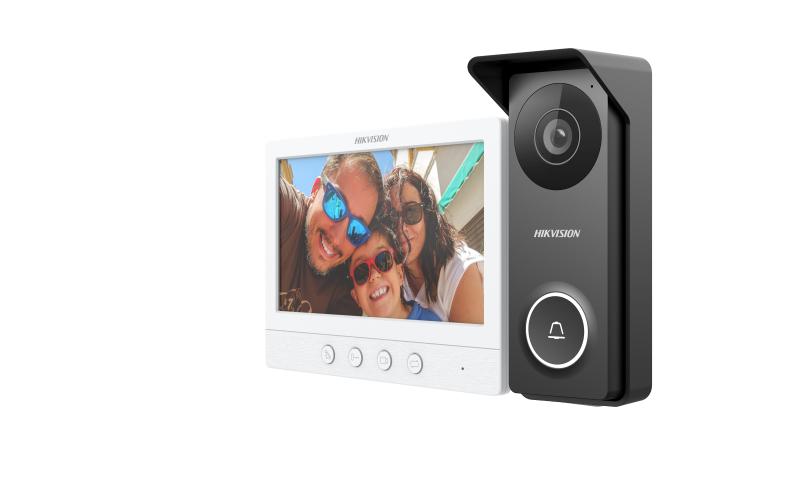

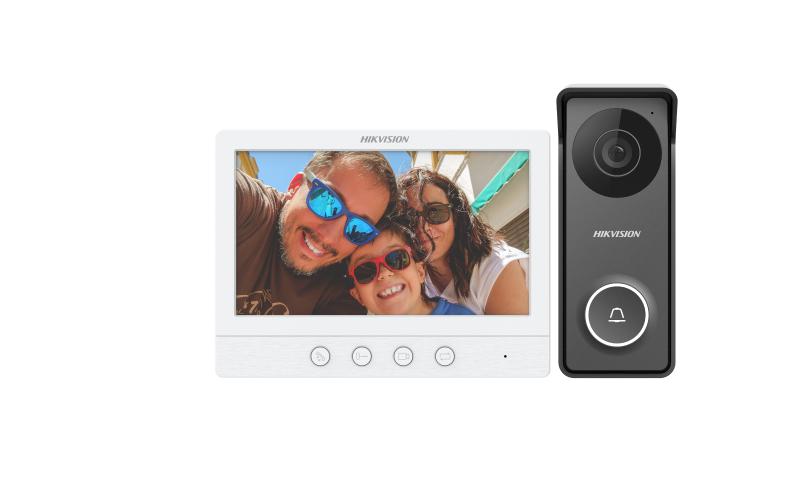

The Hikvision DS-KIS213 is a high-definition video intercom kit with a 4-wire analog design that offers reliable, plug-and-play communication for residential and small commercial applications. Built with a 7″ color TFT monitor, it provides clear video and intuitive control via four physical buttons.

Its door station delivers HD TVI-quality video (1280 × 720 @ 60 fps) and includes IR illumination up to 3 meters, enabling visibility even in low light. The camera’s field of view is wide—117° horizontal, 70° vertical, and 141° diagonal—giving a broad view of visitors.

Audio is handled via built-in omnidirectional mics and speaker on both units, enabling two-way communication. For access control, the door station includes a relay (max 30 V / 1 A) to control an electric lock.

The system supports a maximum of 2 door stations and 3 indoor monitors, giving flexibility for multi-point installations. Power is supplied via 12 V DC, and both units are low-power: door uses up to 4 W, and the indoor monitor uses ≤ 4 W.

Ruggedness is built in: the door station housing is IP65-rated (water & dust resistant) and IK08-rated (impact resistant), perfect for outdoor use. The operating temperature range is –30°C to +60°C for the door unit and –10°C to +55°C for the indoor station.

Installation is straightforward thanks to the 4-wire setup (2 wires for indoor extensions, 2 for doorphones).

Key Features:

• 7″ color TFT indoor monitor with 4 physical buttons

• HD TVI video on door station (1280 × 720 @ 60 fps)

• IR illumination up to 3 m for night-time visibility

• Wide field of view: 117° H, 70° V, 141° D

• Two-way audio: built-in mic and speaker

• Electric lock control via relay (30 V / 1 A)

• Supports up to 2 door stations + 3 indoor stations

• 4-wire installation—easy and reliable

• Weatherproof and vandal-resistant outdoor unit (IP65, IK08)

• Operates on 12 V DC with low power draw

• Rugged temperature range: –30 °C to +60 °C (door), –10 °C to +55 °C (monitor)
