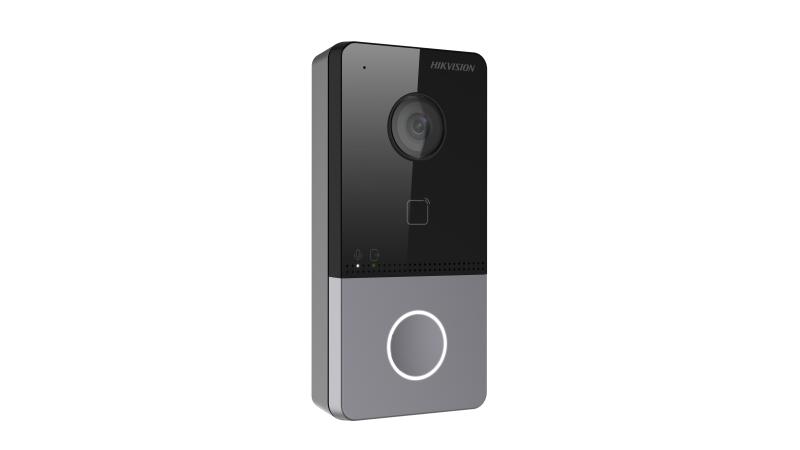

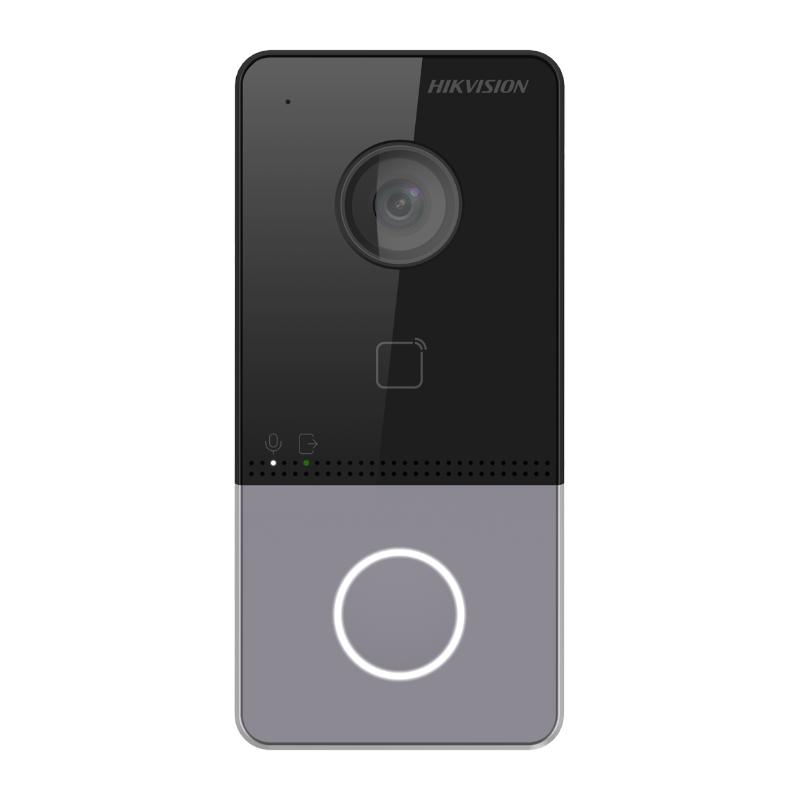

Hikvision DS-KV6113-WPE1-C 2 MP PoE / Wi-Fi Villa Door Station with MIFARE

Hikvision DS-KV6113-WPE1-C 2 MP PoE/Wi-Fi Villa Door Station with MIFARE

The Hikvision DS-KV6113-WPE1-C is a Pro-Series IP intercom door station engineered for modern residential access control. It pairs a 2 MP HD camera (1920 × 1080) with IR illumination, delivering clear video even at night.

The station supports both PoE (IEEE 802.3af) and 12 V DC, giving flexible power options. It’s built to last with an IP65-rated plastic housing, which resists water and dust ingress.

Connectivity is robust: you get 10/100 Mbps Ethernet plus Wi-Fi (802.11 b/g/n) for network integration. Video is compressed using H.264, H.265, or MJPEG and supports a wide dynamic range (WDR) of 120 dB for challenging lighting conditions. The camera’s field of view is 131° horizontally by 78° vertically.

On the audio side, the station has a built-in omnidirectional microphone and speaker, with noise suppression and echo cancellation to ensure clean voice communication. For access control, there’s a built-in MIFARE card reader that supports up to 10,000 cards.

The unit supports up to 2,000 users, making it scalable for larger residential installations. For I/O, it offers

• 4 alarm inputs

• 1 relay output (max 30 V DC / 2 A) for door lock control

• RS-485 interface

• 1 physical exit button

• 1 door contact input

• 1 tamper switch

Designed for tough climates, the DS-KV6113-WPE1-C operates from –40°C to +55°C, with humidity tolerance between 10% and 95% (non-condensing).

Key Features:

• 2 MP HD camera with IR light (up to 3 m)

• True WDR (120 dB) for balanced exposure

• 131° × 78° wide field of view

• PoE or 12 V DC power options

• Built-in MIFARE card reader—10,000 card capacity

• Supports up to 2,000 users

• 4 alarm inputs + RS-485 + relay output

• Wi-Fi and Ethernet network connectivity

• IP65-rated housing for outdoor durability

• Single physical call button

• Industrial temperature range: –40 °C to +55 °C
